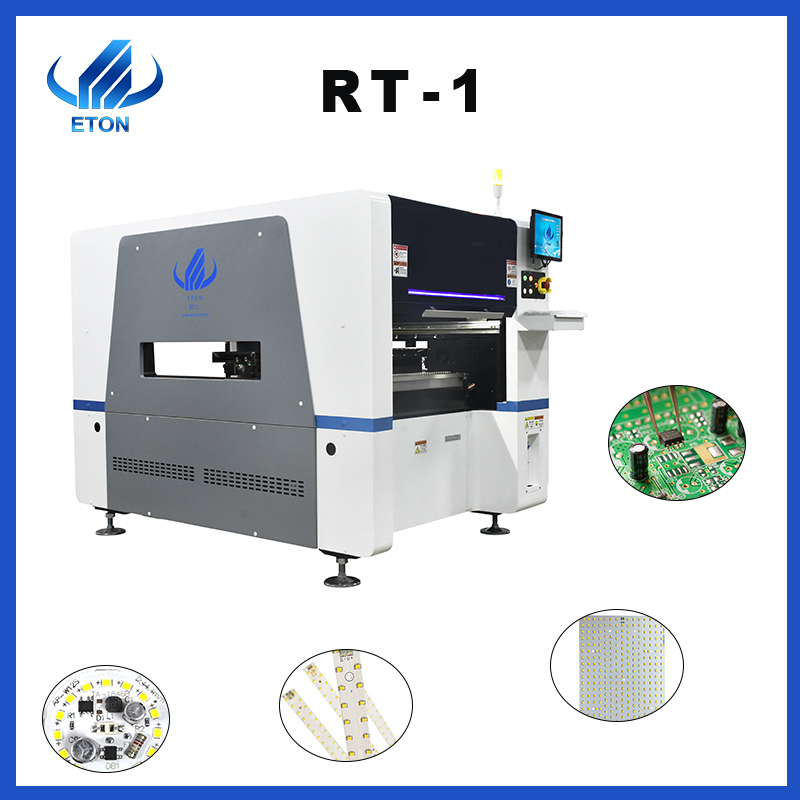

10 Heads led bulb smd making machine

10 Heads led bulb smd making machine

1.Single module magnetic linear motor multifunctional pick and place machine

2.Mounting components: LED chip, resistor, capacitor, IC, shaped components,etc

3.PCB length width: Max 450*350mm  Min 80*80mm

SKU: 926-2-1-1-2-1-2-1-1-1-1-1-1-1-1-2-1-2-1-1-2-2-1-1-3-2-1-1-1-1-1-1-3-2-1-1-1-3-1 Category: Tags: , , ,

Description

The advantages of RT-1



1.New model RT-1 has increased the number of feeder station from 32 PCS to 42 PCS. To some extent, It is improving production efficiency and saving labor.

2.Software:Independent research and development by ETON, free upgrade whole lifetime, saving costs.

3.It is applicable to the wider range of components, and can be mounted with resistors, capacitors, IC, bridge rectifiers, inductors, terminals, diodes, transistors, large-capacitance transformers, shaped components.

4.The head structure is independent research and development by ETON, the structure and material are unique. and the mounting height is adjustable,up to 20 mm. It can be applied to many high DOB components and has wider range of applications.

5.The X axis uses high-end magnetic linear motor, which has higher accuracy and faster speed. Each head of Z axis is independently controlled by servo motor to ensure accurate mounting.

Technical Parameter of SMT Machine

Length

1200 mm

Width

1930 mm

Height

1500 mm

Total weight

2000 kg

PCB Length width

Max: 450*350 mm Min: 80*80 mm

PCB Thickness

0.1-6 mm ( If <0.6 mm need jig)

System

Windows 7

Display

Touch screen monitor

Input device

Keyboard, mouse

Transmission speed

1000 mm/sec

Mounting precision

±0.04 mm

Transmission direction

Single( left→right or right →left )

No. Of feeders station

32 PCS

No. Of head

10 PCS

Operating environment

23℃±3℃

Power consumption

4 KW

X, Y, Z Axis drive way

High-end magnetic linear motor and serve motor

Feeding way

Electric feeder with double motor

RT-1 semi-automatic production line

Solder paste printing machine,conveyor, Pick and Place machine, reflow oven.



Application



Bulb light、DOB bulb、Display、Electric board、Power driver、LED chip board、Wall light、Street light etc.



Certification:

We got 9 invention patents, 112 practical patents,12 software patents.

We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as “Well-know brand” and many technology patents, and have rich experience(more than 8 years) in LED light production line program.

Package and Delivery of Pick and Place Machine:

Package advantages



Filming packing:Make the machine sanitary, clean, sealed packaging, dust and humidity; have good shock resistance, impact resistance, and good protection performance with tightness and fixity.



vacuum packing:Advantages of moisture proof,dust proof and so on.



wooden packing: It has good cushioning performance, corrosion resistance, high strength and hygroscopicity, moisture-proof and earthquake-resistant functions.
