12 Heads smt mounter machine

1.Single module magnetic linear motor multifunctional pick and place machine

2.Mounting components: LED chip, resistor, capacitor, IC, shaped components,etc

3.PCB length width: Max 450*350mm  Min 80*80mm

Description

Product description

HT-E8S is single module magnetic linear motor multifunctional pck and place machine,. It has 2

PCS camera ,which is1 PCS MARK camera and 1 PCS flight recognition camera.MARK camera is

make the PCB mounting program by scanning the mark point as the benchmark. Flight recognition

camera is take photos of the components absorbed by the head, compare the previous mounting

procedures with the mark camera, and calculate whether it is necessary to correct the components

through compensation.



Dimension 2550*1650*1550mm
Weight 1700kg
PCB length width 1200*500mm 100*100mm
PCB thickness 0.5~5mm
PCB clamping pneumatic
Mounting mode group picking and separately placing,separately picking and separately placing
NO.of camera 2 PCS
Mounting precision ±0.04mm
Mounting speed 45000CPH
NO.of feeders station 64PCS

Main feature

  • Magnetic linera motor multifunctional pick and place machine.
  • Vision alignment flight identification, MARK correction.
  • Auto-optimization after coordinates generated,etc
  • Application: Power driver.electric board.lens.DOB bulb.linear bulb.household appliance etc.
  • Non-stop material re-loading function.

Detail description

Mounting head

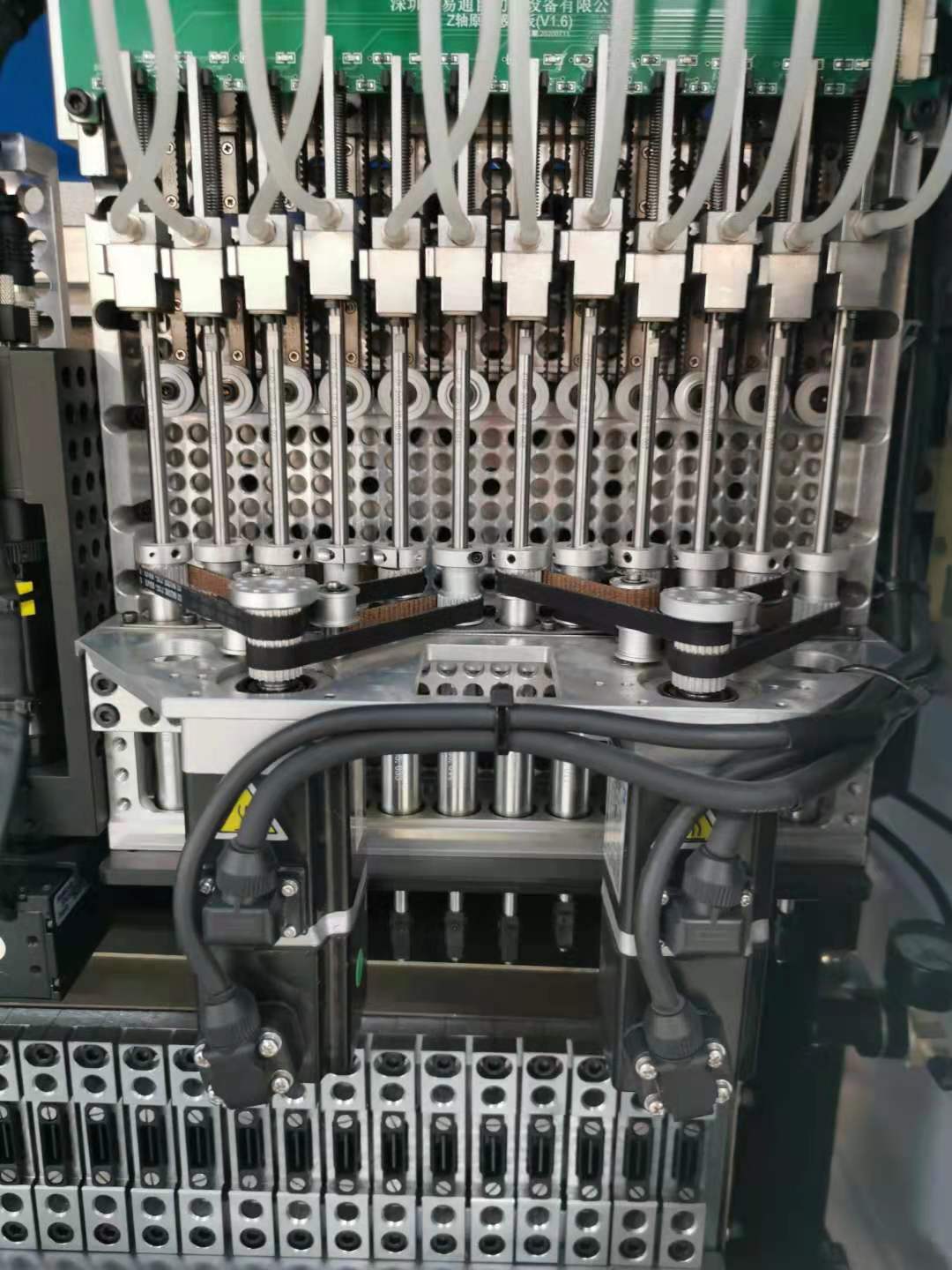

10 PCS nozzles can group picking and separately placing,seprately picking and separately placing,Because each head is controlled by an independent motor.The mounting head can high speed and accurate mounting lens, LED chip, capacitors, resistors, shaped components.

Guide rail

It is used to support and guide the moving part and make high-precision reciprocating motion in the specified direction.

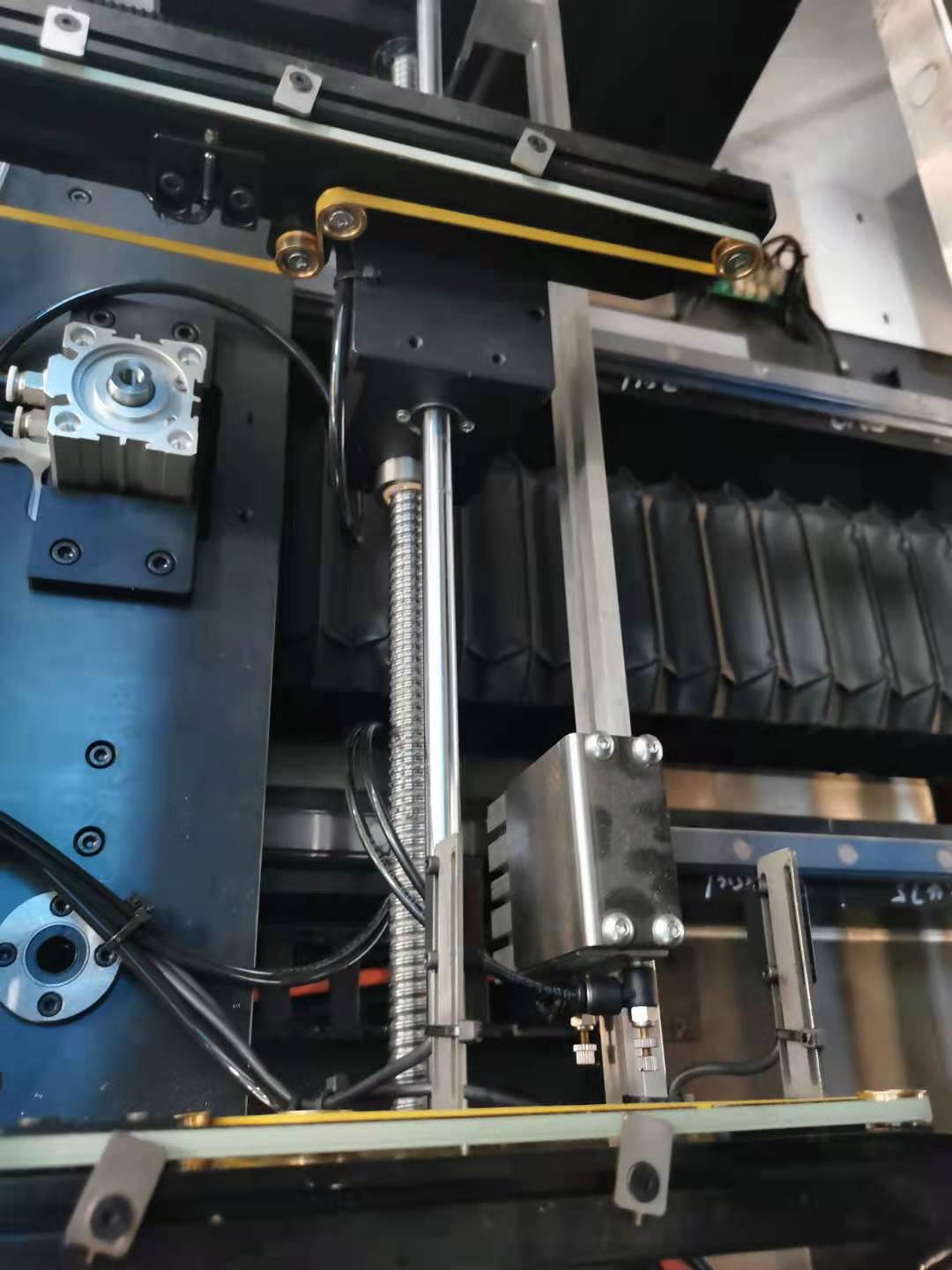

Srew rod

The function of the screw rod is to convert the rotary motion of the servo motor into linear motion, so as to drive the mounting head to move back and forth on the linear guide rail to mount components.

Production line

Packing&delivery

Our campany use vacuum packaging and wooden cases to arrive at the port you require by truck airplane and ship.
