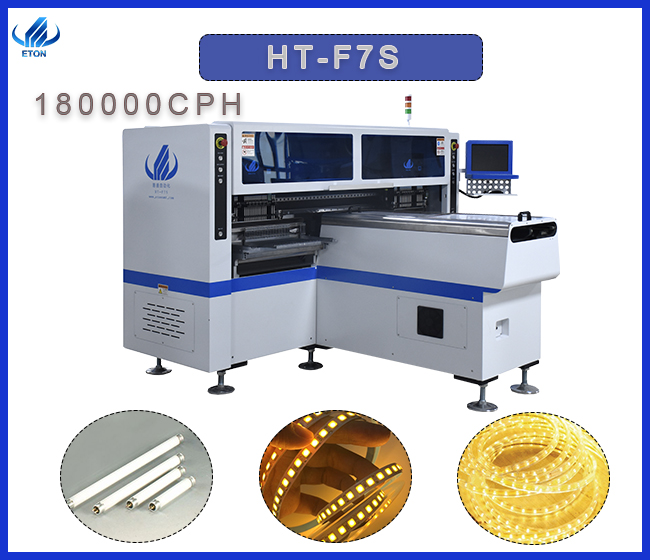

18k tube flexible strip making Pick and place machine

*Dual arm professional high-speed SMT machine.

*Producing 2-4 types materials at the same time.

*Vision alignment ,Mark correction.

*The mounting speed can reach 180000CPH.

SKU: 926-2-1-1-2-1-2-1-1-1-1-1-1-1-1-2-1-2-1-1-2-1-1 Category: Tags: , ,

Description

F7s introduction

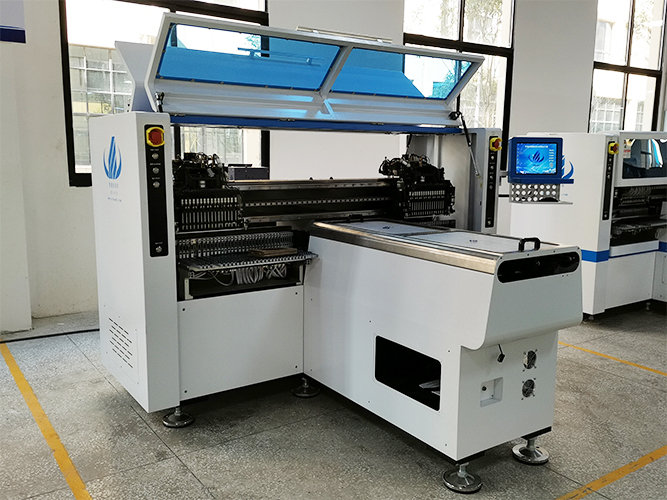

Ht-F7s is a high-speed dual arm special placement machine, which is the best of high-speed machines. The placement of 2-4 kinds of materials at the same time does not affect the high production capacity. It is suitable for 0.6, 0.9, 1.2 meter hard light plate and half meter one meter soft light belt. Special for both arms. The mounting head is divided into left and right groups, with 17 suction nozzles in each group, a total of 34. 68 Feida. The lamp tube and lamp belt described above are specially pasted. High speed: the optimal production capacity per hour is 180000 CPH. It has its own correction function and can be pasted with RGB. It has an exclusive patented technology: group taking and separately placing.

Technical parameter

Dimension

Length

2700mm

Width

2300mm

Height

1550mm

Total Weight

1700kg

PCB

PCB Length Width

Max:1200*330mm  Min:100*100mm

PCB Thickness

0.5-5mm

PCB Clamping

Adjustable pressure pneumatic

Mounting Mode

Group picking and separately placing

O.S.

System

Windows7

Software

R&D independently

Display

Touch screen monitor

Input Device

Keyboard, Mouse

Vision System

No. of Camera

5 sets ( Digital camera)

Vision alignment, MARK correction

Repeat Mounting Precision

±0.02mm(Repeat precision)

Mounting Height

≦5mm

Mounting Speed

150000~180000 CPH

Components

LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.

Components Space

0.5mm

Power

380AC 50 HZ

Power Consumption

6kw

Operating Environment

23℃±3℃

Conveyor Transmission

Max Length :1200 mm

Transmission Speed

>500mm/sec

Transmission Direction

Single(left→ right or right→ left)

Transmission Mode

Online drive

Positioning way

Optical

Air supply

0.4-0.6mpa (4-6kgf/cm²) 150N/min

Electrical control

Independent research and development by ETON

Motion control card module 1 set

Independent research and development by ETON

X,Y,Z Axis Drive way

High-end magnetic linear motor+ Servo motor

Feeding System

No. of Feeders Station

68 PCS

No. of head

34 PCS

Feeding way

Electric feeder with double motor

SERVICE

Our service can be divided into three parts: pre-sales service, in-sales service and after-sales service:

  • Pre-sales service can be called professional product consultation. If you are particularly familiar with the patch machine industry, we have special technical consultants to answer the technical questions you want. If you want to move into this industry, we also have special personnel who can provide some information about the patch machine to make you more familiar with the pick and place machine
  • Service in sales refers to that you have paid a deposit in advance, and after the production of your products, we will regularly share the progress of product production with you. Of course, if you have other requirements during this period, you can also say it, and then we will make your expectations for the products.
  • After sales service refers to all the services we provide when you receive the products. We have a special after-sales department to serve you, such as guiding installation, training employees, regular follow-up, sharing industry information and so on.

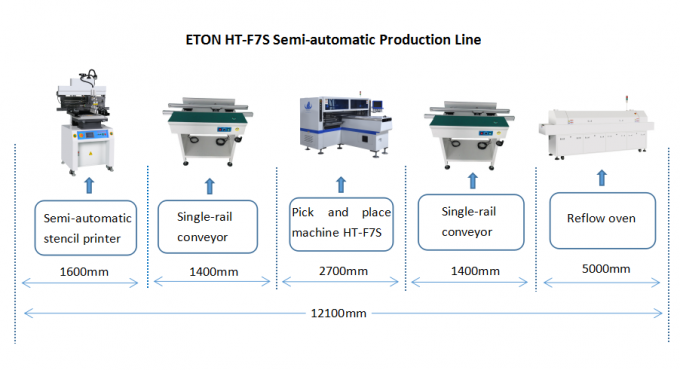

SMT LINE

 FAQ

Q:What is the delivery date?

We will deliver the goods after 30 days’ deposit.

Q:Is electrical control developed independently?

Yes, the electrical control is by ourselves and have exclusive patent technology.

Q:Are you a manufacturer or trading company?

manufacturer. We have our own industrial park
