500000CPH highspeed flexible strip making mounter

●Flight recognition camera,no pause to detect the presence or absence of components,component adsorption state,prevent placement errors

●Automatic production with identification data,correction and fill missing component automatically.

●The clamping rod is driven by the air cylinder to correct the materials taken by mounting head.

●With the function of flling missing component automatically, realize Industry 4.0 Unmanned Workshop.

●Compliant with CE standards.

Description

500000CPH highspeed flexible strip making mounter

Feature of machine

1.ETON tech adjustable placement head

2.Unique design component leaking detection and individual component refill function

3.Ultra-high-speed capacity

4.Flight recognition camera, no pause to detect the presence or absence of components, component adsorption state, prevent placement errors.

500000CPH highspeed flexible strip making mounter

main parameter

PCB size

250(±10)mm*any length

PCB thickness

0.1-0.5mm

Mounting mode

Double rail+ Four groups of placement heads

Mounting way

Group picking and group placing

Mounting speed

500000CPH

X,Y,Z axis drive way

High-end magnetic linear motor+servo motor

No.of head

Double side: 136PCS

Feeding way

Intelligent electric feeder with double motor



Certificates

We got 9 invention patents, 112 practical patents,12 software patents.

Clients Projects

100M Strip Light SMT Production Line

ETON helped the client to plan the 100M production line, including the patch production

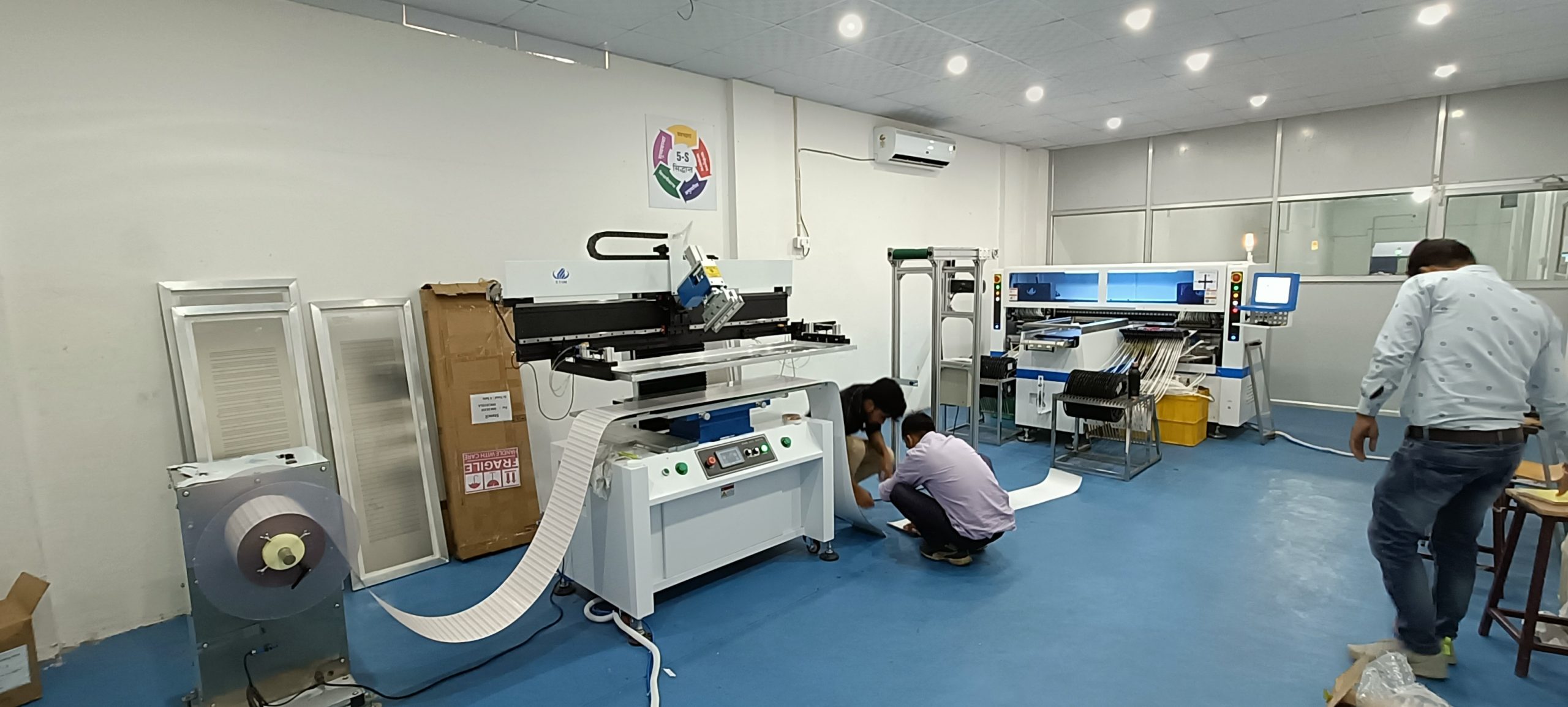

line: PCB loader-semi-automatic printing machine-The buffer stage-high-speed pick and place machine – 24M assembly line – reflow oven – PCB unloader, and also planned 24M test line, sub-board line, coating production line. The client put into production in 2021, and the production situation is very good. ETON technicians installed the machine in the client’s factory, planned the wiring, tested the production, and trained the client’s engineers. The client’s project was very successful, becoming one of the few in India that can provide 100M without wires. The factory for the production of all flexible light strips is very competitive, and now is planning add a new SMT production line with ETON to expand production and LED product categories.



FAQ

Q:This is the first time I use this kind of machine, is it easy to operate?

A: There is english manual or guide video that show you how to use machine.

   If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.



Q: What are the main LED products our machines for?

A: There are different machines in our company and different machines apply to different LED lights. The main products we can apply:bulb tube strip lamp panel. Down light,streetlight,ceiling light.wall washer light and so on.



Q: Do our machines only for LED lights?

A: No,our machines apply to not only LED light but also other products. Such as power driver, electric board, display, etc.



Q: Do you have oversea after sale service?
A: We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support.Abroad, we have India office, Indian engineer, Egyptian engineer and Egyptian engineer , etc.
