80000CPH 0201 Circuit board smt mounter
Description
Feature
1.High speed universal integrated mounting head, applicable to 0201 ultra small chip, corresponding to 40*40 large components, with a large range
2.Improve the identification performance. The size of corresponding components is 40*40mm for high-speed mounting. BGA and CSP can be identified
3.It can identify components with size less than 40*40mm and height less than 20mm with high speed and precision
4.The station location of the bilateral feeding platform is 32pcs, which can be loaded with 64 trays. The trolley can be replaced in one touch to minimize the change time
5.It supports YT series universal double head intelligent feeder. When sucking, it can realize stable, accurate and high-speed feeding through optical correction of feeding position
6.Support multi-layer pallet (IC backpack), which can be installed alternately with the feeder trolley quickly and easily
The Technical parameter
|
1. PCB |
|
Suitable for max PCB size is 500*450mm, mini size is 50*50mm PCB using cylinder clamping, track width adjustable for clamping The Rail 1 is fixed but other is flexible The PCB thickness is 0.5-4.5mm |
|
2. Camera |
|
The No.of camera is 4 sets digital camera, head flight vision recognition component, vision alignment, mark correction |
|
3. Precision |
|
The repeat precision is ±0.02mm, support for 0201-40*40 IC |
|
4.Component Range |
|
Mini 0201-40*40mm package and IC, apply to BGA, CSP etc. Max mounting height is 20mm |
|
5.Mounting speed |
|
The optical speed is 80000 CPH with 20 mounting heads |
Producction Line

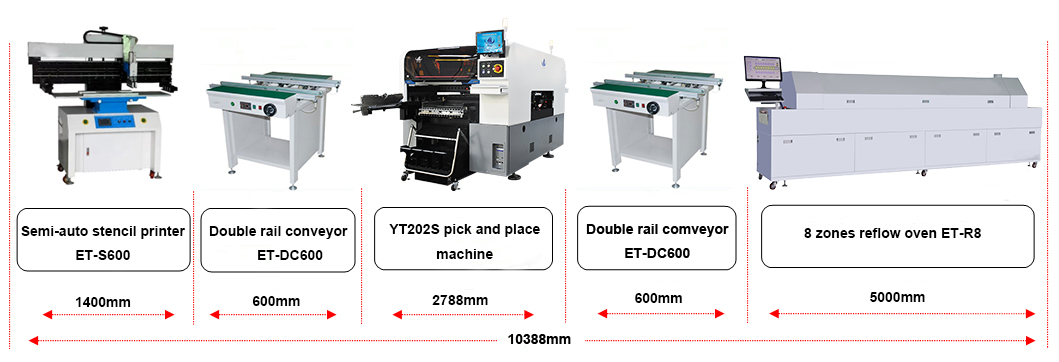

Introduction to machine functions of SMT production line
|
Product Name |
function |
|
Semi Stencil printer machine |
A device that leaks solder paste or patch glue onto the PCB pad to prepare for component welding |
|
Conveyor |
It is used for the connection between SMT production lines. It can also be used for buffer, inspection, test of PCB or manual insertion of electronic components |
|
Pick and place machine YT202S |
Accurately install the surface assembled components to the fixed position of PCB |
|
Reflow oven |
Melt the patch adhesive so that the surface assembled components and PCB board are firmly bonded together |
FAQ
Q:What is the delivery date?
We will deliver the goods after 30 days’ deposit.
Q:Is electrical control developed independently?
Yes, the electrical control is by ourselves and have exclusive patent technology.
Q:Are you a manufacturer or trading company?
manufacturer. We have our own industrial park
