Main Feature

• English interface option, easy to operate
• CCD positioning system, visual positioning compensation automatically, correct the deviation of PCB.
• Large size track, suitable for different size of PCB.
• Contactless high speed injection dispensing head, dispensing glue continously with high efficiency.
• Intelligent dispensing head ensure good performance , high efficiency and lower glue wasting .
• Full time monitoring of glue volume, autoprompting low glue volume .
• Dispensing head constant temperature function, ensure the glue in liquid.
• Control the dispensing value in milliseconds, ensure the conformity of glue volume.
• Online visual programming,more convinent.
• Automatic program standby, start up production rapidly, intelligent manufacturing .
• Apply to various kinds (round, linear, lattice etc.) of products.
• High performance linear motor drive for X,Yaxies, ensure high accuracy in high speed.
• Universal signal connecting, connect equipment online easily.
• Large capacity SSD industrial control system ,high speed access ensures system response speed.

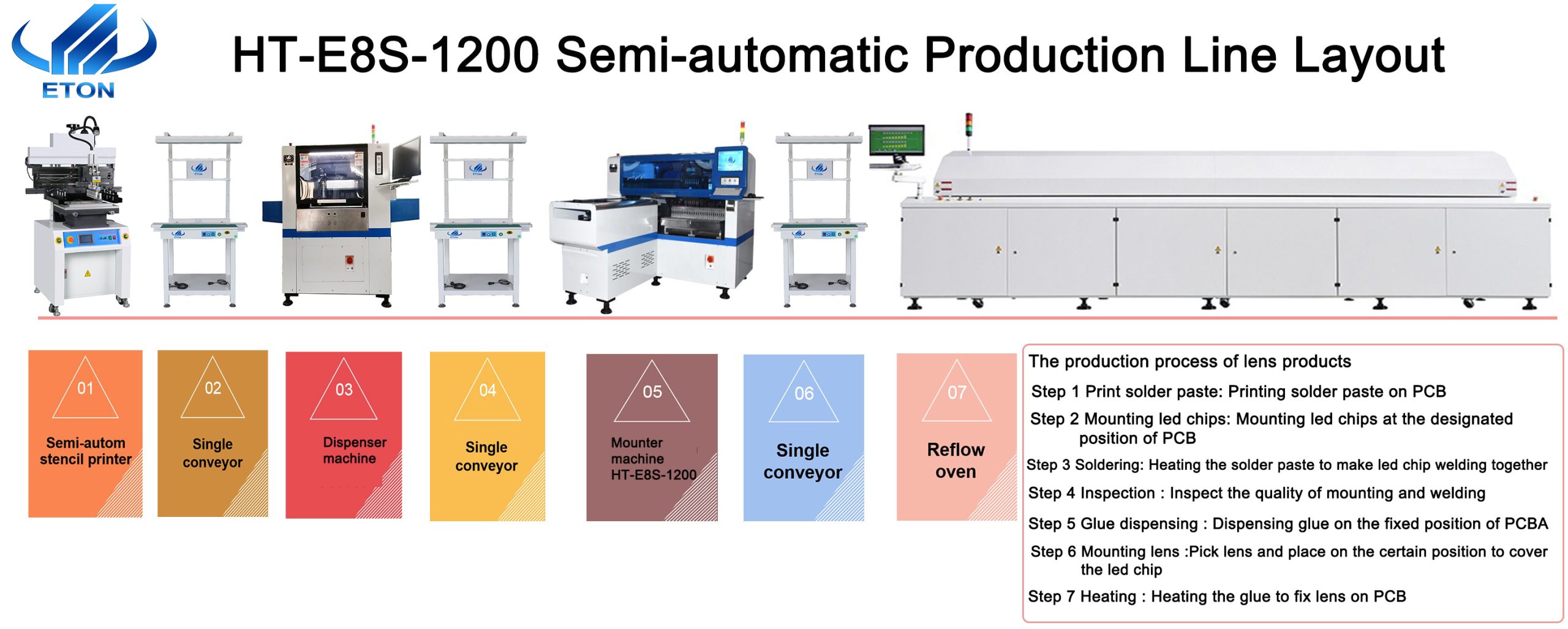

SMT Line

The dispensing machine exists for mounting the lens, and there will be some wiring adjustment when used with the mounter.

General steps for lens production:

Lens production can be divided into two steps, the first step is to mount the lamp beads, and the second step is to mount the lens

Lamp bead line: semi-automatic printing machine prints PCB board, transfer by connecting platform, Mounter pastes lamp bead components, and reflow soldering furnace welding.

At this time, you will get a PCB board with only light beads, put it in the dispenser and start to produce lenses

Lens line: the dispensing machine dispenses the glue, the docking station transmits it, the mounter pastes the lens, and then passes through the reflow soldering furnace to obtain a complete PCB

Maintenance period 1 year

One year warranty, during warranty, any parts that need to be repaired and replaced will be free.

Software and hardware lifetime maintenance

Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.

Visit customers regularly and gather information

Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.

Provide the latest information about technology and equipment

We give professional technology suggestions to our clients. And share the updated news with our clients.
