T9-2S Machine belongs to the Value series from ETON, High speed integrated mounting head, suitable for the production of 5m, 10m, 50m, infinitely long roll to roll soft lamp tape, and supports band loading led3014 / 3020 / 2835 / 5050 or resistance, capacitance, bridge pile, etc,The optimal production capacity can reach 500000 CPH.
Automatic LED Assembly SMT Mounter
Description
Automatic LED Assembly SMT Mounter
Machine Features
1.Component picking position can be adjusted according to PCB pad pitch,min 6.5mm. Apply to LED 3014/3020/2835/5050 resistor , capacitor, bridge rectifier etc.wide component range.
2.Unique Design Component Leaking Detection And Individual Component Refill
Function :Recognition camera record the component leaking position of PCB,and fill the missing component accordingly.
3.The placement head adopt the method of two times picking and once placing. The placement time greatly minimized with the improved placement way, excellent optimum capacity reach 500000CPH.
4.Adjust the conveying platform according to various roll to roll strip, range 250±10mm,the max length range is 1m per cycle.
5.136 placement heads, adopted group picking and group placing,so as to realize the function of two time picking and once placing.
6.Adopted Intelligent electric feeder with double motor feeding way.
Automatic LED Assembly SMT Mounter
Machine main parameter
|
Model |
T9-2S |
|
Dimension(L*W*H) |
3454*3035*1777mm |
|
Weight |
3100kg |
|
PCB length width |
250mm(±10)*any length |
|
PCB thickness |
0.5~0.5mm |
|
Mounting way |
Group to picking and group to mount |
|
Mounting mode |
Double rail+four group of placement heads |
|
Mounting height |
≤5mm |
|
No.of camera |
10PCS |
|
Vision alignment, Mark correction |
|
|
Components |
LED 3014/3020/3528/5050/and resistor,capacitor, bridge rectifiers etc. |
|
Power consumption |
9.6KW |
|
Optimum Mounting speed |
500000CPH |
|
No. Of feeders station |
Double side:136 PCS(single side:68pcs) |
|
No. Of head |
Double side:136 PCS(single side:68pcs) |
|
X,Y Axis drive way |
High-end magnetic linear motor+Servo motor |
|
Feeding way |
Intelligent electric feeder with double motor |
Company profile
ETON mission: professionalism, excellent technology, sharing results.
ETON goal: to create a national brand and build an international Chinese enterprise.
ETON purpose: to create value for customers and create benefits for the society.
ETON vision: determined to become the world’s most competitive manufacturer and service provider of pick and place machine and high-end electronic testing equipment.
Related machine

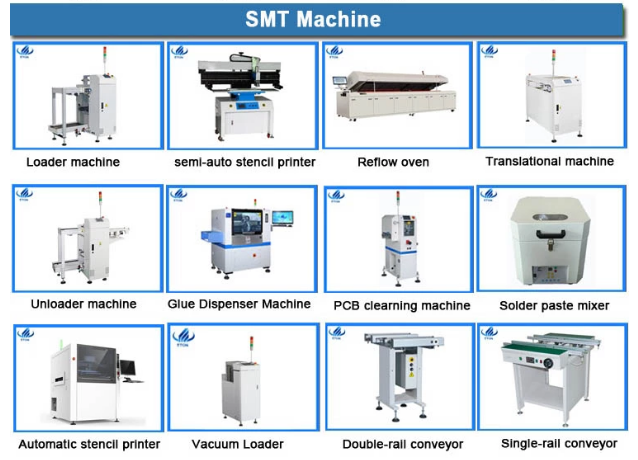

In the SMT industry, we are professional, we are not only a leading manufacturer of placement machines, but also a manufacturer of some peripheral equipment, we can also provide you with some other SMT machines, such as printer machine,conveyor,dispenser machine, reflow over, etc.
