Single module and 1 mounting head, total has 12 heads, each head is independently controlled by one servo motor;

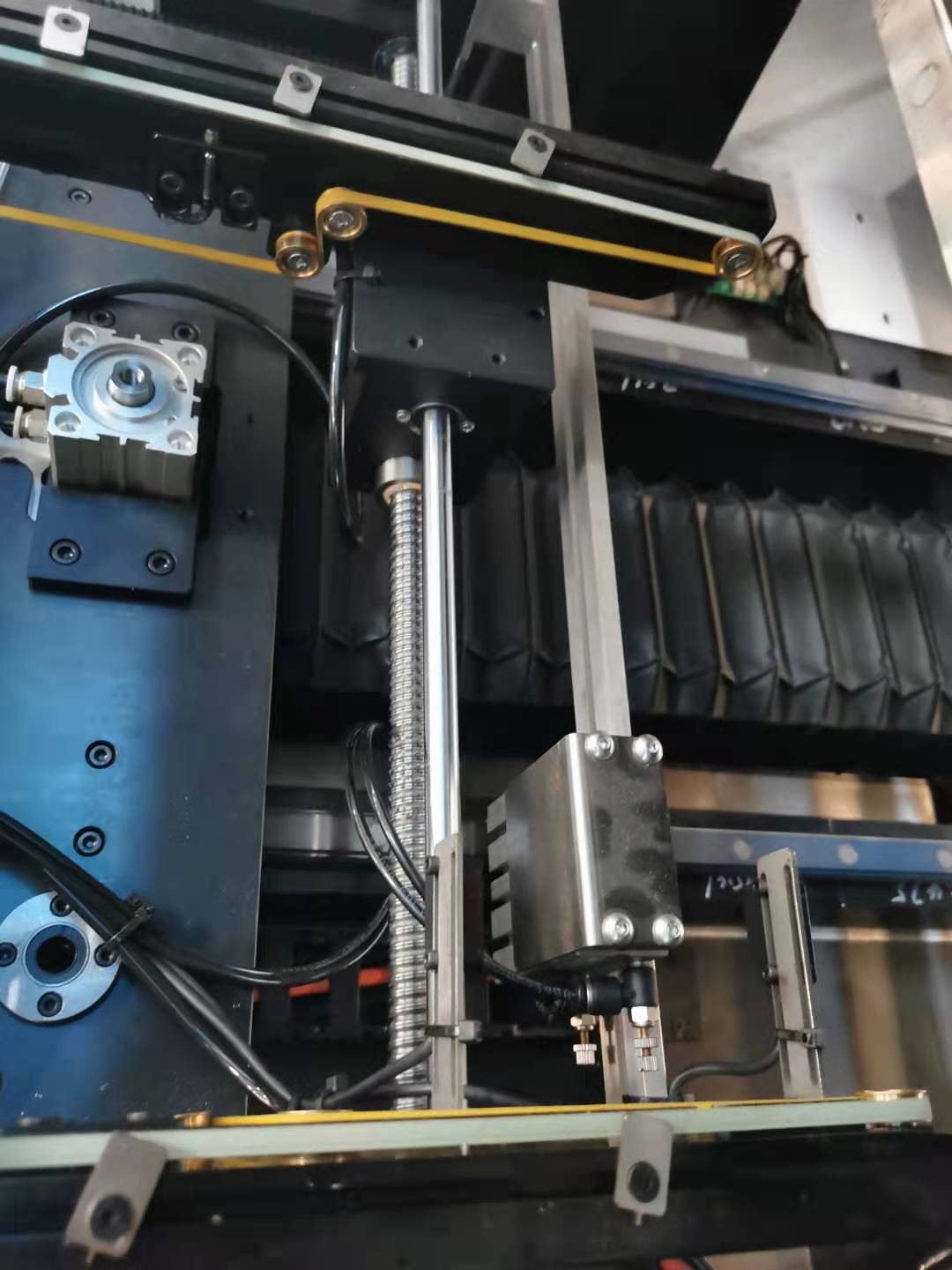

The X,Y,Z Axis drive way adopts the magnetic linear motor and servo motor, which can ensure the high accuracy and precision of mounting;
The feeding way is Electric feeder with double motor;
the advantages of SMT machine
Single module and 1 mounting head, total has 12 heads, each head is independently controlled by one servo motor;
The X,Y,Z Axis drive way adopts the magnetic linear motor and servo motor, which can ensure the high accuracy and precision of mounting;
The feeding way is Electric feeder with double motor;

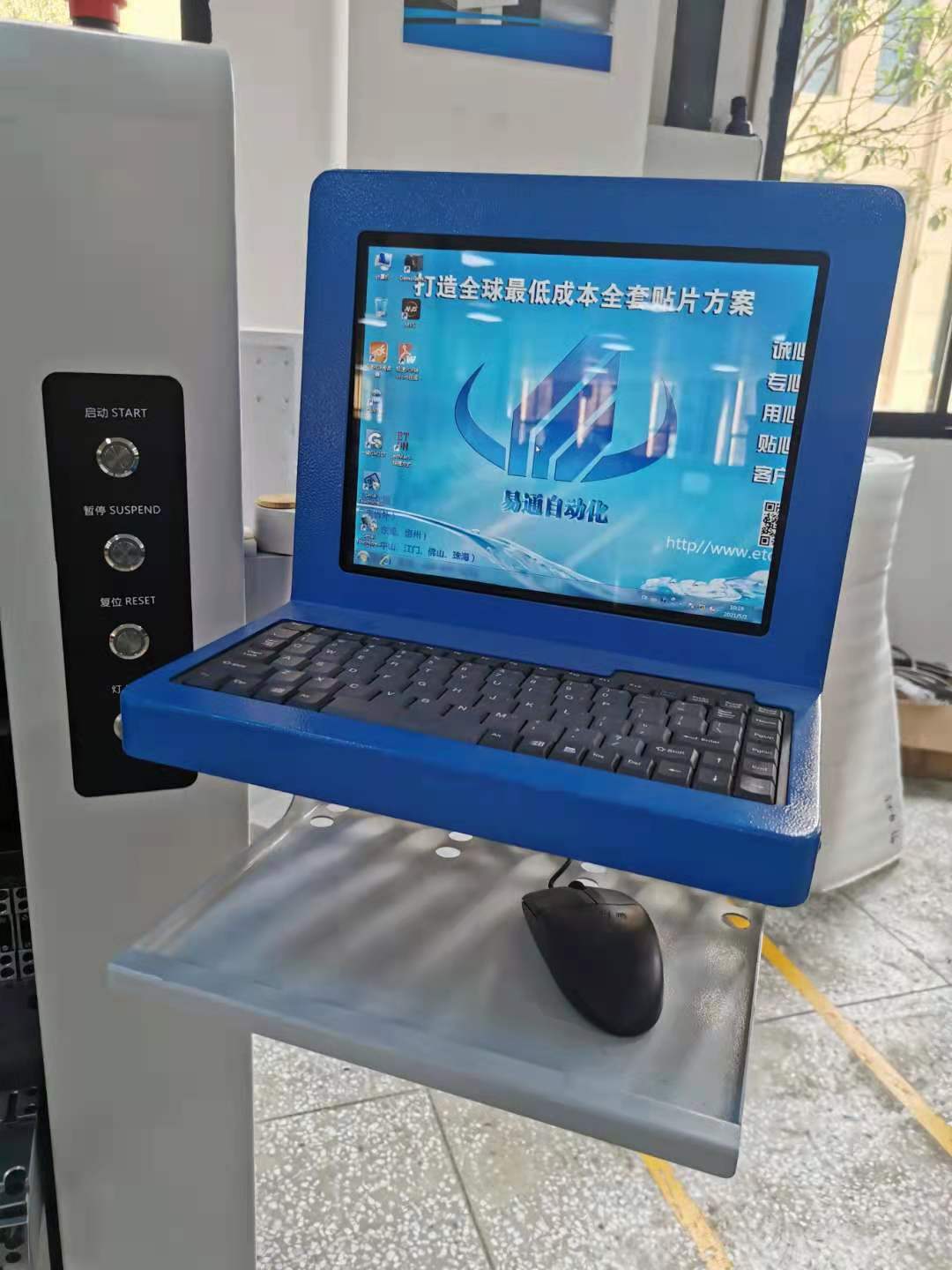

the software is R&D Independently and provide free upgrade whole time, also have two language version-Chinese and English.
Technical parameter of SMT machine
|
HT-E8S-1200 |
|
|
PCB Thickness |
0.5-5 mm |
|
Transmission speed |
≤1000 mm/sec |
|
Conveyor transmission |
Max length: 1200 mm |
|
Mounting precision |
±0.04 mm |
|
Component space |
0.2 mm |
|
Power consumption |
4 KW |
|
No. Of feeders station |
28 PCS |
|
No. Of head |
12 PCS |
|
X, Y, Z Axis drive way |
High-end magnetic linear motor and serve motor |
|
Feeding way |
Electric feeder with double motor |

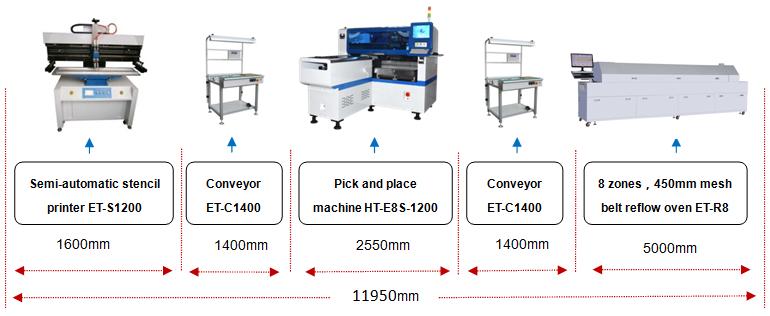

The semi automatic Production line of SMT machine
Semi-automatic production lines will be more flexible, easy to check and manual insertion of components, without affecting the work of other steps before and after
Company profiles
in 2011, ETON was born, and now, ETON has 11 years experience; With the continuous development, ETON has its own INDUSTRIAL park, including 7 buildings, more than 500 excellent manufacturing workers. The industrial park covers an area of more than 52,000 square meters and has production workshops with strict standards. So far, ETO has developed a number of series of SMT machines independently, including high speed pick and place machine, multifunctional pick and place machine and honor series pick and place machine. ETON also has SMT peripheral equipment which are provided to clients. Products are exported to more than 20 countries and regions.
Exhibitions
Since its establishment, ETON has been actively participating in various exhibitions at home and abroad, so that people around the world can witness the growth of ETON, as well as various enterprises in the banking industry can witness the progress of ETON.
Clients and customer’s factory
As a leader in SMT industry, ETON has always been committed to creating SMT production lines for customers and providing them with high-quality products and worry-free services. We believe that we will help more companies in the future, for the SMT industry, lighting industry, electronics industry and other industries to make their own contributions.
Maintenance period 1 year
Software and hardware lifetime maintenance
Visit customers regularly and gather information
Provide the latest information about technology and equipment
On-site service
