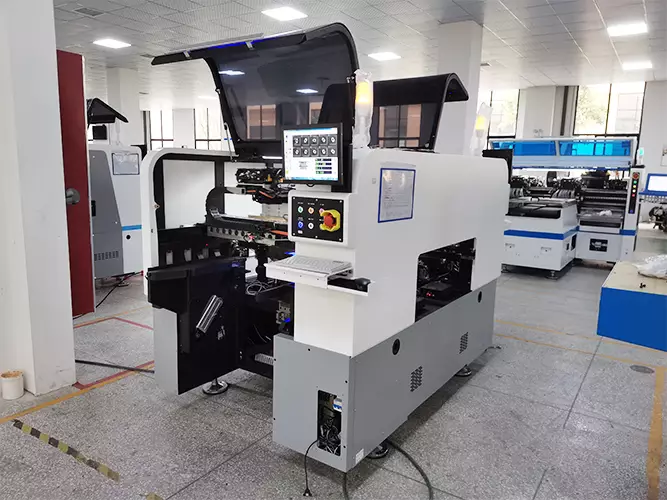

- Single module magnetic linear motor multifunctional pick and place machine.
- Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
- Component: Min. Size 0402, Max. Height 15mm.
- Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.
CIRCUIT BOARD MAKING MACHINE APPLY TO 0201
Description
Machine features
1.Greatly upgrade the “high-speed universal integrated mounting head”, which has high productivity and versatility
2.There is no need to replace the mounting head, and it supports 0201-10mm packaging materials and IC materials
3.40 suction nozzles, each controlled by an independent servo motor
4.Double headed, double track, the maximum PCB size is 500*450mm
5.The company can achieve 120000cph under the optimal conditions
Technical parameter
|
PCB |
|
|
PCB size(L* W) |
Max size:500mm*450mm(single PCB) 500mm*300mm(double PCB) Min size: 50mm*50mm |
|
PCB thickness |
0.5-4.5mm |
|
PCB clamping |
Cylinder clamping, track width adjustable |
|
Rail |
2 Rail,2 gantries(Rail 1,4 are fixed rail) |
|
System |
Windows 7 |
|
Software |
R&D independently |
|
Production management MES system |
Customized(Option) |
|
Off-line programming |
Available |
|
No. of camera |
4 sets ( Digital camera ) |
|
Bottom vision camera recognition |
|
|
Vision alignment+Mark correction |
|
|
Repeat precision |
+ 0.02mm |
|
Mounting height |
6mm |
|
Mounting speed |
120000CPH (Optimum speed) |
|
Components range |
0201~10mm Min 0201 packagesand IC etc. |
|
Power |
380AC 50HZ 6KW |
|
Operating environment |
23°C±3°C |
|
Transmission direction |
Standard: Single direction |
|
Transmission mode |
Online drive |
|
Position mode |
Optical |
|
Air consumption |
0.4-0.6mpa ( 4-6kgf/cm2) 150N/min |
|
Electrical control |
Independent research and development by ETON |
|
Motion control card module 1 set |
Independent research and development by ETON |
|
X,Y,Z Axis drive way |
High-end magnetic linear motor +Servo motor |
|
No. of Feeder station |
Double side docking cart slot 32PCS,tape reel packages:64PCS(single side docking cart slot 16PCS,tape reel packages:32PCS) |
|
No. of Heads |
Double side:40pcs(single side:20pcs) |
|
Feeding way |
Intelligent Double head Feeder |
Component introduction
magnetic linear motor
lHere is the high-precision magnetic linear motor, which is used to improve the stability, speed and accuracy of machine placement. Our magnetic linear motor uses Israeli technology.
Grating scale
lThis is Grating scale, It is a detection device, which determines the accuracy of the head placement to a certain extent.
This Grating scale is RENISHAW/MicroE brand, from the UK and America.
Drag Chain
lThis is Drag Chain, The function is to protect the wires from abrasion and prolong the service life of the machine. It is made in Germany —- IGUS brand.
CAMERA
Our YT402 pick and place machine has 4 cameras, It is a flight recognition camera and the Mark camera. This is the flight recognition camera, and this is the Mark camera. Their role is to improve The accuracy of machine placement. This is also one of the reasons why our multifunction machines can mount precision components.
MOUNTING HEAD
Look here, each placement head of this multifunctional machine is controlled by an independent servo motor, which can mount different components.
guide rail
This is the guide rail, our PCB board is transported in from here. It comes from Japan, THK brand.
industrial computer
This is our industrial computer, EVOC brand, which is the TOP-2 Brand in the world. It is touch screen monitor, the software is independently developed by ETON, with a Chinese and English operation interface, and the operation is simple and easy to understand.
Our service
free door-to-door installation service, free replacement of all parts damaged during the warranty period, free online video teaching for 7 days and 24 hours, and free software update for life
FAQ
Q: How is the training?
A: After purchasing our products, you can send your engineers to study in our factory, or we can send our engineers to yourfactory to train your staff for you .
Q: Do you have a product certification certificate?
A: Our products have CCC, CE, SRIA certification.
Q: How about the after-sale service? How about the warranty?
A: We have a team of professional engineers to solve your problems. Any parts that require repair and replacement are free ofcharge during the warranty period. We can also provide you with training and on-site installation, and support remote control of the machine, the machine uses Chinese and English interface, very easy to operate.
