Description
Description of RT-2 Pick and place machine
- with double module,total 20 head,each part 10 head, can produce two types of products at the same time.
- The X axis is magnetic liner motor,Y axis and Z axis is servo motor,very good performance and high accuracy.
- It’s intelligent,can produce different types of LED light and electric board,such as bulb ,strip, Panel, Downlight, streetlight,power driver, other electronic boards, etc.
- Its high precision(accuracy),apply to LED chips,resistor,capacitor,IC,shaped components etc.
SMT RT-2 Pick and place machine features
- Double module magnetic linear motor multifunctional pick and place machine.
- 64 feeder stations and 20 nozzles
- Electronic feeder feeding system
- Vision alignment flight identification, Mark correction
- Auto-optimization after coordinates generated, etc
- Windows 7interface operating system
- Independently developed Chinese and English software
RT-2 of Technical Parameter
|
Dimension |
1200*1930*1500mm |
|
PCB length width |
Bilateral dual-track: Max:450*300mm Unilateral dual-track:Max:450*540mm Min:80*80mm |
|
PCB Thickness |
0.1~6mm |
|
Mounting mode |
Group picking and separately placing、separately picking and separately placing |
|
Mounting precision |
±0.04mm |
|
Mounting height |
Standard:≤15mm(Height customizable) |
|
Mounting speed |
80000 CPH |
|
Components |
LED chip、capacitors、resistors、IC、shaped components、etc. |
|
Components space |
0.2mm |
|
No.of feeders station |
64 PCS |
|
No.of head |
20 PCS |
|
Power |
AC 380V 50Hz |
|
Power consumption |
6KW |
|
X,Y,Z Axis drive way |
High-end magnetic linear motor and servo motor |
RT-2 Picture
Application of Pick and Place Machine RT-2

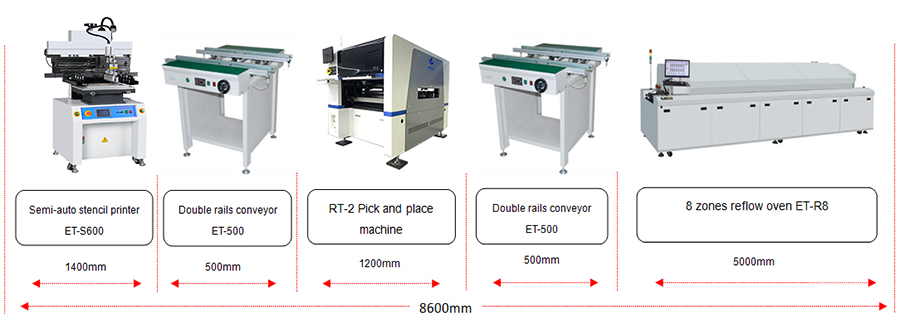

RT-2 semi-automatic production line

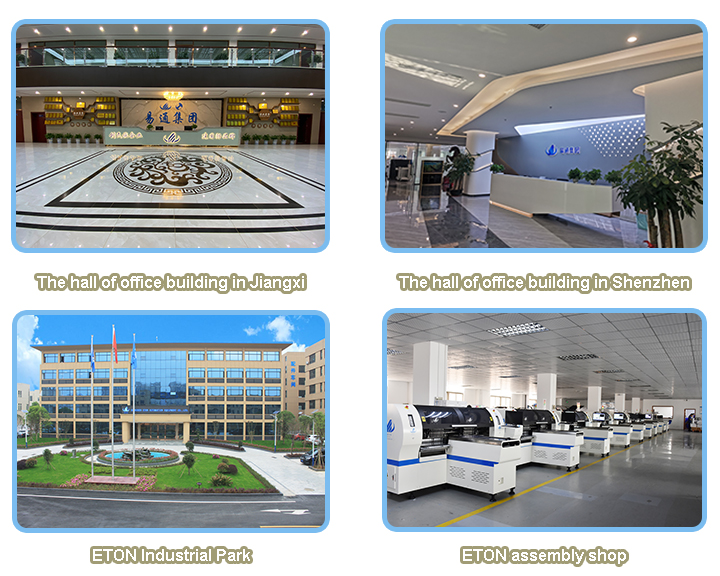

ETON Jiangxi Industrial Park
Company Introduction
Our company set up 2011,is a famous for the top technology of high speed pick and place machine,meanwhile is a leading manufacturer of automatic high-speed pick and place machine focusing on High efficiency Low consumption.
ETON with more than 10 years experience in SMT machines filed.Having more than 80% LED manufacturer are our partners in China.
We rated as Shenzhen high-tech enterprise,China high-tech enterprise,Shenzhen TOP Brand,2015 LED Technology Innovation Aware,The 4th China LED first Innovation Aware,and so on.
Certification
We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as “Well-know brand” and many technology patents, and have rich experience(more than 10 years) in LED light production line program.
Our client
ETON as the leading manufacturer of global photo electronic high speed pick and place machine, the products are exported more than 20 countries and regions, including India, Vietnam, Tunisia, Egypt, Turkey, Russia, Thailand, etc.
Our Exhibitions
Our company participates in exhibitions at home and abroad every year (except during the epidemic period), such as:
Overseas: India Delhi Exhibition, India Mumbai Exhibition, Pakistan Exhibition, Egypt Exhibition, Tunisia Exhibition, Thailand Exhibition, etc.
Domestic: Guangzhou international lighting Exhibition; Shanghai Munich Exhibition; Chongqing LED Light Exhibition, etc.
FAQ of Pick and Place Machine
Q: Do you have oversea after sale service?
A: We can offer technical support abroad. If you in India,Turkey and Egypt, we have local engineers will support you fast.
Q: How is the installation and training?
A: After buying our machines,our engineer will visit to your factory installation and training for free.
Q: Does your machines have quality certificates?
A: We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as “Well-know brand” and many technology patents, we got 9 invention patents, 112 practical patents,12 software patents and have rich experience(more than 8 years) in LED light production line program.
Q: What’s your delivery time?
A: Usually 30 days after deposit, if we have inventory, the time can be brought forward.
Q：If machine have any problem after I receive it, how can I do ?
A：We will send Free parts send to you in machine warranty period,and our engineers will visit to your factory help you to solve your machine’s problem.
Our after-sales Services
We will send our engineer to your factory to install machine and training freely.
We have service office in India,and have Indian engineer in Delhi and Mumbai. Can support quickly.
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
Package and Delivery of Pick and Place Machine
Package:
Standard export vacuum water proof package;
Strong wooden package for ensure safely delivery of heavy and large equipment.
Delivery:
By air: for small package, worldwide express like DHL,UPS,FedEx,EMS…
By sea: for large package and quantity;
By railway or other ways as customer requested.
Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
