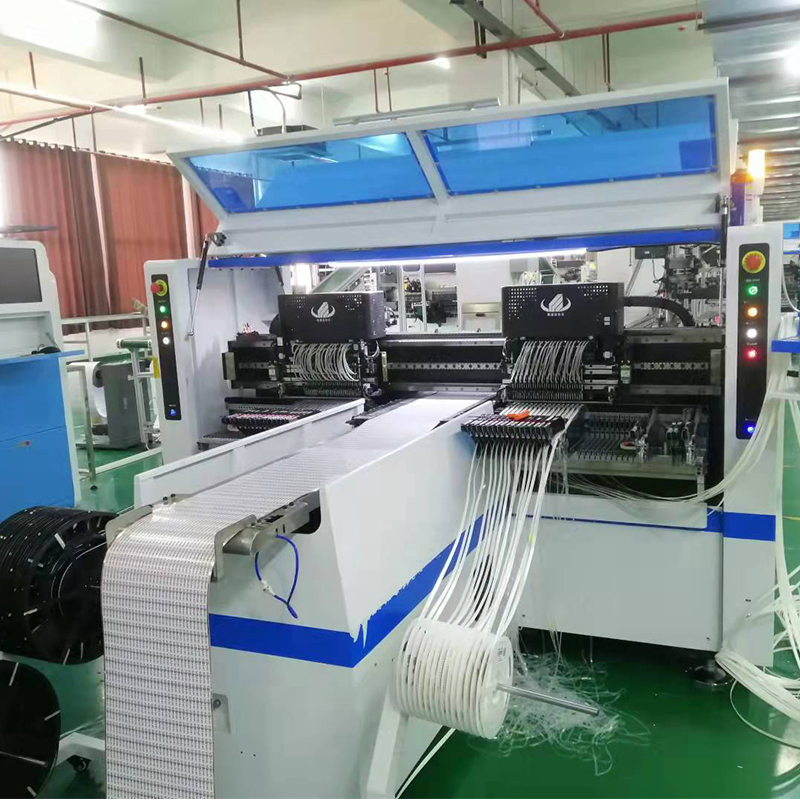

Full-automatic led machine assembling 100M led strip making machine

1. Adopt high-end magnetic linear motor , servo motor, stepper motor, ensure high mounting speed, high precision and high accuracy

2. the optimum mounting speed reach 250000 CPH with 68 feeders station and 68 heads

Description

Machine Parameter

HT-T9——ULTRA HIGH SPEED AND PROFESSIONAL SMT MACHINE

3100mm*2300mm*1550mm

Total weight

1700kg

PCB Length width

250mm*Any length

PCB Thickness

0.5-1.5mm

PCB clamping

Vacuum adsorption, cylinder splint, adjustable track width

Transmission speed

>500mm/sec

Repeating Mounting precision

±0.02mm

Component height

≤5mm

No. Of feeders station

68PCS

No. Of head

68PCS

Power consumption

6KW

Positioning way

Optical

Feeding way

Electric feeder with double motor

feature

1. Adopt high-end magnetic linear motor , servo motor, stepper motor, ensure high mounting speed, high precision and high accuracy

2. the optimum mounting speed reach 250000 CPH with 68 feeders station and 68 heads

3. Group to pick and group to mount, more sensitive and more intelligent

4.5 sets of digital cameras achieve vision alignment and mark correction

5.Software: R&D by ETON independently, freely upgrade whole lifetime

Production Line



SMT peripheral machines

Provide whole SMT production line and solution according client’s requirement, support personal customization

 0325(1)

Company profiles

1. More than 11 years experience

2. obtain 133 technical patants and certificates

2. Strong manufacturing capacity, have our own industrial park, the area of up to 500000 square meters
3. Perfect service system: provide 24-hour online service and free on-site installation training for support engineers in some areas

 202206241013517732215

Clients and customer factory

 export more than 20 countries and regions, including India, Turkey, Egypt, South Africa, Brazil, South Korea and so on.

Customer

 14

Maintenance period 1 year

  • One year warranty during warranty any parts that need to be repaired and replaced will be free.

Software and hardware lifetime maintenance

  • Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.

Visit customers regularly and gather information

  • Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.

Provide the latest information about technology and equipment

  • We give professional technology suggestions to our clients. And share the updated news with our clients

On-site service

  • We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
  • According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
