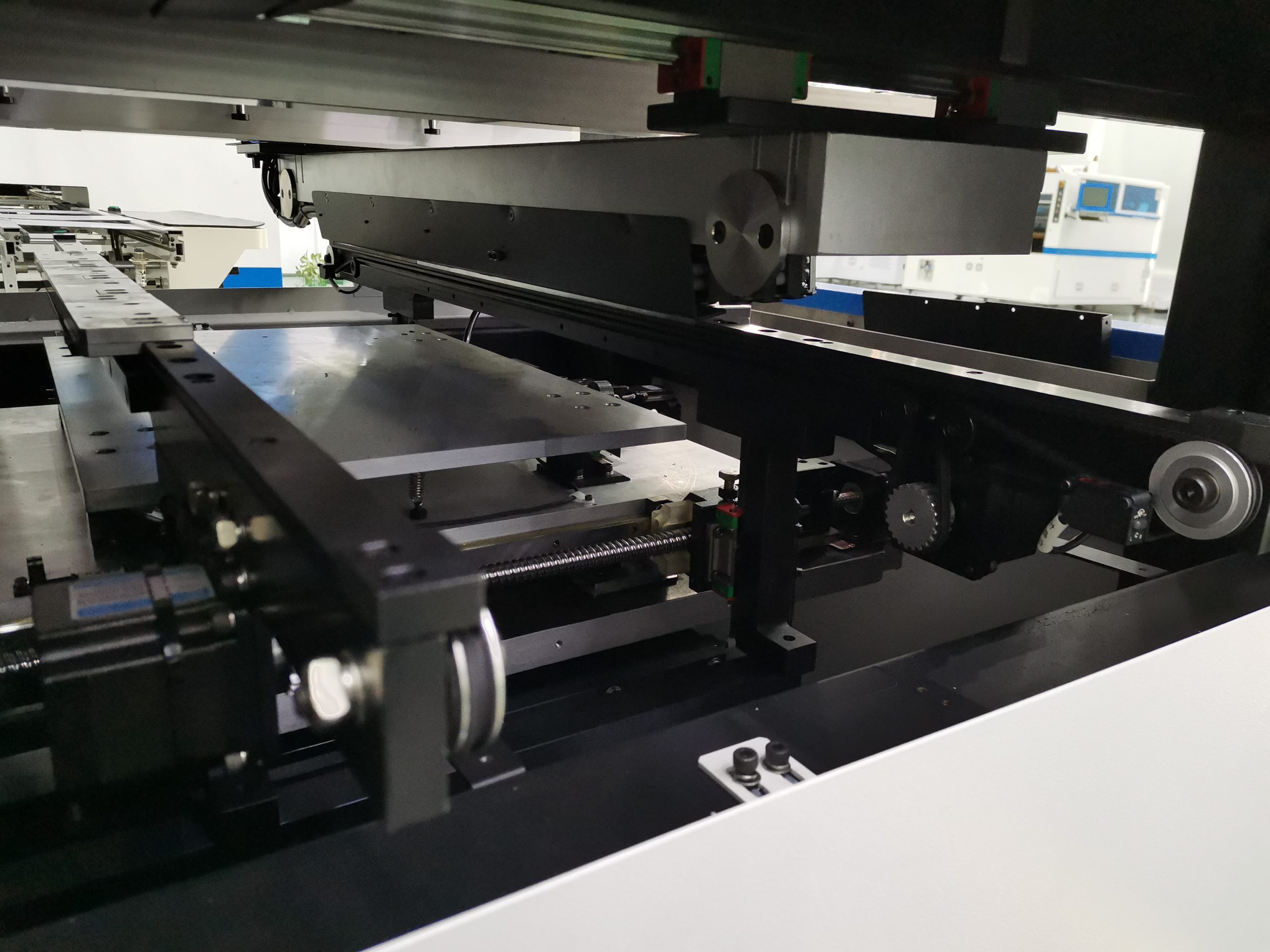

PCB transport and cleaning system
The PCB loading direction can be selected and combined freely.
Unique crafted internal gear conveyor belt to prevent jamming.
Programmable transport speed control makes PCB stop more precise
Adopt flexible side clamps and segmented supports to effectively clamp the РСВ to ensure a fully balanced contact between the РСВ and the steel mesh.
Full automatic PCB screen printing machine
|
Max PCB size |
520*350mm |
|
PCB thickness |
0.6-6mm |
|
Transport speed |
Max 1200mm/s programmable |
|
Squeegee speed |
6-300mm/sec |
|
Stencil separation speed |
0.1-20mm/sec programmable |
|
Printing accuracy |
±0.025mm |
|
Weight |
700KG |
|
PCB transfer overhead height |
10mm |
Full automatic PCB screen printing machine
Stencil positioning system
The optimally designed module drive structure effectively improves the stability of the platform calibration,and realizes ultra- small transmission under fine tuning, so that the machine can meet the printing requirements of higher precision.The structure is simple and reliable, the adjustment is convenient, andthe height adjustment of the support PIN of the РCВ board with different thicknesses can be quicklyrealized.
Our Clients
We worked with many brands, and received a lot good reputations because of our excellent services and good quality products .
We cherish each opportunity to service for all our customers, aimed to a long term cooperation .
Packaging and shipping
Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Service
We can provide you with excellent service, we also have professional overseas engineers to your factory provide install, training service until you can operate the machine adroitly.
1.We can provide you with the whole production line.
2.Our software is R&D independently.We can offer software upgrade for lifetime for free
3.We have 50,000 square meters of industrial park. The production strength is abundant, occupies the first place in the domestic profession.
4.If you have any problem with the product, we will have overseas engineers come to your home for free repair or replacement within one year. Because we have offices overseas and local engineers.
