Description

Machine main features

  • Dual system, dual module multi-functional mounter to produce two different products at the same time.
  • Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
  • Component: Min. Size 0402, Max. Height 15 mm.
  • Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.
  • Electronic feeder feeding system.
  • Vision alignment flight identification, Mark correction.
  • Non- stop material re-loading function.
  • Auto-optimization after coordinates generated, etc.

Model

HT-E8D-1200

PCB length width

Max:1200*300 mm

Min:100*100 mm

PCB thickness

0.5-5 mm

PCB clamping

Adjustable pressure pneumatic

Mounting mode

Group picking and separately placing, Separately picking and separately placing

Mounting precision

±0.04 mm

Mounting speed

90000 CPH

No. of feeders station

48 PCS single module

No. of head

24 PCS single module

SMT Line solution

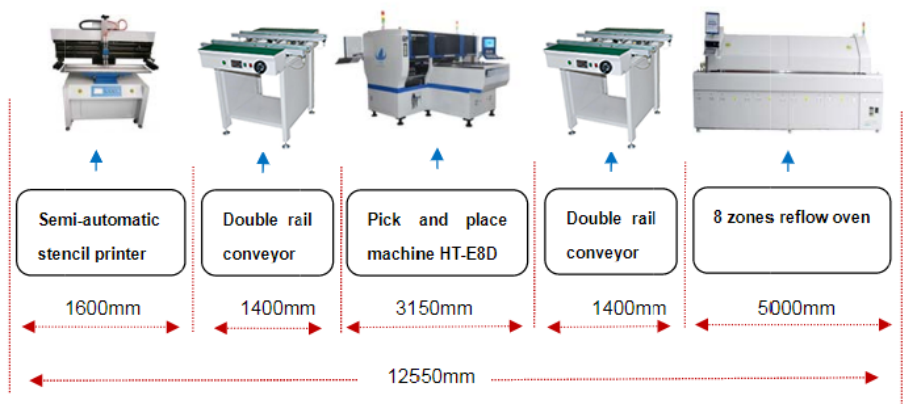

Here are the semi-automatic SMT line solution layout:

Market

Our products had exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:





FAQ

Q. What components is your machine mainly mounted?

A. For the multi-functional pick and place machine that can mount IC, LED chip, resistors, capacitors and shaped components like lens. High speed mounter machine mounting components are LED 3014/3020/3528/5050, resistors, capacitors and rectifiers.

Q. How long can the delivery date take?

A. If have stock the delivery date is about 20 days, others is according to the actual situation.

Q. What is your usual payment term?

A. Our usual payment term is T/T, that requires to pay 30% in advance, and pay the balance off before the delivery of the goods.

Maintenance period 1 year

  • One year warranty, during warranty, any parts that need to be repaired and replaced will be free

Software and hardware lifetime maintenance

  • Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates

Visit customers regularly and gather information

  • Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time

Provide the latest information about technology and equipment

  • We give professional technology suggestions to our clients. And share the updated news with our clients

On-site service

  • We have some official site in India as Mumbai and New Delhi, also have site in Egypt. Turkey that can provide service timely with our engineers.
  • According to your needs. dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
