High Speed Multifunctional Double Module 40 Nozzles Pick And Place Machine

  • Adopt High speed multi modular head, apply to ultra small chip 0201~10*10mm large chip, widercomponent range;
  • Vacuum sensing device: Each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product;
  • Ultra high speed capability: Adopt high-end magnetic linear motor, servo system and multi  function modular head, the capacity increased by 25% compared with traditional machine, optimum speed reach120000 CPH;
  • Brand new self-developed high precision placement head;

Description

Machine main features

  • Adopt High speed multi modular head, apply to ultra small chip 0201~10*10mm large chip, widercomponent range;
  • Vacuum sensing device: Each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product;
  • Ultra high speed capability: Adopt high-end magnetic linear motor, servo system and multi  function modular head, the capacity increased by 25% compared with traditional machine, optimum speed reach120000 CPH;
  • Brand new self-developed high precision placement head;
  • Combine highaccuracy Mark recognition camera with fixed flight vision camera, ensure placement accuracy;
  • Docking Cart: Double side docking cart slot 32 PCS, tape reel package:64 PCS(Single docking cart slot 16 PCS, tape reel package:32 PCS)
  • Smart Double-Head tape feeder: Support YT series double head intelligent electric tape reel feeder, by optically correcting the feeding position of the component, it can achieve stable, accurate and high-speed feeding;
  • The placement head adopt independent vacuum detection, improve placement performance;
  • Off-line programming, save time of changeover cycle;
  • Software AI intelligent learning function and automatic optimization function.
  • Two gantry, 20 spindles*2 Gantry, total 40 spindles;
  • Flexible PCB handling capabilities, double rail, both gantry can mount the same large PCB at the same time, realizing flexible production.



Machine main parameter

Model

YT-402

PCB size

Max size: 500*450 mm(Single side)

500*300(Double side)

Min size: 50*50 mm

PCB thickness

0.5-4.5 mm

PCB clamping

Cylinder clamping, track width adjustable

Rail

2 rail, 2 gantries(Rail 1,4 are fixed rail)

Software

R&D independently

Production management MES system

Customized (Option)

Off-line programming

Available

Camera

Head flight vision recognition component

Vision alignment + Mark correction

Repeat precision

±0.02 mm

Mounting height

≦6 mm

Position mode

Optical

Optimal speed

120000 CPH

Component range

Min 0201~10 mm packages and IC etc.

Position mode

Optical

No.of heads

Double side:40 PCS

Single side:20 PCS

Feeding way

Intelligent double head feeder

X,Y,Z Axis drive way

High-end magnetic linear motor + Servo motor



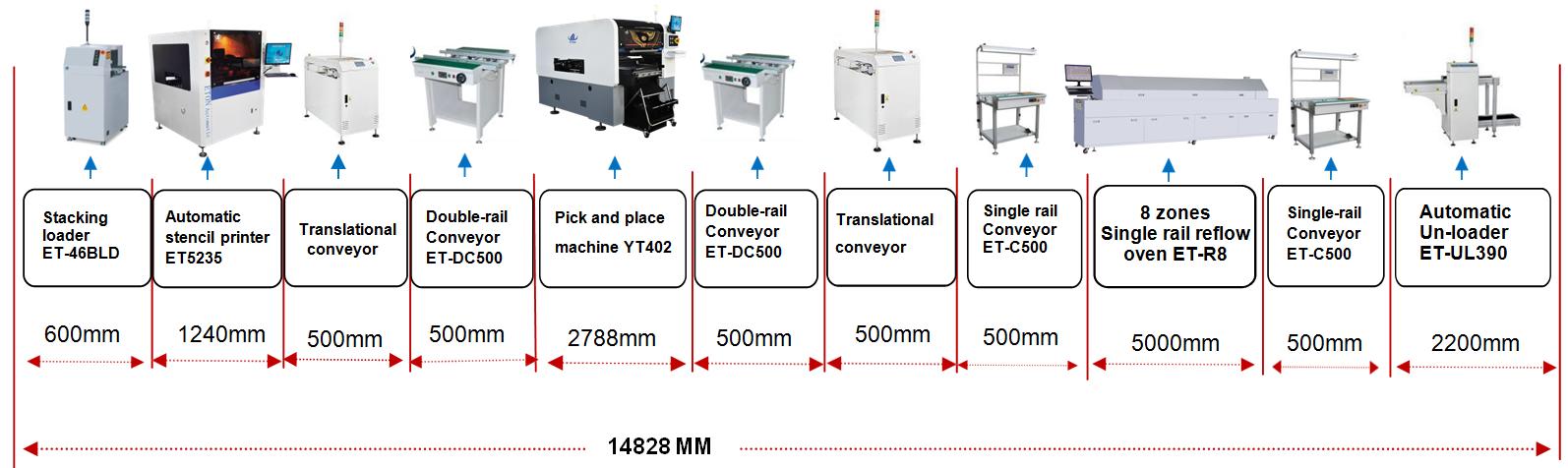

Machine Picture

Application products

It an mount high-precision products, such as displays, drivers, circuit boards etc.

-1

Company profile

Shenzhen ETON Automation Equipment Co., Ltd., founded in 2011, is a provider focusing on the R & D,

production and sales of SMT high-speed mounter and SMT peripheral automation equipment, as well as

the manufacturing and process scheme of garment production. The company has SMT high-speed Mounter

business unit, precision solder paste printing equipment business unit, high-speed precision dispensing

defense business unit and SMT peripheral automatic makeup equipment business unit.

Package and Delivery of Pick and Place Machine:

Package advantages

Filming packing:Make the machine sanitary, clean, sealed packaging, dust and humidity; have good shock resistance, impact resistance, and good protection performance with tightness and fixity.

vacuum packing:Advantages of moisture proof,dust proof and so on.

wooden packing: It has good cushioning performance, corrosion resistance, high strength and hygroscopicity, moisture-proof and earthquake-resistant functions.

Service

Maintenance period 1 year

  • One year warranty, during warranty, any parts that need to be repaired and replaced will be free

Software and hardware lifetime maintenance

  • Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates

Visit customers regularly and gather information

  • Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time

Provide the latest information about technology and equipment

  • We give professional technology suggestions to our clients. And share the updated news with our clients

On-site service

  • We have some official site in India as Mumbai and New Delhi, also have site in Egypt. Turkey that can provide service timely with our engineers.
  • According to your needs. dedicated senior engineer will come to your factory for free install and training you how to operate the machine.

8ef08ffdb8999469c7841b442c7ffd8

FAQ



Q: What’s the terms of payment? What about the trade term?

A: T/T is OK. You can choose FOB Shenzhen.



Q: What’s your delivery time?

A: Usually 30 days after deposit, if we have inventory, the time can be brought forward.



Q: Is there any quality guarantee?

A: We stick to quality first, client-oriented, Continuous improvement!



Q: Is your software interface in English?

A: English interface and Chinese interface are both available.



Q: It’s hard to use the machine?

A: No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
