Description

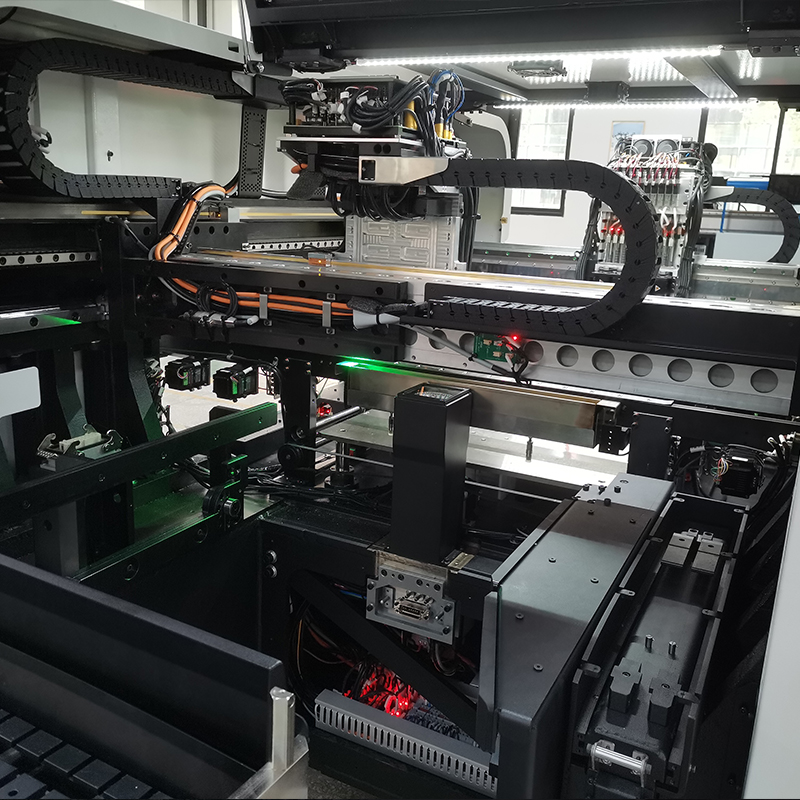

The Parameter of YT 202S pick and place machine

model

YT 202S

PCB size

MAX size: 500*450mm(single PCB)

        500*300MM(double PCB)

MIN size: 50*50mm

PCB thickness

0.5-4.5mm

PCB clamping

Cylinder clamping, track width adjustable

system

Windows 7

software

R&D independently

No. Of camera

4 set (digital camera)

Mounting speed

80000 CPH(optimum speed)

Components range

Min 0201-40*40mm tape reel packages and IC tray feeder etc

X,Y,Z Axis drive way

High end magnetic linear motor+ servo motor

No. Of feeder station

Double side docking cart slot 32 PCS, tape reel packages : 64PCS(single side docking cart slot 16 PCS, tape reel package: 32PCS),freely switching between docking cart and IC tray feeder

No. Of heads

Double side: 20 PCS(single side: 10 PCS)

Feeding way

Intelligent double head feeder



Feature of YT 202S pick and place machine

1.Double module, one module 10 heads, another module 10 heads, total 20 heads

2.independent detection function: each head has this function, which can ensure the stability and reliability

3.apply to 0201-40*40 mm IC tray feeder and tape reel package, BGA , CSP etc.

4.feeding way: docking cart, smart double head tape feeder, IC tray feeder

5.double rail, can mount two same PCB or a large PCB at the same time

The full-automatic production line of YT 202S pick and place machine

Automatic production line unmanned and high degree of mechanization, simple operation, small human error, can achieve high precision mount effect

Our industrial park

Our intelligent industrial Park was used in 2020, total 52000 square meters, 7 big buildings, and more than 500 staffs. Our machines are produced and manufactured by ourselves, we have strength R&D Team, the software is R&D independently by our R&D team.

Certificates

Since ETON was founded, ETON has got various certificate, 9 invention patents, 112 practical patents, 12 software copyrights



Client’s factory shows

We have helped many clients set up SMT production line, and Got a lot of praise from customers
