LED Display Pick and Place Machine 80000CPH

LED Display Pick and Place Machine 80000CPH

1.Single module magnetic linear motor multifunctional pick and place machine

2.Mounting components: LED chip, resistor, capacitor, IC, shaped components,etc

3.PCB length width: Max 450*350mm  Min 80*80mm

SKU: 926-2-1-1-2-1-2-1-1-1-1-1-1-1-1-2-1-2-1-1-2-2-1-1-3-2-1-1-1-1-1-1-3-2-1-1-1-3 Category: Tags: , , ,

Description

Description of RT-2 Pick and place machine



1. with double module,total 20 head,each part 10 head, can produce two types of products at the same time.
2. The X axis is magnetic liner motor,Y axis and Z axis is servo motor,very good performance and high accuracy.
3. It’s intelligent,can produce different types of LED light and electric board,such as bulb ,strip, Panel, Downlight, streetlight,power driver, other electronic boards, etc.
4 .Its high precision(accuracy),apply to LED chips,resistor,capacitor,IC,shaped components etc.

Main features

  • Double module magnetic linear motor multifunctional pick and place machine.
  • 64 feeder stations and 20 nozzles
  • Electronic feeder feeding system
  • Vision alignment flight identification, Mark correction
  • Auto-optimization after coordinates generated, etc
  • Windows 7interface operating system
  • Independently developed Chinese and English software

Main Technical Parameter

Dimension

1200*1930*1500mm

PCB length width

Bilateral dual-track: Max:450*300mm

Unilateral dual-track:Max:450*540mm

Min:80*80mm

PCB Thickness

0.1~6mm

Mounting mode

Group picking and separately placing、separately picking and separately placing

Mounting precision

±0.04mm

Mounting height

Standard:≤15mm(Height customizable)

Mounting speed

80000 CPH

Components

LED chip、capacitors、resistors、IC、shaped components、etc.

Components space

0.2mm

No.of feeders station

64 PCS

No.of head

20 PCS

Power

AC 380V 50Hz

Power consumption

6KW

X,Y,Z Axis drive way

High-end magnetic linear motor and servo motor

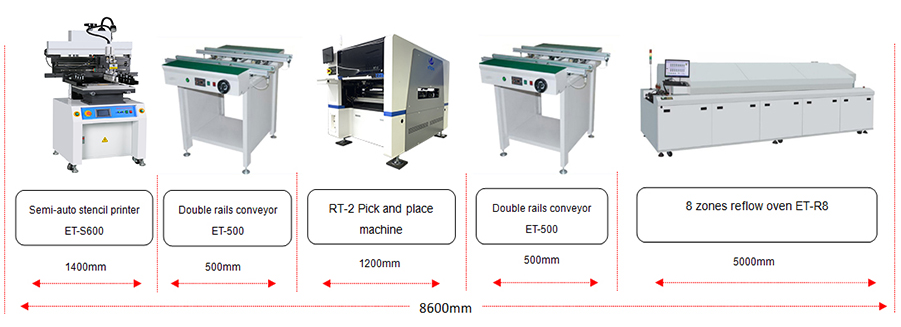

The semi-auto SMT Production line of RT-2

Solder paste printing machine,double-rail conveyor, Pick and Place machine, reflow oven.

The application

Our advantages:



Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.

Our machines are of better quality, more accurate and faster to mount. We also have our own exclusive patented technology such as dual motor electronic Feeder feeding system, flight identification visual alignment, group picking and group placing and so on.



Our Exhibitions:

ETON is a very strong and powerful company. We attend many exhibitions every year.
Not only in China, India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul, Egypt Cairo, Russia Moscow, Vietnam Hanoi etc.
We occurred 85% percent in China LED lighting markets, but also send machines to India, Korea, UK, Russia, Egypt, Turkey, Vietnam, Japan, Australia, Poland, etc more than 20 countries.
Working with ETON is guaranteed, let’s light up your business!

FAQ:



Q: What’s the terms of payment? What about the trade term?

A: T/T is OK. You can choose FOB Shenzhen.



Q: What’s your delivery time?

A: Usually 30 days after deposit, if we have inventory, the time can be brought forward.



Q: Is there any quality guarantee?

A: We stick to quality first, client-oriented, Continuous improvement!



Q: Is your software interface in English?

A: English interface and Chinese interface are both available.



Q: It’s hard to use the machine?

A: No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
