Description

Products feature

  1. Dual arm LED high-speed pick and place machine
  2. Producing 4 types materials at the same time, capacity reach 250000CPH
  3. Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip
  4. Available for board with any proportion of LED chip and resistor
  5. Calibration automatically, high precision, available for RGB




Machine parameter

PCB length width

Max 1200*330mm

Software

R&D independently

Camera

5

Mounting height

≤5mm

Mounting speed

250000CPH

No.of feeders station

68

No.of head

68

Power consumption

6KW



Application

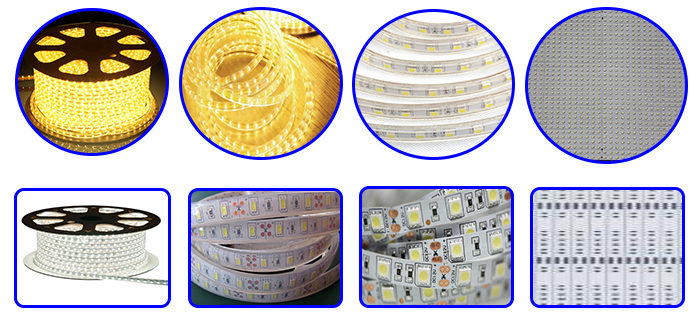

It is suitable for producing flexible strip of any length, such as 0.5m, 1M, 5m, 10m, 50m, 100m and 500m.

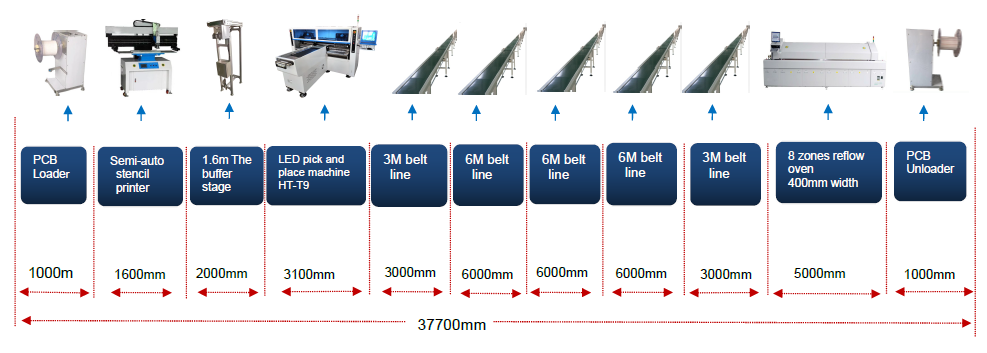

SMT production line

SMT production line mainly include: printer machine(The solder paste is missed printed on the PCB pad through the steel mesh of the printer), pick and place machine(Mount the drive and other components at the designated position on the PCB), reflow oven(Melt the solder paste to make it adhere to the mounting element), conveyor(It is used for the connection between SMT production lines, buffer, inspection, test of PCB, or manual plug-in of electronic components)

Company show

The company was founded in 2011, it is a manufacturing and process solution provide focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment.

There are 14 years of high-speed Mounter research and development experience, and the production Capacity reaches 500000 CPH.

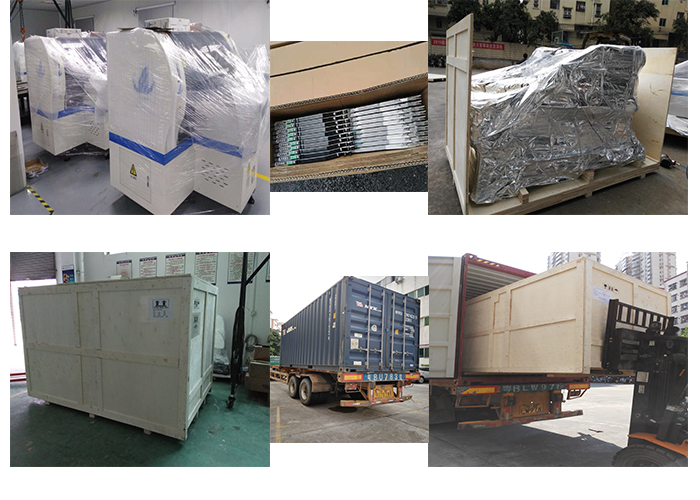

Package

Our products are generally packed in vacuum wooden cases, which can better protect our products from damage and loss during transportation. The packing cases are very strong and solid, we will arrange delivery and packaging according to the needs of customers.
