led lamp mounting making machine

Easy operation with Windows 7 system in Chinese and English language,
very convenient to use
2 sets the high-resolution camera for accurate vision alignment correction
a precision electric feeder with double motors

Description

Description

Describe

LED lamp manufacturing machine, which can manufacture LED lamps in the middle, such as LED bulb, DOB bulb, panel lamp, downlight, spotlight, soft light belt, lamp tube can not only sit the lamp, but also produce display screen and driver.

1.12 heads, each controlled by an independent servo motor

2.It can produce various LED lights and displays, circuit boards

3.The size of the largest PCB is 600 * 500mm

4.Exclusive patent technology: group take and paste, separate take and paste

5.Independently researched and developed software, supporting lifelong free updates

Technical Parameter

Technical parameter

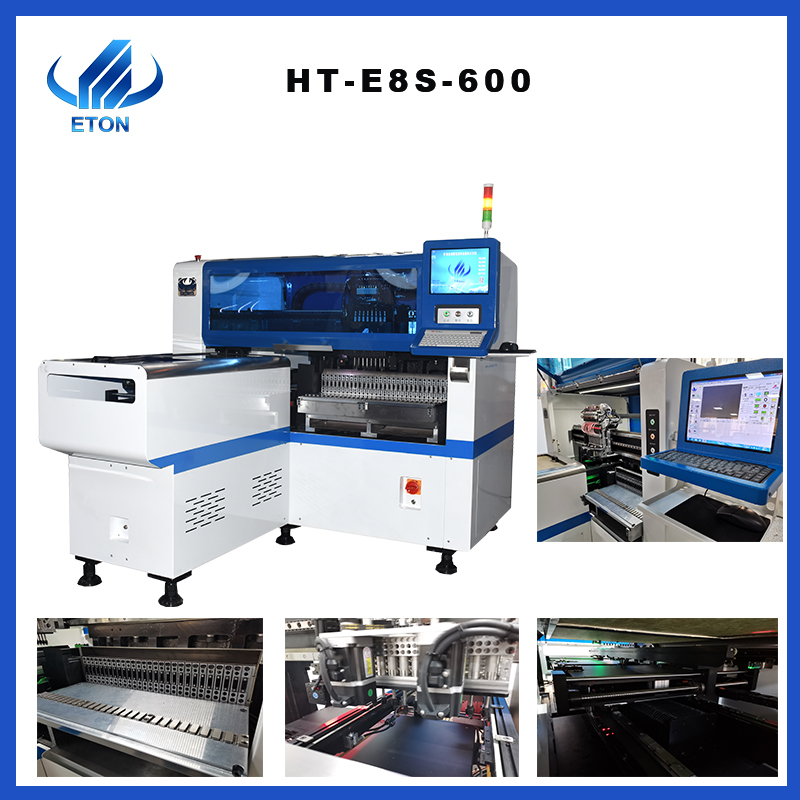

Model	HT-E8S-600
Dimension
Length	1550 mm
Width	1650 mm
Height	1550 mm
Total Weight	1500 kg
PCB
PCB Length Width	Max:600500mm Min:100100mm
PCB Thickness	0.5-5mm
PCB Clamping	Adjustable pressure pneumatic
Mounting Mode	Group picking and separate placing\separate picking and separate placing
O.S.
System	Windows7
Software	R&D independently
Display	Touch screen monitor
Input Device	Keyboard, Mouse
Vision System
No. of Camera	2 sets of imported camera
No. of Camera	Vision for the flight identification, MARK correction
Mounting Precision	±0.04mm
Mounting Height	<15mm (Automatic Changing)
Mounting Speed	45000 CPH
Components	LED , capacitors, resistors, IC,shaped components, etc.
Components Space	0.2mm
No. of Feeders Station	28 PCS
No. of nozzles	12 PCS
Power	380AC 50HZ
Power Consumption	4 KW
Operating Environment	23℃±3℃
Conveyor transmission	Max length :600 mm
Transmission Speed	＞1000mm/sec
Transmission Direction	Both direction (option)
Transmission Mode	Auto online drive
Air supply	0.4-0.6mpa (4-6kgf/cm2)150N/min
Electrical control	Independent research and development by ETON
X,Y,Z Axis Drive way	High-end magnetic linear motor + Servo motor
Feeding way	Electric feeder with double motor

After-Sale Service

Maintenance period 1 year

One year warranty, during warranty, any parts that need to be repaired and replaced will be free.

Software and hardware lifetime maintenance

Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.

Visit customers regularly and gather information

Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.

Provide the latest information about technology and equipment

We give professional technology suggestions to our clients. And share the updated news with our clients.
