- Easy operation with Windows 7 system in Chinese and English language,
very convenient to use - 2 sets the high-resolution camera for accurate vision alignment correction
- a precision electric feeder with double motors
LED lens pick and place machine
Description
Technical parameter
Parameter
|
PCB size |
Max:1200*500mm Min: 100*100mm |
|
PCB thickness |
0.5-5mm |
|
PCB clamping |
Adjustable pressure pneumatic |
|
Mounting mode |
Separate to pick and separate to stick |
|
Mounting height |
＜15mm |
|
Mounting precision |
±0.04mm |
|
Mounting speed |
45000CPH |
|
Components space |
0.2mm |

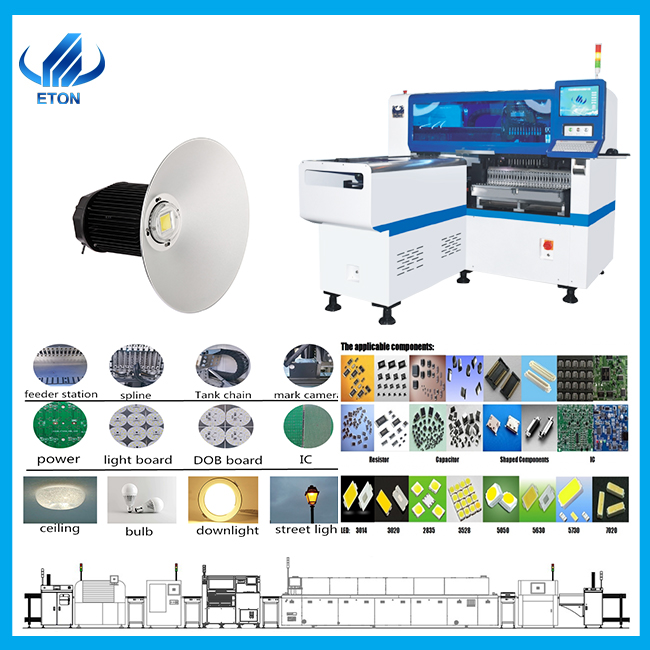

Electric feeder mark camera 45000CPH LED lens pick and place machine
Product description
|
1. While producing a variety of PCBA, it can also mount lenses, IC and various special-shaped components.The minimum mounting components range is 0402, the maximum mounting components range is 15mm, and the maximum width span of the components is 17mm,The production capacity can reach 45000 CPH (our best conditions). |
|
2. The maximum length of guide rail transmission is 1200mm, which means that this model can be pasted with different products, ranging from 100 * 100 bulb PCB board to 1200 * 500mm LED tube PCB board. |
|
3. The single-mode group has 12 suction nozzles and 28 feeders, each head is controlled by a servo motor, The two work together. PCB boards with different angles can be mounted, such as the circular state of bulbs |
|
4. Exclusive patented technology Electronic feeder feeding system Vision alignment flight identification, mark correction Non-stop material re-loading function |
Appliance
HT-E8S model can be made of various products, such as bulb, panel lamp, street lamp, lamp tube, display screen, IC, etc. as long as it meets the length of its PCB board, everything can be met within 1.2m. Of course, there are also models that can be customized, and the length of PCB board can reach 1.5m.
Feature
- The x-axis enters and exits the PCB board and is pasted while entering and leaving. It adopts linear motor, servo motor and stepping motor, which has higher precision and longer service life.
- Mark camera identification, scan the reference point of PCB board to prepare for the preparation of mounting program, and flight identification camera identifies whether there is material leakage, so as to ensure the high accuracy of mounting.
Maintenance period 1 year
One year warranty, during warranty, any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients.
