- Easy operation with Windows 7 system in Chinese and English language,
very convenient to use - 4 sets the high-resolution camera for accurate vision alignment correction
- a precision electric feeder with double motors
LED Light making pick and place machine
Description

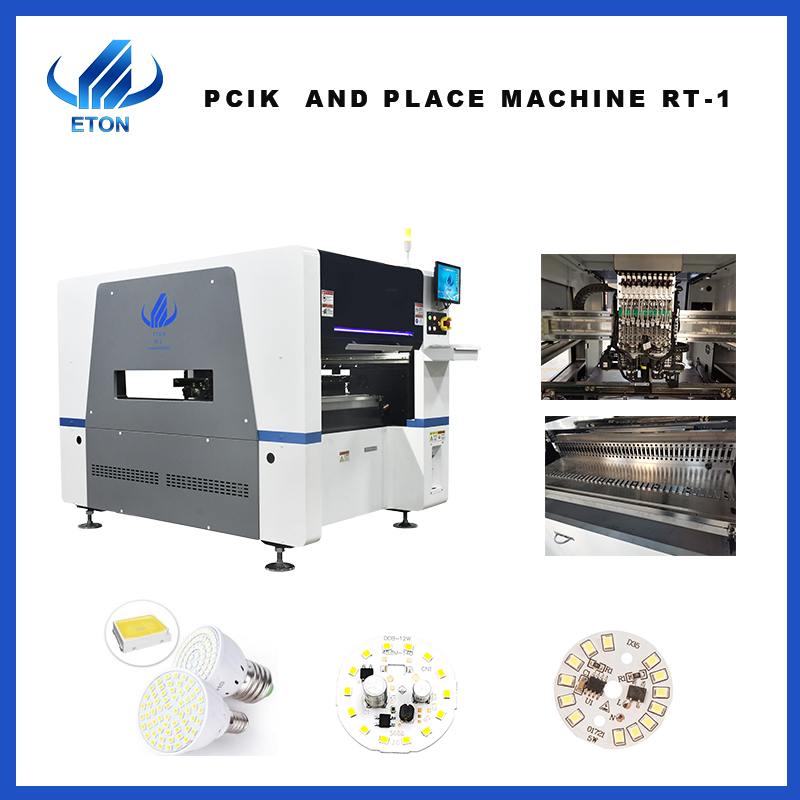

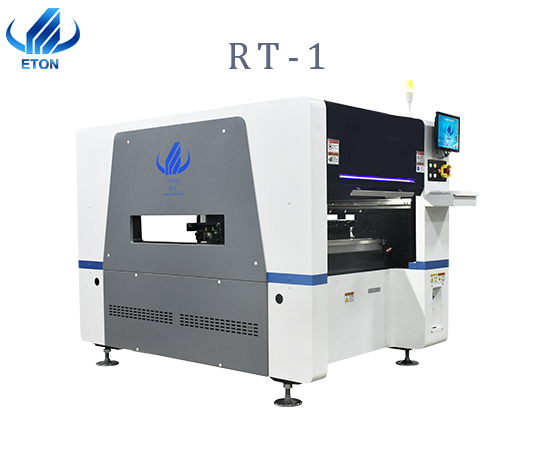

RT-1 introduction
Single mode group magnetic levitation multi-function Mounter single-mode group has a total of 32 suction nozzles. Feida adopts magnetic levitation linear motor mark camera, which has higher Mounter precision and longer service life. The multi-function mounter is suitable for mounting panel lamps, LED bulbs, DOB bulbs, downlights, display screens, drives, etc. Patch method: group take and paste, separate take and paste. The optimal production capacity per hour can reach 40000 CPH. The feeding mode is double motor electronic Feida feeder.
Technical parameter
|
Model |
RT-1 |
|
Dimension |
|
|
Length |
1200mm |
|
Width |
1930mm |
|
Height |
1500mm |
|
Total Weight |
2000kg |
|
PCB |
|
|
PCB Length Width |
Max:450*350mm Min:80*80mm |
|
PCB Thickness |
0.1-6mm |
|
PCB Clamping |
Pneumatic |
|
Mounting Mode |
Group picking and separate placing\separate picking and separate placing |
|
O.S. |
|
|
System |
Windows7 |
|
Software |
R&D independently |
|
Display |
Touch screen monitor |
|
Input Device |
Keyboard, Mouse |
|
Vision System |
|
|
No. of Camera |
2 PCS |
|
Accurate image recognition |
|
|
Vision alignment, MARK correction |
|
|
Mounting Precision |
±0.04mm |
|
Mounting Height |
≦15mm |
|
Mounting Speed |
40000 CPH |
|
Components |
LED , capacitors, resistors, shaped components, etc. |
|
Components Speed |
0.2mm |
|
No. of Feeders Station |
32 PCS |
|
No. of nozzles |
10 PCS |
|
Power |
AC 380V |
|
Power Consumption |
4kw |
|
Operating Environment |
23℃±3℃ |
|
Transmission Speed |
＞1000mm/sec |
|
Transmission Direction |
Single(left→ right or right→ left) |
|
Transmission Mode |
Online drive |
|
Position Mode |
Optical |
|
Gas consumption |
0.4-0.6mpa (4-6kgf/cm2)600N/min |
|
Electrical control |
Independent research and development by ETON |
|
Motion control card module 1 set |
Independent research and development by ETON |
|
X,Y,Z Axis Drive way |
High-end magnetic linear motor |
|
Feeding way |
Electric feeder with double motor |
