- Single module magnetic linear motor multifunctional pick and place machine.
- Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
- Component: Min. Size 0402, Max. Height 15mm.
- Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.
LED light pick and place machine
Description
Introduction

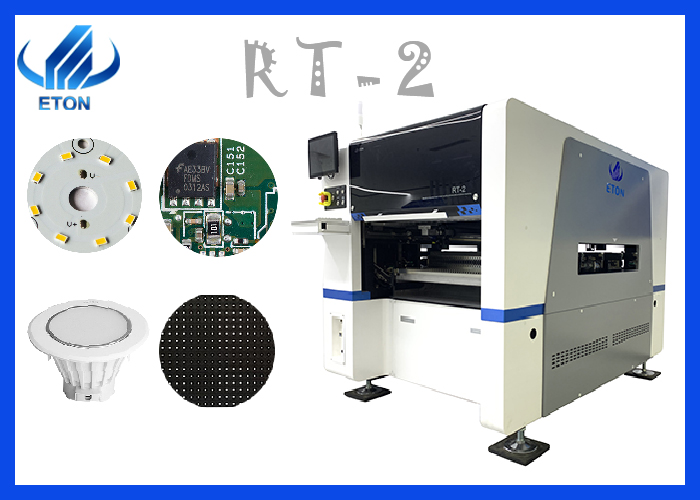

Rt-2 is a multi-functional Mounter with double ends and double rails. Compared with RT-1, the capacity of rt-2 is twice that of RT-1. The difference is that it can enter two boards at the same time, which saves the time of entering and leaving the board, occupies a smaller area and is cheap.
The mounting method of the utility model is that the group takes and divides the stickers, takes and divides the stickers, and rotates the mounting head at the maximum angle to ensure the correctness of the mounting position.
It has 84 Feeders and 20 heads, each of which is controlled by an independent servo motor.
Adopt high-end brand (Hikvision) camera, high-precision identification, improve the mounting accuracy and stabilize the mounting.
Independent research and development of software, simple operation of the machine, one can learn, dual motor electronic Feida, accurate feeding system, seamless connection, truly realize high-efficiency production, adopt high-end maglev linear motor, realize stable production and longer service life.
Technical parameter
|
Length*Width*Height |
1200*1930*1500 |
|
Total weight |
2500Kg |
|
PCB Length Width |
Max:450*300(Non-omnidirectional) 610*300Min:450*300 |
|
Mounting precision |
+-0.04mm |
|
Mounting speed |
80000cph |
|
components |
LED chip、capacitors、resistor、shaped components、etc. |
|
power consumption |
AC380V |
|
No.of feeders station |
84pcs |
|
No.of head |
20pcs |
|
PCB thickness |
0.1-6mm |
APPLICATION
Rt-2 multi-functional mounter is applicable to a variety of products, such as LED bulb, DOB bulb, panel lamp, downlight, display screen, drive board, etc.The minimum mounting height is 0402 and the maximum mounting height is 15mm Of course, we support customized services.
Marketing
Domestic market:ETON has more than 10 years of experience in the field of SMT machines. More than 80% of LED manufacturers are our partners in China.
overseas market:As the world’s leading brand of high-speed mounter, ETON has an absolute leading market share in the LED industry. Its products are exported to more than 20 countries and regions, such as South Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on. Especially in India, there are a large number of customers, such as:RK、SURYA,、Fiem、Calcom、POLYCRB.
FAQ
Q: What is your payment terms?
A:100% payment before delivery or 50% deposit in advance and the rest before shipment.
Q:How are your products packaged?
A:All machines are packed with vacuum and wooden packing like the one in the pictures.
Q:I’d like to know how your machines are transported？
A:We ship to world wide from china mainland using air mail by EMS, UPS, DHL or TNT or as your request for parts. — Sea shipping for machine.
