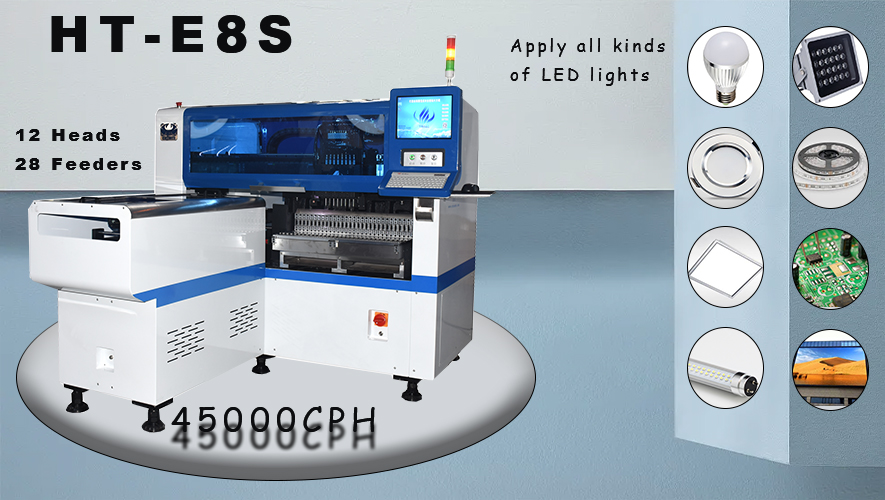

- Single module magnetic linear motor multifunctional pick and place machine.
- Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
- Component: Min. Size 0402, Max. Height 15mm.
- Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.
LED lights lens pick and place machine
Description
Machine introduction
1.Magnetic levitation linear motor + imported camera: higher mounting accuracy and longer service life.
2.High speed Mounter: 12 suction nozzles. Compared with RT-1, the mounting speed of e8s-1200 is faster, and the optimal production capacity per hour can reach 45000cph.
3.Suitable for mounting parts: with light beads, lenses, capacitors, resistors, IC and various special-shaped components, the minimum mounting 0402 components and the maximum mounting range is 15mm
4.What is a multifunction machine? It can be applied to a variety of products. E8s products suitable for mounting are: LED bulb, DOB bulb, panel lamp, downlight, lamp tube, lamp belt, display screen, driver and other products.
5.The PCB size suitable for e8s-1200 is 1200 * 500mm, while RT-1 is only 450 * 350mm.
In contrast, the PCB size of e8s-1200 is 1200 * 500mm The board suitable for making is larger.
6.The thickness of e8s-1200 PCB is 0.5mm-5mm, and its fixing method is adjustable pneumatic.
7.Operating system: windows7, independently developed software, touch screen display, input device is keyboard and mouse, and supports man-machine dialogue function (man-machine dialogue function refers to simple operation and learning).
8.Two sets of imported cameras: flight recognition visual alignment (take photos of components absorbed by the head, compare the previous mounting procedures with the mark camera, and calculate whether compensation is needed to mount components) mark correction (make the mounting procedure of PCB Based on scanning the mark point).
Technical parameter
|
Dimension(L*W*H) |
3150*2250*1650mm |
|
PCB Length Width |
Max:1200*300mm Min:100*100mm |
|
Mounting Mode |
Group picking and separate placing\separate picking and separate placing |
|
PCB Clamping |
Adjustable pressure pneumatic |
|
PCB Thickness |
0.5-5mm |
|
System |
Windows7 |
|
Software |
R&D independently |
|
No. of Camera |
4 sets of imported camera |
|
Mounting Speed |
45000CPH |
|
Components |
LED , capacitors, resistors, IC, shaped components, etc. |
|
No. of Feeders Station |
28PCS |
|
No. of nozzles |
12PCS |
Mounting height
The mounting height of the special machine is generally less than 5mm, while the mounting height of the multi-function machine can now reach 15mm. (the mounting height is the height of the mounting element).
Mounting method
The multifunctional machine is applicable to a variety of products, such as bulb, soft lamp belt, lamp tube, panel lamp, display screen, etc., while the special machine is mainly used for linear products, such as soft lamp belt and lamp tube. The main reason for this difference is the difference of mounting technology. The mounting technology of special machine is group taking and group pasting. The multi-function machine can realize group take and paste and take and paste, because each head is controlled by an independent motor.
ETON quality advantages
ETON focuses on R & D and is supported by a strong technical team. ETON’s machines are very famous in the market. In order to ensure product quality, we have adopted strict processes in material procurement and product production. In 2020, ETON Jiangxi Industrial Park “ETON Intelligent Park” was successfully completed, equipped with advanced processing and manufacturing centers to check the quality of parts from the source, and further standardize and process the production process.
FAQ
Q:How are your products packaged?
A:All machines are packed with vacuum and wooden packing like the one in the pictures.
Q:I’d like to know how your machines are transported？
A:We ship to world wide from china mainland using air mail by EMS, UPS, DHL or TNT or as your request for parts. — Sea shipping for machine.
Q:What are your advantages over other companies?
A:As a global leading brand of photoelectric high-speed mounter and a pioneer enterprise of SMT Mounter in China, ETON’S products are exported to more than 20 countries and regions such as South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil and Iran. It has independently developed the world’s first technological invention patents and proprietary technologies, including 9 invention patents, 12 software copyrights and 112 practical patents. It has successively won the titles of “Shenzhen high tech enterprise”, “Guangdong high tech enterprise”, “national high tech enterprise” and “Shenzhen famous”
