- Easy operation with Windows 7 system in Chinese and English language,
very convenient to use - 4 sets the high-resolution camera for accurate vision alignment correction
- a precision electric feeder with double motors
LED lights making pick and place machine
Description
Technical parameter
Parameter
|
No.of camera |
4 sets |
|
Mounting precision |
±0.04mm |
|
Mounting height |
＜15mm |
|
Mounting speed |
90000CPH |
|
Components space |
0.2mm |
|
Power |
380AC 50Hz |
|
Power consumption |
8 KW |
|
Feeding way |
Electric feeder with double motor |
90000CPH 8KW 24 heads 48 feeders LED lens LED lights making pick and place machine
Product description

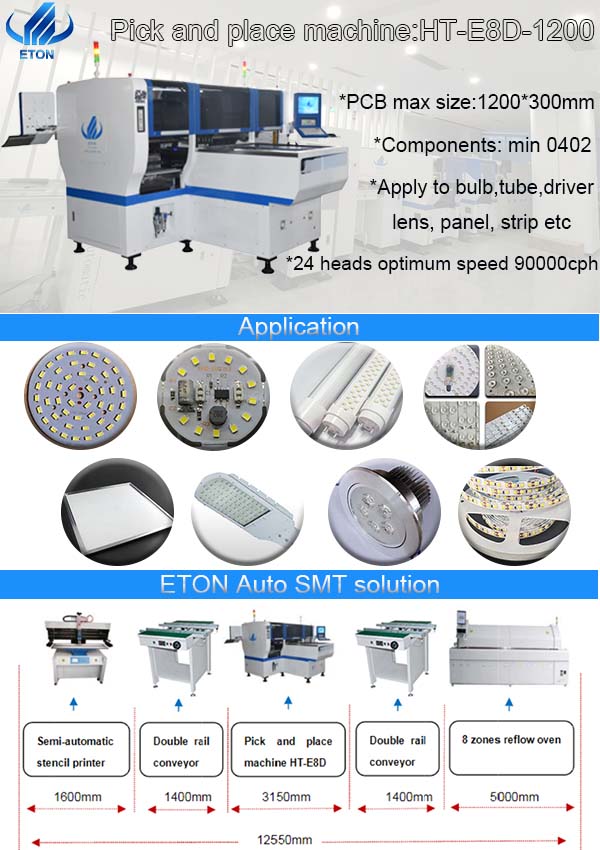

HT-E8D-1200 is a dual-mode magnetic multifunctional high-speed mounter
The dual-mode group of this model is controlled by two systems, which means that two PCB boards can be produced at the same time
Magnetic levitation linear motor is adopted. Compared with the servo motor used in most products on the market, this one has longer service life, higher precision and better mounting effect
Feature
|
The minimum placement component is 0402, and the maximum placement is 15mm |
|
Various SMD components, such as LED lamp beads, lenses, resistors, capacitors, IC and various special-shaped components, etc. |
|
Electric feeder feeding system |
|
Vision alignment flight identification, Mark correction |
|
Non-stop material re-loading function |
|
Auto-optimization after coordinates generated,etc. |
Vision system
There are 4 sets of high-precision cameras, which cooperate with the three-color lighting recognition principle, and the recognition degree is very high.
Multi function means that this machine is a universal machine, which can be applied to a variety of different LED lamps, such as LED bulb, DOB bulb, street lamp, down lamp, ceiling lamp, panel lamp, lamp tube, lamp strip, lamp strip, etc. it can also produce LED lens, LED display screen and driver
Maintenance period 1 year
One year warranty, during warranty, any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients.
