LED making bulbs, circuit board, DOB with 80000 capacity high speed SMT mounter

LED making bulbs, circuit board, DOB with 80000 capacity high speed SMT mounter





Description

Machine main features

Model

RT-2

Dimension

1200*1930*1500 mm

Total weight

2500 kg

PCB length width

Bilateral dual track :Max: 450*300 mm

One-sided single track:Max:450*540 mm

Min: 80*80 mm

PCB thickness

0.1-6 mm (if <0.6 mm need jig)

Mounting precision

±0.04 mm

Mounting speed

80000 CPH

No. of head

20 PCS

  • Magnetic linear motor multi-functional pick and place machine
  • Mounting components: LED chip, capacitors, resistors, IC, shaped components, etc.

Exclusive patented technology:

  • Auto-optimization after coordinates generated,etc





SMT Line solution

We have a 50000 square meters industrial park, and  there are production center and R&D center and quality inspection center to guarantee the machines quality For a whole line solution is a basic task of our company that we can help our clients with our professional engineers.

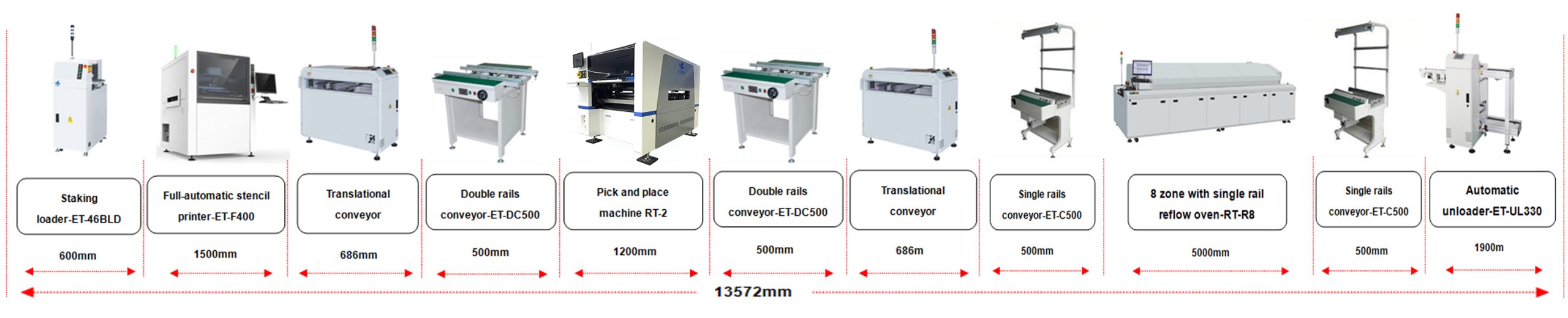

Here is the full- automation line of the machine:

Market

 We are high-tech enterprise with CE, SIRA, CCC , ISO

awarded as “Well-know brand” and many technology patents, and have rich experience

(more than 10 years) in LED light production line program.  We have traded with more

than 20 countries and region, we have many partner of foreign countries, as South, Korea,

India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil etc.

Packages

Our package of the machine is taking vacuum package with wooden boxes, also the accessories of the feeders and other spare parts use cartons to equip with the wooden boxes with the machine.

FAQ

Q. How many components can your pick and place machine mount in a PCB board?

A. While this is for our clients needs and the size of the PCB board.

Q. Can you accept CIF as the quoted price?

A. We only accept EXW as the quoted price.

Q. What is your usual payment term?

A. Our usual payment term is T/T, that requires to pay 30% in advance, and pay the balance off before the delivery of the goods.
