Description
Machine features:

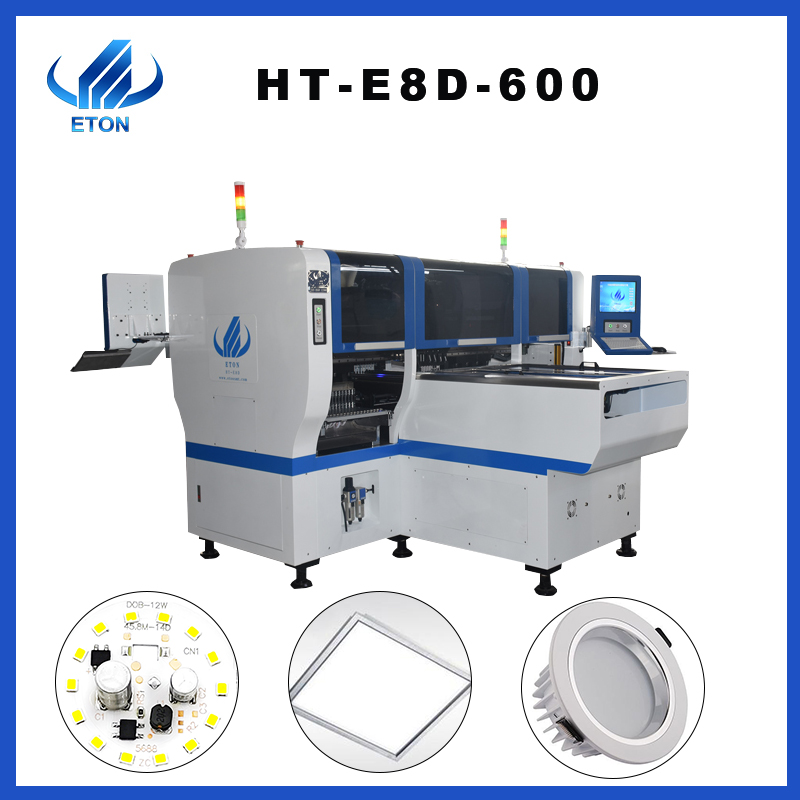

(1).HT-E8D-600:Double module magnetic motor multifunctional pick and place machine.
Dual system, dual module multifunctional mounter to produce two different products at the same time.
(2).24 placements heads, The optimum mounting speed reached 90000 CPH.The actual production capacity should be determined according to the mounted products and the actual production situation.
(3).Mounting components:Led chip,capacitors,resistors,lens,IC,shape components(min size 0402 max height 17mm)etc.Max PCB Size:600*300mm
(4)Adopted Electronic feeder feeding system,non-stop material re-loading function.This machine equipped with 2 sets of imported camera,vision for the flight identification,which greatly improve the placement the placement accuracy of the machine.
Machine parameter:
|
Model |
HT-E8D-600 |
|
Dimension(L*W*H) |
1950*2250*1650mm |
|
Weight |
2200kg |
|
PCB length width |
Max:1200*300mm;Min:100*100mm |
|
PCB thickness |
0.5~5mm |
|
Mounting precision |
±0.04mm |
|
Mounting components |
Led chip,capacitors,resistors,lens,IC,shape components(min size 0402 max height 17mm)etc. |
|
Mounting mode |
Group picking and separately placing, separately picking and separately placing |
|
Mounting height |
<15mm |
|
Mounting speed |
90000 CPH |
|
Power consumption |
8KW |
|
No. Of feeders station |
48 PCS(double module） |
|
No. Of head |
24PCS(double module） |
|
X,Y,Z Axis drive way |
High-end magnetic linear motor+servo motor |
|
Feeding way |
Electric feeder with double motor |
Application:
HT-E8D-600 machine apply to many products,such as DOB bulb,flexible strip,led tube,lens,street light,led display,power drive,electric board,led display,down light etc.
