- Easy operation with Windows 7 system in Chinese and English language,
very convenient to use - 4 sets the high-resolution camera for accurate vision alignment correction
- a precision electric feeder with double motors
LED pick and place machine 10 Heads
Description

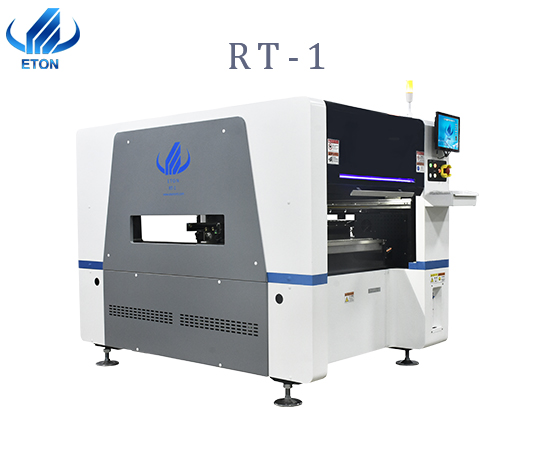

RT-1 introduction
Single mode group magnetic levitation multi-function Mounter single-mode group has a total of 32 suction nozzles. Feida adopts magnetic levitation linear motor mark camera, which has higher Mounter precision and longer service life. The multi-function mounter is suitable for mounting panel lamps, LED bulbs, DOB bulbs, downlights, display screens, drives, etc. Patch method: group take and paste, separate take and paste. The optimal production capacity per hour can reach 40000 CPH. The feeding mode is double motor electronic Feida feeder.
Technical parameter
|
Model |
RT-1 |
|
Dimension |
|
|
Length |
1200mm |
|
Width |
1930mm |
|
Height |
1500mm |
|
Total Weight |
2000kg |
|
PCB |
|
|
PCB Length Width |
Max:450*350mm Min:80*80mm |
|
PCB Thickness |
0.1-6mm |
|
PCB Clamping |
Pneumatic |
|
Mounting Mode |
Group picking and separate placing\separate picking and separate placing |
|
O.S. |
|
|
System |
Windows7 |
|
Software |
R&D independently |
|
Display |
Touch screen monitor |
|
Input Device |
Keyboard, Mouse |
|
Vision System |
|
|
No. of Camera |
2 PCS |
|
Accurate image recognition |
|
|
Vision alignment, MARK correction |
|
|
Mounting Precision |
±0.04mm |
|
Mounting Height |
≦15mm |
|
Mounting Speed |
40000 CPH |
|
Components |
LED , capacitors, resistors, shaped components, etc. |
|
Components Speed |
0.2mm |
|
No. of Feeders Station |
32 PCS |
|
No. of nozzles |
10 PCS |
|
Power |
AC 380V |
|
Power Consumption |
4kw |
|
Operating Environment |
23℃±3℃ |
|
Transmission Speed |
＞1000mm/sec |
|
Transmission Direction |
Single(left→ right or right→ left) |
|
Transmission Mode |
Online drive |
|
Position Mode |
Optical |
|
Gas consumption |
0.4-0.6mpa (4-6kgf/cm2)600N/min |
|
Electrical control |
Independent research and development by ETON |
|
Motion control card module 1 set |
Independent research and development by ETON |
|
X,Y,Z Axis Drive way |
High-end magnetic linear motor |
|
Feeding way |
Electric feeder with double motor |
COMAPNY PROFILE
Shenzhen ETON automation equipment Co., Ltd., established in 2011, is a manufacturer and process solution provider focusing on the R & D, production, sales and service of SMT high-speed mounter and SMT peripheral automation equipment, such as LED lamp mounter, automatic visual printer, automatic high-speed dispensing machine, etc. The products are easy to operate and the follow-up service is first-class. We have cooperated with many LED lamp manufacturers all over the world.
EXHIBITION
The exhibition is enough to reflect the strength of a company. ETON will participate every year. Domestic exhibitions mainly include Guangzhou Guangya Exhibition, Shanghai Munich exhibition and Chongqing led exhibition. Overseas exhibitions mainly include Thailand Exhibition, Turkey exhibition, Mumbai exhibition, Delhi exhibition, Pakistan exhibition, Egypt exhibition, etc. We have large customers in India, such as rk, Surya, calcom, polycrb, etc.
Patent
ETON has independently developed the world’s first technological invention patents and proprietary technologies, including 9 invention patents, 12 software copyrights and 112 practical patents.
PACKING

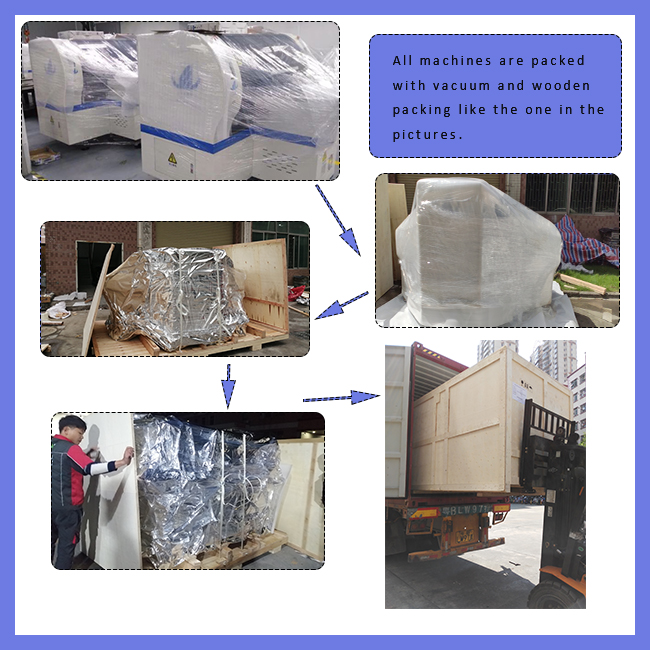

We usually use vacuum wooden cases to pack the products. Vacuum can be very shock proof and ensure the integrity of the products. If you have special requirements for packaging, we can also realize it for you.
