- High capacity, can produce four kinds of raw materials at the same time
- Easy operation with Windows 7 system in Chinese and English language,
very convenient to use - 5 sets the high-resolution camera for accurate vision alignment correction
- a precision electric feeder with double motors

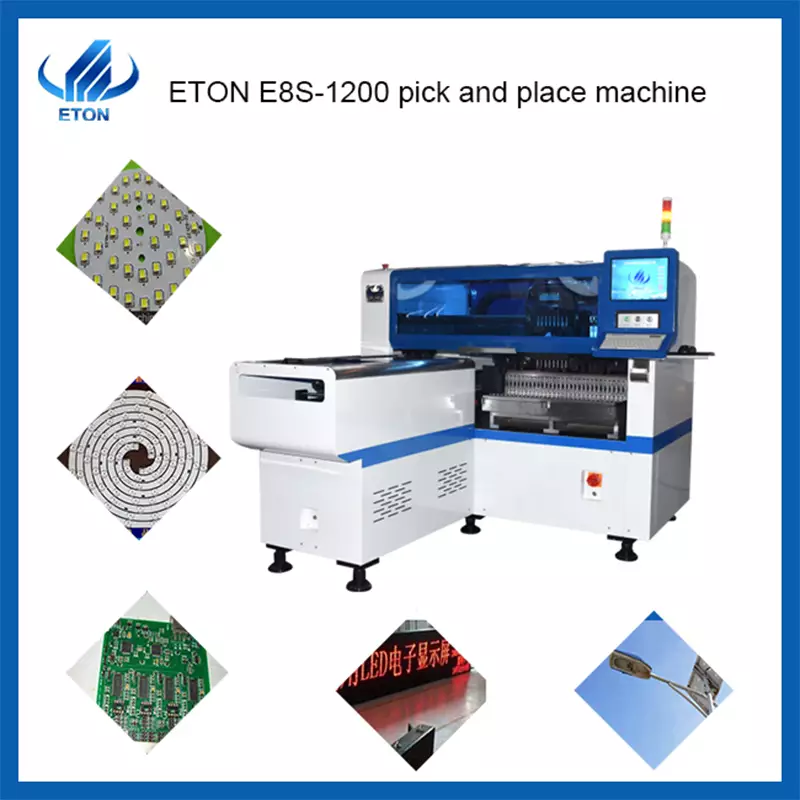

LED pick and place machine apply all kinds of LED lights
Description
Advantage
Dual system, dual module multifunctional mounter. To produce two different products at same time.
The maximum size of e8s-1200 PCB is 1200 * 300mm, which means that e8s can be pasted with a variety of products, such as panel lamp, bulb, street lamp, display screen, Down light, lamp tube, spotlight, etc. Its minimum PCB board is 100 * 100mm, and the components that can be attached include capacitance, resistance, IC, lens, special-shaped components, etc. The minimum size of mounting components is 0402 and the maximum is 15mm. It can also be customized. Compared with E8S, E8D has higher production capacity, and the optimal production capacity per hour can reach 90000 CPH. For RT-1, E8D has higher accuracy.
Exclusive patented technology
1.Electronic feeder feeding system.
2.Vision alignment flight identifications, Mark correction.
3.Non-stop material re-loading function
4.Auto-optimization after coordinates generated, etc.
Technical parameter
|
Dimension(L*W*H) |
3150*2250*1650mm |
|
PCB Length Width |
Max:1200*300mm Min:100*100mm |
|
Mounting Mode |
Group picking and separate placing\separate picking and separate placing |
|
PCB Clamping |
Adjustable pressure pneumatic |
|
PCB Thickness |
0.5-5mm |
|
System |
Windows7 |
|
Software |
R&D independently |
|
No. of Camera |
4 sets of imported camera |
|
Mounting Speed |
45000CPH |
|
Components |
LED , capacitors, resistors, IC, shaped components, etc. |
|
No. of Feeders Station |
28PCS |
|
No. of nozzles |
12PCS |
Packing
All machines are packed with vacuum and wooden packing like the one in the pictures. Shipping: — We ship to world wide from china mainland using air mail by EMS, UPS, DHL or TNT or as your request for parts. — Sea shipping for machine.
FAQ
Q:How are your products packaged?
A:All machines are packed with vacuum and wooden packing like the one in the pictures.
Q:I’d like to know how your machines are transported？
A:We ship to world wide from china mainland using air mail by EMS, UPS, DHL or TNT or as your request for parts. — Sea shipping for machine.
Q:What are your advantages over other companies?
A:As a global leading brand of photoelectric high-speed mounter and a pioneer enterprise of SMT Mounter in China, ETON’S products are exported to more than 20 countries and regions such as South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil and Iran. It has independently developed the world’s first technological invention patents and proprietary technologies, including 9 invention patents, 12 software copyrights and 112 practical patents. It has successively won the titles of “Shenzhen high tech enterprise”, “Guangdong high tech enterprise”, “national high tech enterprise” and “Shenzhen famous”
