- Easy operation with Windows 7 system in Chinese and English language,
very convenient to use - 5 sets the high-resolution camera for accurate vision alignment correction
- a precision electric feeder with double motors
LED tube strip light mounting machine
Description
Technical parameter
|
PCB thickness |
0.5-5mm |
|
PCB clamping |
Adjustable pressure pneumatic |
|
No.of camera |
5 PCS |
|
Repeating precision |
±0.02mm |
|
Power consumption |
6KW |
|
Power |
380AC50Hz |
|
Mounting speed |
150000CPH – 180000CPH |
|
Components space |
0.5mm |
150K-180K CPH LED tube strip light mounting machine
Product description
|
1. In the design of this model, in order to improve the production capacity, 34 suction nozzles and 68 feeders seats are designed. The mechanical arms of the two groups of suction elements move on the same track, making its maximum production capacity exceed 150000 CPH, can reach 180000CPH |
|
2. A plate of materials can be pasted separately, or 2-4 kinds of raw materials can be pasted at the same time, and the ingredients can be programmed according to the customer’s PCB design. |
|
3. The application software of mounter is independently developed by ETON. It is not only easy to learn, but also can be updated free of charge and guaranteed for life |

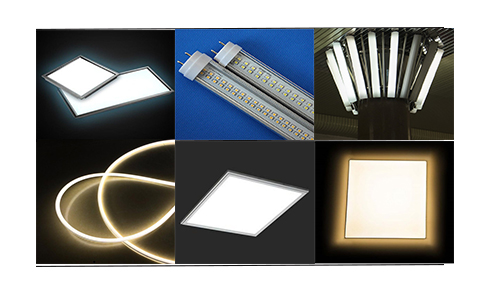

Appliance
PCB board
- The PCB board can be 1.2m to the longest and the width is 330mm, which means that it can be installed on large application products, long tube, large panel lamp and so on.
- Take it together and stick it together. This technology speeds up the mounting speed to a certain extent, but you can rest assured that the speed is accelerated and the accuracy is guaranteed.
Features
|
1. With automatic correction function, there is no need for manual continuous monitoring, and RGB can also be pasted. |
|
2. The position of mounting components is designed on the PCB board. There is no need to wait under any proportion of lamp beads and resistors to realize one-time mounting. |
|
3. Five cameras monitor each other to ensure that mark is programmed and pasted correctly. |
Maintenance period 1 year
One year warranty, during warranty, any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients.
