Description

Machine main features

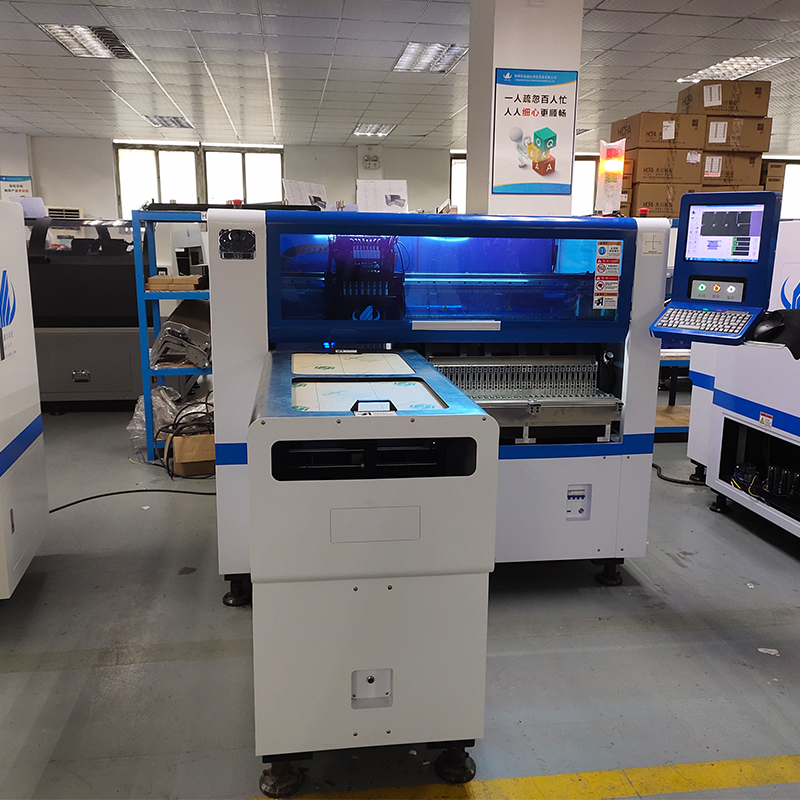

Model

HT-E8S-1200

Dimension

2550*1650*1550 mm

Total weight

1700 kg

PCB length width

Max:1200*500 mm

Min:100*100 mm

Mounting precision

±0.04 mm

Mounting speed

45000 CPH

No. of head

12 PCS single module

  • Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
  • Component: Min. Size 0402, Max. Height 15mm.
  • Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.

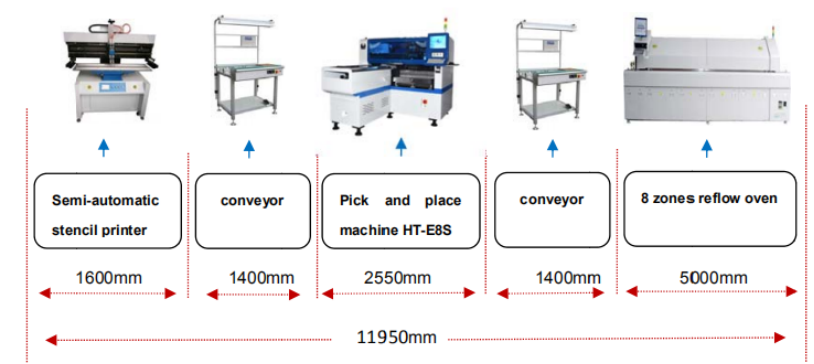

SMT Line solution

The blowing is the function of each machine:

 1.Semi auto stencil printer is aim of leaking solder paste or patching adhesive onto the solder pad of PCB to prepare for the welding of components; 2.Conveyor is used for the connection between SMT production lines, as well as buffering, testing, testing PCB boards or manual plug-in of electronic components;

3.Pick and place machine is to mount light beads or other surface mounted components at the designated position of PCB board;

4.Reflow oven is to melt the solder paste to fix and bond the components and PCB board.

Certificates

we obtained a number of intellectual property technologies, including 9 invention patents,

112 practical patents, 12 software copyrights, with our won R&D department for

production and inspection. We are high-tech enterprise with CE, SIRA, CCC , ISO

awarded as “Well-know brand” and many technology patents, and have rich experience

(more than 10 years) in LED light production line program.

Shipping and Delivery

For shipping the heavy goods of our SMT machine in the transportation, which is an imperative way to keeping safety, and in a suitable condition of the goods without any delay for the production.

Here are the three ways for your reference:

FAQ

Q. Can I use CIF price?

A. CIF price need add the freight and insurance fee, while for the part of EXW which is cheaper and convenient factor as a suitable price for both sides.

Q. How many hours does the machine can operate per day?

A.Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.

Q. If I need a perfect line of the machine can you supply?

A. Yes, for the requirements of a whole line for production, we have professional equipment to make up for a perfect production line for your products, on account of we have a 50000 square meters of industrial park and excellent R&D staff, which can produce 50 sets of machine per month.
