Multi-function 10 heads LED light 220 AC SMT mounting machine

1. New model RT-1 has increased the number of feeder station from 32 PCS to 42 PCS. To some extent, It is improving production efficiency and saving labor.

2. The X axis uses high-end magnetic linear motor, which has higher accuracy and faster speed. Each head of Z axis is independently controlled by servo motor to ensure accurate mounting.

3. The head structure is independent research and development by ETON, the structure and material are unique. and the mounting height is adjustable,up to 20 mm. It can be applied to many high DOB components and has wider range of applications.

Description

the advantages of RT-1

1. New model RT-1 has increased the number of feeder station from 32 PCS to 42 PCS. To some extent, It is improving production efficiency and saving labor.

2. The X axis uses high-end magnetic linear motor, which has higher accuracy and faster speed. Each head of Z axis is independently controlled by servo motor to ensure accurate mounting.

3. The head structure is independent research and development by ETON, the structure and material are unique. and the mounting height is adjustable,up to 20 mm. It can be applied to many high DOB components and has wider range of applications.

4. It is applicable to the wider range of components, and can be mounted with resistors, capacitors, IC, bridge rectifiers, inductors, terminals, diodes, transistors, large-capacitance transformers, shaped components.

5. Camera recognition system: vision camera, flight identification, Mark automatic correction,Auto-optimization after coordinates generated, to ensure high mounting precision.

6.Software:Independent research and development by ETON, free upgrade whole lifetime, saving costs.

the Technical Parameter

Length

1200 mm

Width

1930 mm

Height

1500 mm

Total weight

2000 kg

PCB Length width

Max: 450*350 mm Min: 80*80 mm

PCB Thickness

0.1-6 mm ( If <0.6 mm need jig)

System

Windows 7

Display

Touch screen monitor

Input device

Keyboard, mouse

Transmission speed

1000 mm/sec

Mounting precision

±0.04 mm

Transmission direction

Single( left→right or right →left )

No. Of feeders station

32 PCS

No. Of head

10 PCS

Operating environment

23℃±3℃

Power consumption

4 KW

X, Y, Z Axis drive way

High-end magnetic linear motor and serve motor

Feeding way

Electric feeder with double motor

the SMT production line

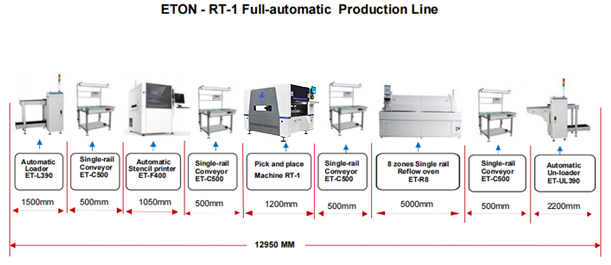

the full-automatic production line can save labor and improve production efficiency. the machine includes: loader, full-automatic stencil printer, conveyor, pick and place machine, reflow oven and un-loader.

company advantages

1. Strong manufacturing capabilities:

1) 7 buildings,over 50000 square meters.

2) The Global Largest Production Capacity Supplier of LED Production Line. Control quality from the source. Support customization: OEM/ODM. Sometimes the machine is in stock. if you pay and we get the payment, we can arrange delivery immediately.

3) Most of mechanical part are manufactured by ETON,Show our work shop to you, such as: CNC workshop,Assembly workshop,Powder Spraying Workshop,etc.

2. Product:

1) Multi-functional machine:

suitable for led bulb, DOB bulb, linear bulb, power driver, led display, down lights,etc.

Can mount ultra small chip 0201.

2) High-speed pick and place machine:

suitable for no-wire led strip light, invent the first roll to roll machine in 2011.

the fast Capacity can reach 500000 CPH.

3) SMT Peripheral: stencil printer, conveyor, loader, etc.

Our company have professional SMT peripheral automation equipment division, and R&D team make sure the machine high quality.

FAQ

How about the operating software?

Our software is R&D independently by ourselves.

How about your company?

We have more than 11 years experience and have obtained a number of intellectual property technologies.Our products are exported to more than 20 countries and regions.

What’s the terms of payment?

T/T is OK. You can choose FOB Shenzhen.

Why choose us?

ETON is the famous brand for high-end pick and place machine. We have more than 10 years experience and professional R&D team, providing 24 hours quick response after-sales service.

How long is the period for delivery?

30 days after deposit.
