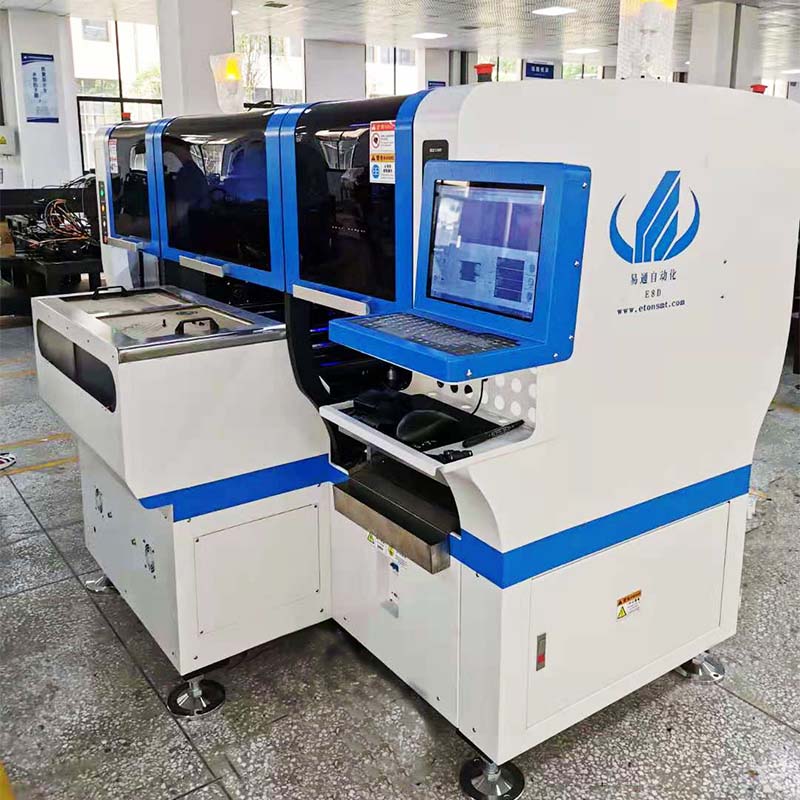

Multi-function 90000CPH LED bulbs SMT mounter

1.HT-E8D-1200:Double-module magnetic motor multifunctional pick and place machine.24 heads, optimum mounting speed reached 90000 CPH.The actual production capacity should be determined according to the mounted products and the actual production situation

2.Dual system, dual module multifunctional mounter to produce two different products at the same time.

3.Component: min.size 0402 max.height 15mm

4.Application: Power driver. Electric board. Lens. DOB bulb linear bulb. Household appliance etc.

Description

The Features of HT-E8D-1200

1.HT-E8D-1200:Double-module magnetic motor multifunctional pick and place machine.24 heads, optimum mounting speed reached 90000 CPH.The actual production capacity should be determined according to the mounted products and the actual production situation

2.Dual system, dual module multifunctional mounter to produce two different products at the same time.

3.Component: min.size 0402 max.height 15mm

4.Application: Power driver. Electric board. Lens. DOB bulb linear bulb. Household appliance etc.



Technical Parameter

Model

HT-E8D-1200

Dimension(L*W*H)

3150*2250*1650mm

Weight

2500kg

PCB length width

Max:1200*300mm;Min:100*100mm

PCB thickness

0.5~5mm

Mounting precision

±0.04mm

Mounting mode

Group picking and separately placing, separately picking and separately placing

Mounting height

<15mm

Mounting speed

90000 CPH

Power consumption

6KW

No. Of feeders station

48 PCS

No. Of head

24PCS

X,Y,Z Axis drive way

High-end magnetic linear motor+servo motor

Feeding way

Electric feeder with double motor

The Production Line

for the semi-automatic production line, it has five machines: one semi-automatic stencil printer, two conveyors,  one pick and place machine, one reflow oven.

semi-automatic stencil printer: leak the solder paste onto the PCB board

pick and place machine: mount the lamp beads or other electronic components to the designed position on the PCB

conveyor: used to transfer the circuit board in the production line

reflow oven: melt the solder paste to make it adhere to the mounting components

Company Introduction

1.Our company has 20 years development history.

2.Independent R&D Exclusive Patented technology.

3.85% large and listed LED factory are our client.

4.Top 1 in highspeed pick and place machine in China.

5.Software longtime update for free.

6.We have our own professional designers.

7.We have local engineers and offices abroad.

8.Equipped with 50,000 square meters of industrial park in jiangxi province. Which has been committed to the development and manufacture of placement machine equipment, insisting on the concept of “serving customers” and establishing the market trend.

Package and Transport

Maintenance period 1 year

  • One year warranty, during warranty, any parts that need to be repaired and replaced will be free

Software and hardware lifetime maintenance

  • Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates

Visit customers regularly and gather information

  • Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time

Provide the latest information about technology and equipment

  • We give professional technology suggestions to our clients. And share the updated news with our clients

On-site service

  • We have some official site in India as Mumbai and New Delhi, also have site in Egypt. Turkey that can provide service timely with our engineers.
  • According to your needs. dedicated senior engineer will come to your factory for free install and training you how to operate the machine.

FAQ

1.Can I use CIF price?

CIF price need add the freight, insurance fee on the basis of EXW price, and the india delivery forwarder will charge ours more than yours. so actually to do EXW will more simple and save cost for you.

2.Does the price include spare parts(nozzle and feeder)?

Different client has different requirements on spare parts, it is not fair to clients to add In equivalent price for spare parts. So we don’t add the spare parts cost on price. And price is only for machine.

3.Why their machine price is so much lower than yours?

You said that there are some peeling machines cheaper than us on the market, which does exist, but their selling point is price, and our selling point is quality. We can guarantee you the quality of ETON pick and place machine, and the value is far more than our price.

4.What can you buy from us?

Pick and place machine, Automatic stencil printer,SMT machine,Reflow oven,LED light production line.

5.Why choose us?

ETON is the famous brand for high-end pick and place machine. We have more than 10 years experience and professional R&D team, providing 24 hours quick response after-sales service.

6.How long is the period for delivery?

30 days after deposit.

7.What are the main types of pick and place machine in your company?

The pick and place machine from ETON have two types, multifunctional pick and place machine and high-speed pick and place machine. The highest speed will reach 250000 CPH and produce 4 different types of material at the same time. In 2022, the newest machine has been born——ETON HONOR SERIES. Our machine can satisfy the different needs of your production.
