1.It has 12PCS head and the mounting speed can reach 45000CPH.
2.The maximum PCB size is 1200*500mm.Min size 0402.
3.Group picking and separately placing，separately picking and separately placing.
PCB assembly line for chip mounter
Description
PCB assembly line for chip mounter
Advantages
*Single module magnetic linear motor multifunctional SMT machine.
*Vision alignment flight identification, Mark correction.
*Electronic feeder feeding system.
*The mounting speed can reach 45000CPH.
*It can produce power drive,electric board,lens,DOB bulb, etc.
*Mounting components: LED chip, capacitors, resistors, IC, shaped components.
PCB assembly line for chip mounter
Specification
|
Length |
2550mm |
|
Width |
1650mm |
|
Height |
1550mm |
|
Total weight |
1700kg |
|
PCB size |
Max:1200*500mm Min:100*100mm |
|
PCB thickness |
0.5-5mm |
|
Mounting height |
<15mm |
|
Mounting speed |
45000CPH |
|
No.of head |
12PCS |
|
Mounting precision |
±0.04mm |
Application

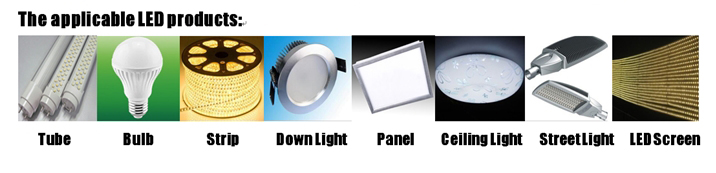

Apply to the electric board, LED flexible strip,power drive,tube,lens,etc.
Component: Min. size 0402 Max. height 15mm.
Application: Power drive,electric board,lens,DOB bulb,linear bulb,household appliance,etc.
Company Introduction
1.10 years development history.
2.Independent R&D Exclusive Patented technology.
3.80% large and listed LED factory are our client.
4.Top 1 in high-speed pick and place machine in China.
5.We can provide you with the whole production line.
6.Our software is R&D independently.We can offer software upgrade for lifetime for free
7.We have 50,000 square meters of industrial park. The production strength is abundant, occupies the first place in the domestic profession.
Packaging
All machines are packed with vacuum and wooden packing
Step1:Film packaging.
Step2:Vacuum packaging.
Step3:Wooden box packaging
You can trust us, because we have professional and standard packaging to protect the machine.
