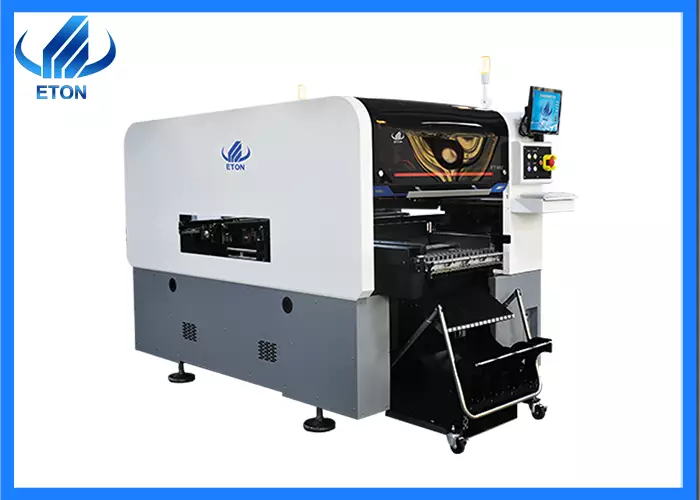

*Dual arm professional high-speed SMT machine.
*Producing 2-4 types materials at the same time.
*Vision alignment ,Mark correction.
*The mounting speed can reach 180000CPH.

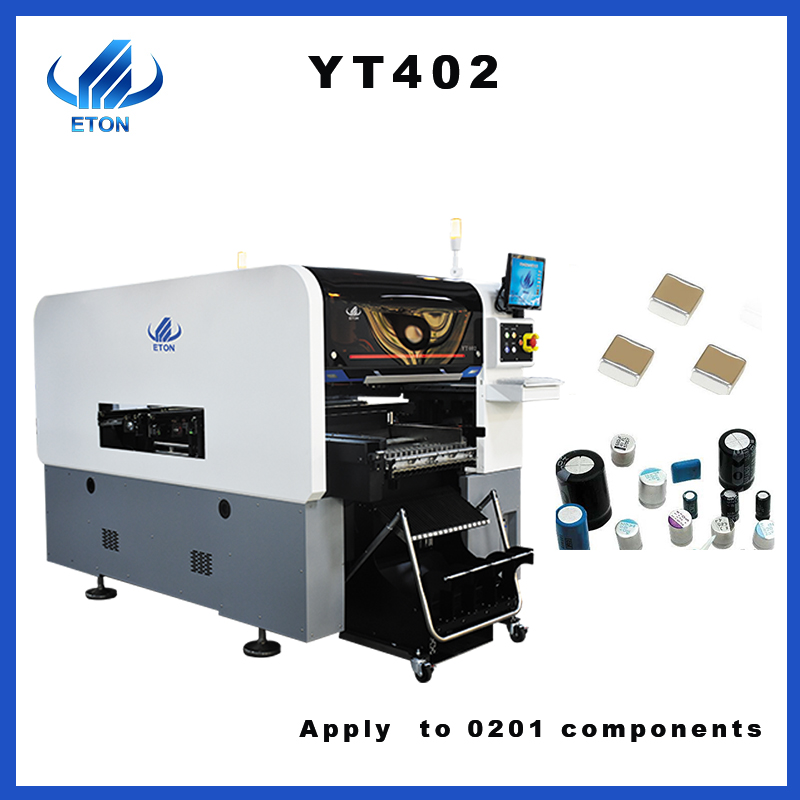

Pick and Place machine apply 0201-10mm tape rell package and IC tray feeder
Description
Characteristic
1.High speed universal integrated mounting head, 40 heads, each head is controlled by an independent motor, using a double row matrix type, the first 10 heads form a module, 20 suction heads, and the double mode group has 40 suction heads
2.New fixed aerial camera: improve the recognition performance, and expand the size of the corresponding components installed at high speed to 10*10mm
Mark camera: a high-precision mark camera recognition system, which adopts the three-color illumination recognition method, is suitable for any shape mark and lens (blue light scanning), and has a wide range of applications
Fixed line scan camera: through high-speed flight recognition camera, it can quickly collect multiple head images at one time, carry out visual calibration of component image position, alignment correction, and the height of light source can be adjusted
3.PCB
Max size:500*450mm(single PCB)
500*300mm(double PCB)
Min size:50*50mm
Parameter
|
PCB |
|
|
PCB size(L* W) |
Max size:500mm*450mm(single PCB) 500mm*300mm(double PCB) Min size: 50mm*50mm |
|
PCB thickness |
0.5-4.5mm |
|
PCB clamping |
Cylinder clamping, track width adjustable |
|
Rail |
2 Rail,2 gantries(Rail 1,4 are fixed rail) |
|
System |
Windows 7 |
|
Software |
R&D independently |
|
Production management MES system |
Customized(Option) |
|
Off-line programming |
Available |
|
No. of camera |
4 sets (数字相机 Digital camera ) |
|
Bottom vision camera recognition |
|
|
Vision alignment+Mark correction |
|
|
Repeat precision |
+ 0.02mm |
|
Mounting height |
6mm |
|
Mounting speed |
120000CPH (Optimum speed) |
|
Components range |
0201~10mm Min 0201 packagesand IC etc. |
|
Power |
380AC 50HZ 6KW |
|
Operating environment |
23°C±3°C |
|
Transmission direction |
Standard: Single direction |
|
Transmission mode |
Online drive |
|
Position mode |
Optical |
|
Air consumption |
0.4-0.6mpa ( 4-6kgf/cm2) 1 50N/min |
|
Electrical control |
Independent research and development by ETON |
|
Motion control card module 1 set |
Independent research and development by ETON |
|
X,Y,Z Axis drive way |
High-end magnetic linear motor +Servo motor |
|
No. of Feeder station |
Double side docking cart slot 32PCS,tape reel packages:64PCS(single side docking cart slot 16PCS,tape reel packages:32PCS) |
|
No. of Heads |
Double side:40pcs(single side:20pcs) |
|
Feeding way |
Intelligent Double head Feeder |
Our services
Once you buy our machine, you can enjoy the free door-to-door installation service of engineers. During the warranty period, all parts are damaged and replaced free of charge. You can support online video free teaching 24 hours a day, and provide free software update services for life.
FAQ
Q:What’s about the guarantee of the machines?
A:The maintenance:1 year whole machine,any parts need to be repaired or replaced will be free. We will take the responsibility of the machines from A to Z.
Q:Did you develop your own machine？
A:It has independently developed the world’s first technological invention patents and proprietary technologies, including 9 invention patents, 12 software copyrights and 112 practical patents.
Q:What is your machine suitable for?
A:Our machines are widely used in lighting, display screen, electronics, driving power supply, household appliances, new energy and other industries
