- Easy operation with Windows 7 system in Chinese and English language,
very convenient to use - 2 sets the high-resolution camera for accurate vision alignment correction
- a precision electric feeder with double motors
Single module LED lights SMT pick and place machine
Description
Technical parameter
Parameter
|
No. of Camera |
2 PCS |
|
Accurate image recognition |
|
|
Vision alignment, MARK correction |
|
|
Mounting Precision |
±0.04mm |
|
Mounting Height |
≦15mm |
|
Mounting Speed |
40000 CPH |
|
Components |
LED , capacitors, resistors, shaped components, etc. |
|
Components Speed |
0.2mm |
|
No. of Feeders Station |
32 PCS |
|
No. of nozzles |
10 PCS |
|
Power |
AC 380V |
|
Power Consumption |
4kw |
|
Operating Environment |
23℃±3℃ |
|
Transmission Speed |
＞1000mm/sec |
|
Transmission Direction |
Single(left→ right or right→ left) |
|
Transmission Mode |
Online drive |
|
Position Mode |
Optical |
|
Gas consumption |
0.4-0.6mpa (4-6kgf/cm2)600N/min |
|
Electrical control |
Independent research and development by ETON |
|
Motion control card module 1 set |
Independent research and development by ETON |
|
X,Y,Z Axis Drive way |
High-end magnetic linear motor |
|
Feeding way |
Electric feeder with double motor |
Product description
RT-1, the most popular machine in our company, has high cost performance
With 10 heads and 42 feeder, it can transport a variety of materials, and the ideal production capacity can reach 40000 CPH.
PCB
The PCB size of this model is 450*350mm. Because it is a multi-function machine, it is suitable for all LED light PCB boards that meet this size range.
Minimum size 0402, maximum height ≤ 15mm
It is suitable for mounting various components. There are many kinds of finished lamps. It is a machine with high cost performance.
SMT production line
If you have any questions about the production line, we can do our best to solve it. Also we could design a full production line for you from your point of view.

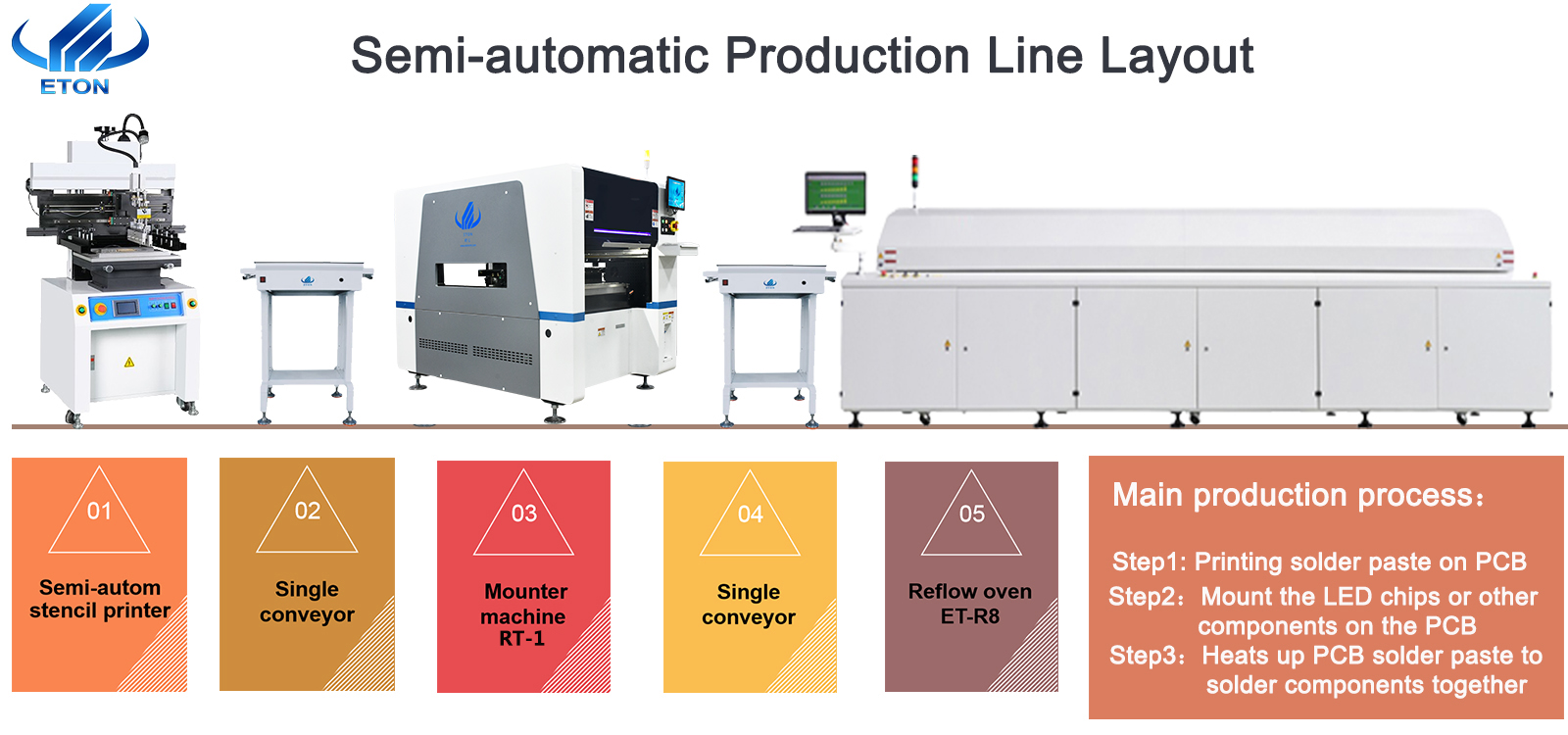

A complete production line, the following core equipment is essential:
Solder paste stencil printer machine: the function of this machine is to leave the solder paste on the pad of PCB to prepare for welding.
SMT pick and place machine: the function is to put the parts in the correct position on the PCB board.
Reflow oven: heat and cool the solder paste to form a permanently fixed solder joint.
Conveyor: It is used for the connection between production line equipment and the buffer, detection and transmission of PCB board.
At the same time, the production line design is divided into full-automatic production line and semi-automatic production line. If your budget is sufficient, choosing full-automatic production line can bring you more valuable benefits.
Of course, if you need a more affordable production line, the semi-automatic production line can also meet your requirements, but it will cost more labor than the full-automatic production line.
Maintenance period 1 year
One year warranty, during warranty, any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients.
