Description
SMT 6 zones relfow soldering oven
The technical parameter
|
Heating System |
Number of heating zones |
UP 6/BOTTOM6 |
|
Number of cooling zones |
1 |
|
|
Length of heating zones |
2500 MM |
|
|
Heating mode |
hot air |
|
|
Cooling Mode |
Force air |
|
|
Conveyor System |
Max. Width of PCB |
350 mm |
|
Mesh belt width |
400 mm |
|
|
Transmission Direction |
L→R(or R→L) |
|
|
Transmission Net Height |
880±20 mm |
|
|
Transmission type |
Mesh and chain |
|
|
Range of rail width |
0-300 mm |
|
|
Conveyor speed |
0-1500 mm/min |
|
|
Auto/manual Lubrication |
standard |
|
|
Upper hood method |
Manual(option:auto) |
|
|
Fixed rail side |
Front rail fixed(option: rear rail fixed) |
|
|
Components high |
Top and bottom 25mm |
|
|
Control system |
Power supply |
5 line 3 phase 380 V 50/60 Hz |
|
Total power |
28 kw |
|
|
Starting power |
28 kw |
|
|
Normal power consumption |
4 KW |
|
|
Warming time |
About 20 mins |
|
|
Temp. setting range |
Room temperature-300℃ |
|
|
Temp. control method |
PLC & PC |
|
|
Temp. control precision |
±1℃ |
|
|
Temp. deviation on PCB |
±2℃ |
|
|
Data storage |
Process Data and status storage(80GB) |
|
|
Nozzle plate |
Aluminum Alloy Plate |
|
|
Abnormal Alarm |
Abnormal temperature(extra-high/extra-low temp.) |
|
|
Board dropped alarm |
Tower light:Yellow-warming, Green-normal, Red-abnormal |
|
|
General |
Dimension(L*W*H) |
3600×1000×1490 mm |
|
Weight |
700 KG |
|
|
Color |
Computer gray |
SMT 6 zones relfow soldering oven
The features
1. The unique advanced long life heating system
(1)The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The peak wave length of the radiation power is 4UM with curved surface reflector to the rising temperature speed, improve the thermal efficiency. And the special forced-air circulation system make PCB and the component heated uniform and eliminate the “shadow effect” completely .
(2)Using special high temperature resistant protection system in heating preservation system and special iron in furnace .
(3)Using imported Taiwan SanYue long axis of high temperature fan motor and W shaped heat pipe, Model design, no noise, shockless and easy for maintenance .
2. Smooth and reliable transmission system
(1)The transmission system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth ,speed range can be arrived at 0-1500mm/min.
(2)Independent wheel structure support and match stainless belt to make the running smoothly and the speed precision is up to ±20 mm/min .
(3)Special stainless belt: durable and wear-resistant, not easy to deform and long life.
3. Stable and reliable electrical control system
(1)adopts imported thermostat control which owns fuzzy control and PID intelligent precision control system.
(2)can fast response the changes in external heat and ensure more temperature balanced by PID intelligent operation and automatic control heating .
(3)Use thermocouple imported from Taiwan by each temperature zone, can fast and sensitive induct the changes in each temperature zone,
Special SSR solid state relay matched with dedicated radiator improve the heat efficiency greatly and prolong the lifetime effectively.
4.Power is abundant, heat up fast, it’s only need 20 minutes from room temperature to constant temperature.
5.Failure diagnosis and sound light alarm.
6.Delay shutdown production function, uniform cooling after the shutdown: prevent component deformation.
Company introduction
1.Company profile
(1)Shenzhen ETON automation equipment CO.,Ltd. was founded in 2011 and Jiangxi Intelligent industrial Park was used in 2020. So far, ETON has more than 11 years experience.
(2)ETON is the leading manufacturer of global photoelectric high speed pick and place machine and enjoys a good reputation around the world.
(3)The produces have exported more than 20 countries and regions, including Egypt, India,Turkey, Russia, Brazil, South Africa and so on.
(4)ETON has five level management policy:sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
(5)ETON also keep “no worries” after-sales service, and the products are supported to personal customization, specialist sale always track the production and transportation of equipment.
Production
ETON is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machine and SMT peripheral automation equipment.
Three series pick and place machine

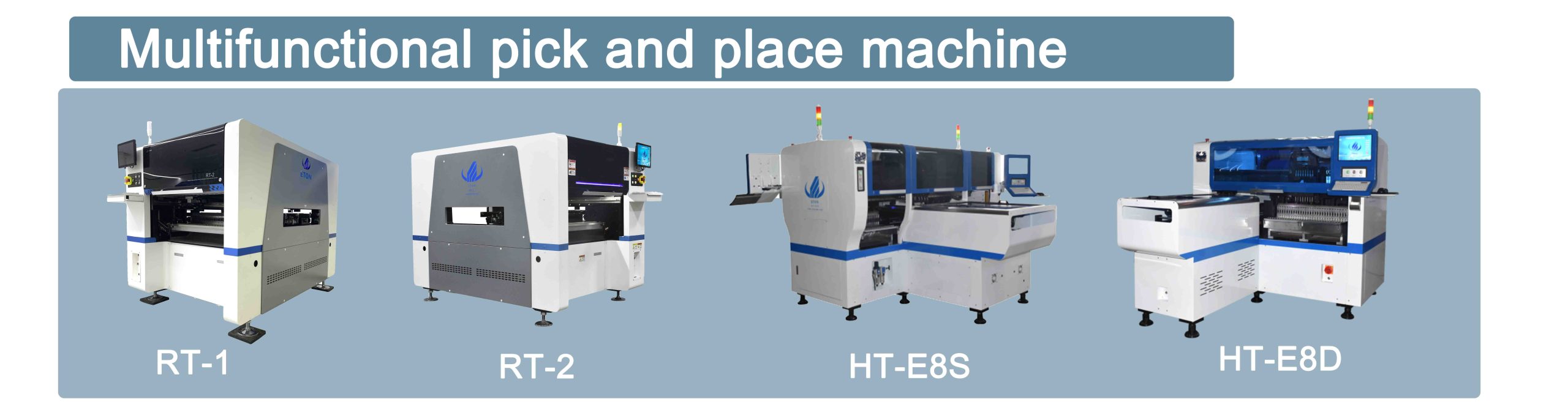

(1)multi-function pick and place machine:
apply for all kinds of products, including electric board, power driver, display, bulb, DOB, down light and so on.

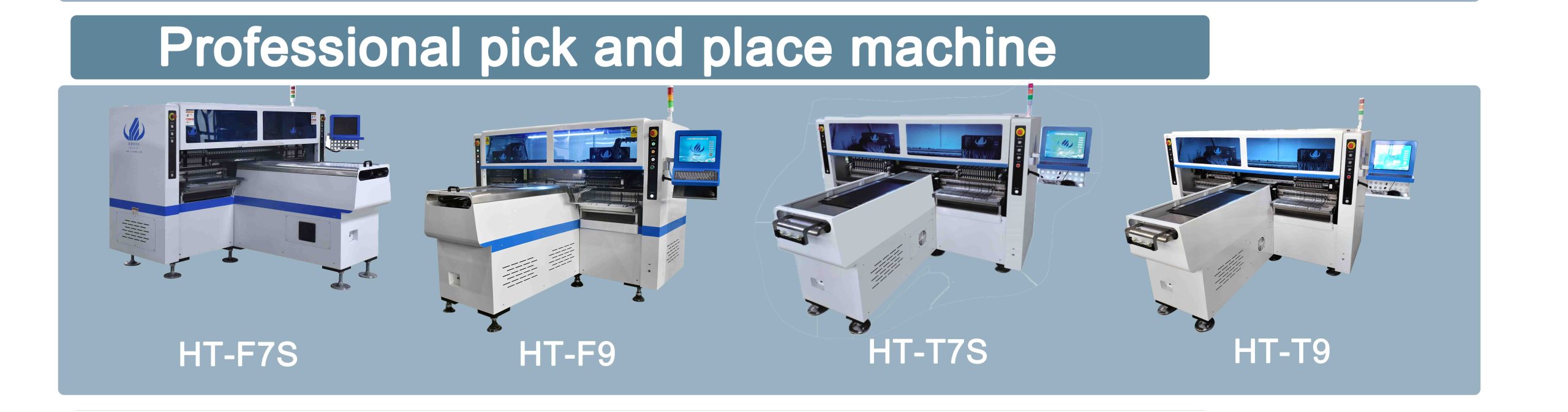

(2)high-speed pick and place machine:
Apply for linear products, including tube, 1M, 5M, 10M or any length of LED flexible strip, the fastest mounting speed reach 500000 CPH
(3)ETON HONOR series:
The minimum mounting component is 0201, add new parts: IC tray feeder, docking cart and smart double head tape feeder. Improve the production efficiency

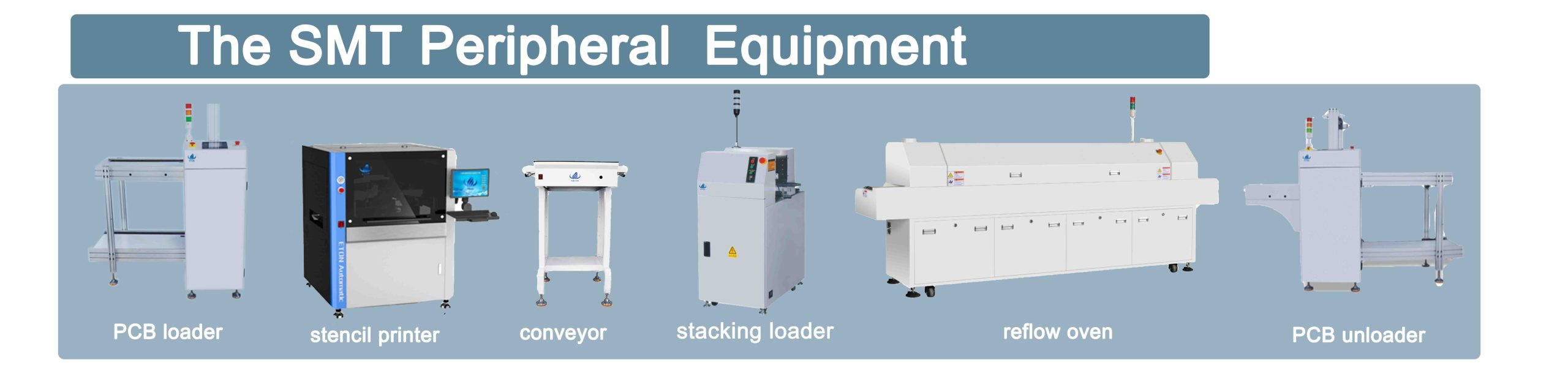

(4)SMT peripheral automation equipment:
loader, stencil printer, conveyor, reflow oven unloader, translational conveyor and so on.
FAQ
1.Do you provide the complete production line machine?
Yes, of course. We provide the whole production line machine, including solder paste printer machine, conveyor, pick and place machine reflow oven.
2.How about the operating software?
Our software is R&D independently by ourselves.
3.What about the mode of transport?
Both sea, air and road are OK.
4.How about the operation software language of the machine?
Our software are Independent R&D by ourselves with 2 language( English and Chinese).
5.What’s the terms of payment?
T/T is OK. You can choose FOB Shenzhen.
