SMT Machine Automatic 34 Heads  High-speed Led light Maker

1. Magnetic linear motor and servo motor professional high speed pick and place machine, produce 2 – 4 different types of materials at the same time.

2. 34 PCS of heads, 68 PCS of feeders station, two mounting heads, each mounting head has 17 nozzles, Every mounting head can be mounted separately or synchronously.

3. HT- F7S has the function of calibration automatically and high precision. It is also available for RGB.

Description

Technical Parameter

Total weight:

1700 kg

Dimension

2700*2300*1550 mm

PCB length width

100*100 mm—1200*330 mm

PCB thickness

0.5-5 mm

PCB clamping

Adjustable pressure pneumatic

Mounting mode

Group to pick and group to place

No. Of camera

5 sets camera (digital camera)

Mounting height

≤5 mm

Power consumption

6 KW

X,Y,Z Axis drive way

High-end magnetic linear motor and servo motor

Feeding system

No. Of feeders station

68 PCS

No. Of head

34 PCS

Feeding way

Electric feeder with double motor

The feature of HT- F7S

1. Magnetic linear motor and servo motor professional high speed pick and place machine, produce 2 – 4 different types of materials at the same time.

2. 34 PCS of heads, 68 PCS of feeders station, two mounting heads, each mounting head has 17 nozzles, Every mounting head can be mounted separately or synchronously.

3. HT- F7S has the function of calibration automatically and high precision. It is also available for RGB.

4. the optimum capacity reach 180000 PCH, group to pick and group to mount mounting mode.

The parts

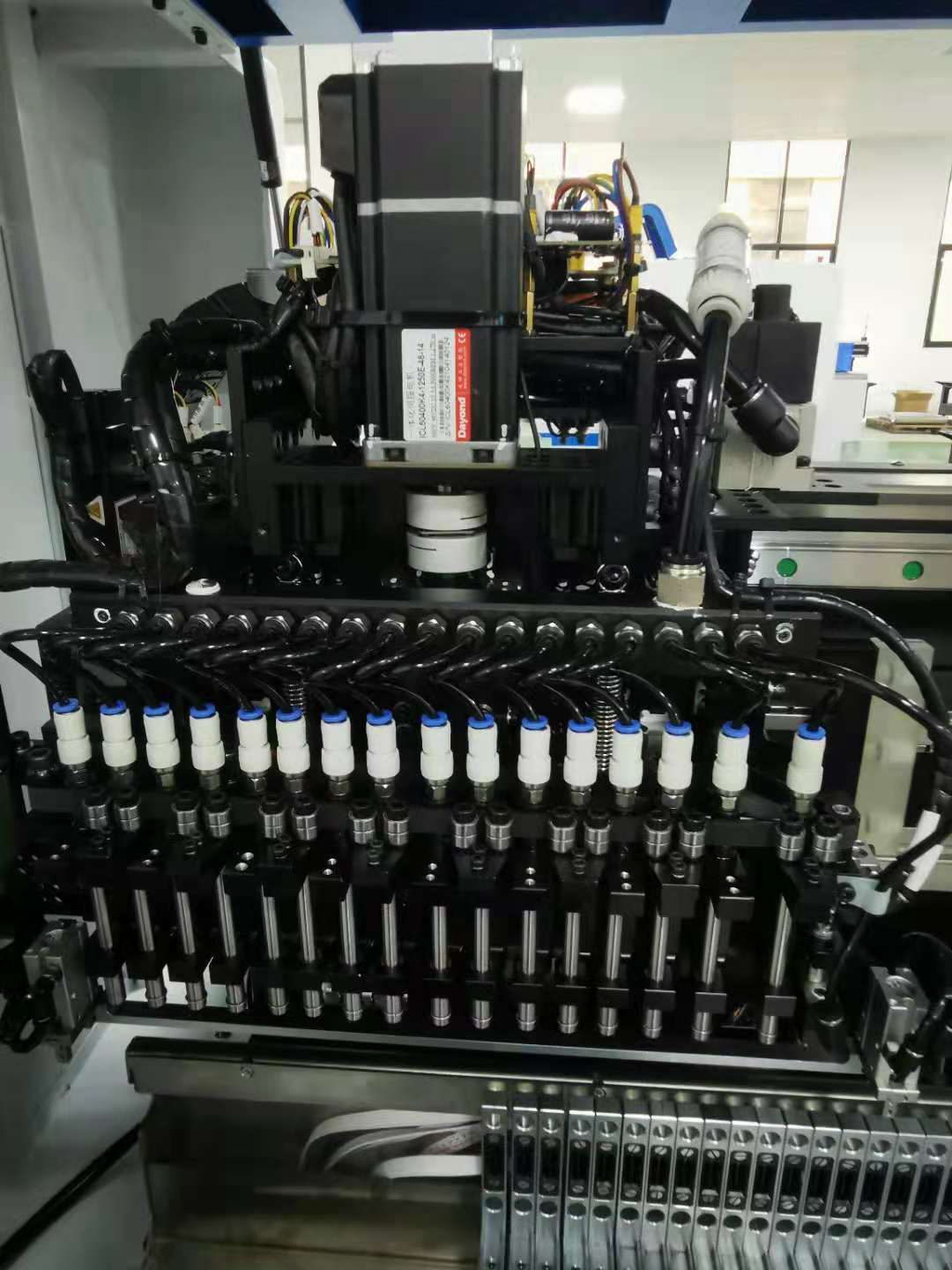

1. 68 feeders station, can produce 2 – 4 types materials at same time, available for LED 3014 / 3020 / 3528 / 5050 and resistors, capacitors, bridge rectifiers etc.Double mounting heads ,each head has 17 nozzles

2. Software is researched and developed independently by ETON company, it is also very easy to operate.

3. The guiding rail is used to support and guide the conveying platform to do high precision reciprocating movement in the specified direction.

Applications

HT-F7S is mainly available for 0.6 M, 0.9 M, 1.2 M rigid PCB and 0.5 M ,1 M LED flexible strip and apply to board with any proportion of LED chip and resistor. In addition, HT- F7S is also available for LED display, LED tube and other Linear products.

The SMT production line

Our company is very professional in the field of SMT industry , and we provide SMT related equipment and complete production line solution. For example HT-F7S, we will provide a semi automatic production line because of cost , practicability and other factor. The semi-automatic production line include semi automatic stencil printer, conveyor, reflow oven.

Client’s factory

Our products have a large market not only in China,but also has been exported to a number of countries and regions, including India, Turkey, Russia, Egypt, South Korea, Tunisia, Brazil, Vietnam, Iran and so on. Some of area has local engineers and provide install, debug and training door to door.

Maintenance period 1 year

  • One year warranty, during warranty, any parts that need to be repaired and replaced will be free.

Software and hardware lifetime maintenance

  • Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.

Visit customers regularly and gather information

  • Visit clients regularly. We attend the different exhibitions in different cities. every year, at the same time, we will visit local

clients and support our service and collect feedback on customer suggestions in time.

Provide the latest information about technology and equipment

  • We give professional technology suggestions to our clients. And share the updated news with our clients

On-site service

  • We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
  • According to your, needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
