SMT machine for flexible strip



  • Adjustable mounting head
  • Unique material leakage detection; Separate replenishment function
  • Ultra high speed mounting capacity
  • The width of the conveying platform can be freely adjusted according to different infinitely long soft light belt plates
  • Flexibly adjust the distance of the feeder mounting base to achieve group picking and group pasting, and realize the function of one pasting and two reclaiming
  • The maximum adjustable range of the feeder is twice that of the feeder, and can produce four kinds of materials at the same time
  • Intelligent feeder, which supports the electric intelligent feeder of high-speed special machine series
  • Flight identification function, without pause, detects whether there are components and the adsorption state of components to prevent installation errors
  • Automatic production of identification data, automatic correction function and replenishment function
  • Drive the clamping rod through the air cylinder to correct all the materials taken by the group
SKU: 926-3-3-2-1-1-1-1-2-2-1-2-1-1-1-3-1-1-2-1-2-1-1-1-2-1-1-1-2-3-1-1-1-1-1-1-1-1-2 Category:

Description

Technical parameter

PCB size

250(±10)mm* any length

PCB thickness

0.1-0.5 mm

PCB clamping

Vacuum adsorption, cylinder clamping, track width adjustable

Mounting way

Group picking and group placing

Mounting mode

Double-rail+four groups of placement heads

No. Of camera

10 sets of digital camera

Repeat precision

±0.05 mm

Mounting height

≦5 mm

Mounting speed

Double side: 500000 CPH, Single side: 250000 CPH

Components

LED 3014/ 3020/ 3528/ 5050 and resistor, capacitor, bridge rectifiers etc.

power

350 AC 50 Hz

Power consumption

9.6 KW

Electrical control

Independent research and development by ETON

Motion control card module 2 set

Independent research and development by ETON

Feeding way

Intelligent electric feeder with double motor

No. Of feeder station

Double side 136 PCS, Single side 68 PCS

No. Of head

Double side 136 PCS, Single side 68 PCS

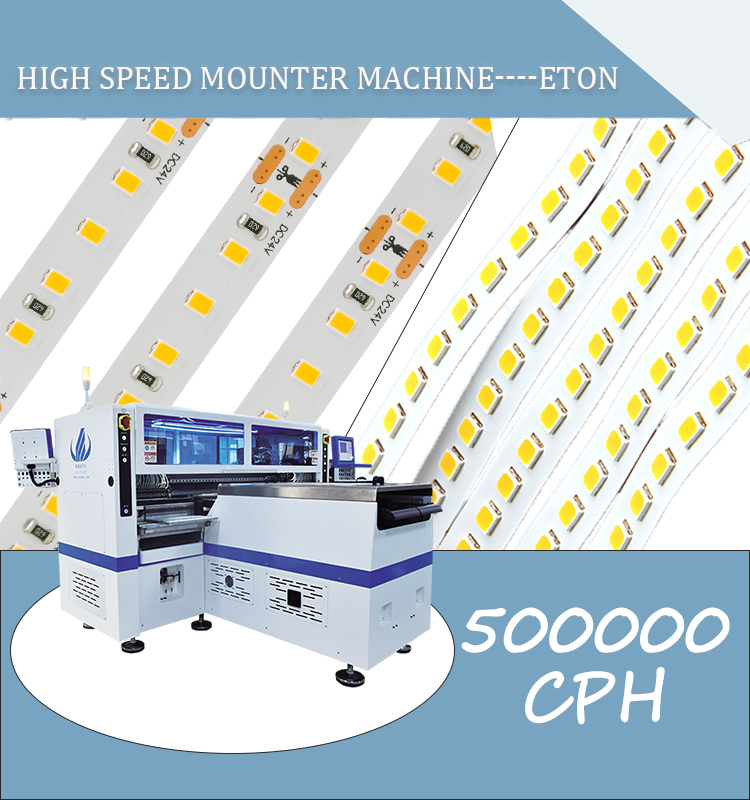

SMT machine flexible strip high speed 50W CPH

The feature of T9-2S

1. High speed mounting head with three characteristics, to achieve efficient feeding

 (1) ETON tech adjustable placement head:Components picking position can be adjusted according to PCB pad pitch, min 6.5mm. Apply to LED 3014/ 3020/ 3528/ 5050 resistor, capacitor, bridge rectifiers etc. The range of component is wide.

(2) Unique design component leaking detection and individual component refill function:The recognition camera record the component leaking position of PCB, and fill the missing components accordingly.

(3) Ultra high speed capacity: The placement head adopt the method of two times picking and once placing. The placement time greatly minimized with the improved placement way, excellent optimum capacity reach 500000 CPH.



2. Flexible support to production site



(1)Adjust the conveying platform according to various roll to roll strip, range 250±10mm, the max length range is 1M per cycle.

(2)The distance of feeder station can be flexibly adjusted to achieve group picking and group placing, so as to realize the function of two times picking and once placing

(3)The range of feeding station is double of placement head, can produce four kinds of materials at the same time

(4)Intelligent electric feeders, supporting high-speed machine series



3. Standard configuration of a variety of functions, to achieve high quality mounting



(1) Flight recognition camera, no pause to detect the presence or absence of components, component adsorption state, prevent placement error

(2) Automatic production with identification data, correction and fill missing component automatically

(3) The clamping rod is driven by the air cylinder to correct the materials taken by mounting head

(4) With the function of filling missing component automatically, realize industry 4.0 unmanned workshop

(5) Compliant with CE standard.

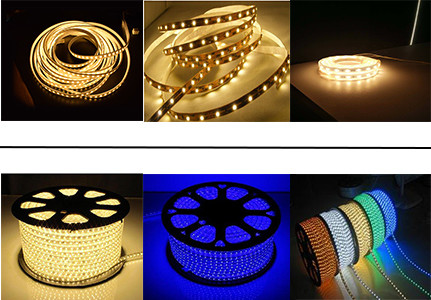

Suitable for roll to roll non-wireless LED flexible strips with infinite length

Maintenance period 1 year

One year warranty, during warranty, any parts that need to be repaired and replaced will be free.

Software and hardware lifetime maintenance

Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.

Visit customers regularly and gather information

Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.

Provide the latest information about technology and equipment

We give professional technology suggestions to our clients. And share the updated news with our clients.
