- Easy operation with Windows 7 system in Chinese and English language,
very convenient to use - 4 sets the high-resolution camera for accurate vision alignment correction
- a precision electric feeder with double motors
SMT mounter machine apply to LED lighting
Description
Technical parameter
|
PCB clamping |
pneumatic |
|
PCB thickness |
0.1-6mm(if＜0.6mm,need jig) |
|
No.of camera |
4 sets |
|
Mounting precision |
±0.04mm |
|
No.of heads |
20 PCS |
|
No.of feeders |
64 PCS |
|
Operating environment |
20℃-26℃ |
|
Power |
AC 380V |
Main features
l Double module can mounter two PCB board at the same time.
l High precision placement speed up to 80000 CPH.
l RT-2 can mounting LED chip,capacitors,resistors,IC,shaped components,etc.
l Four sets cameras:Vision alignment flight identification,Mark correction.

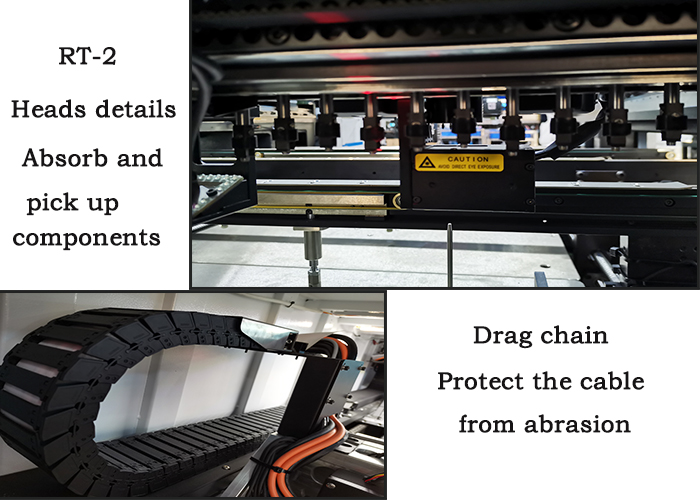

Product details
Solenoid valve
The role of the solenoid valve is to be able to interact with the system and manage the operations of
our head to move, pick, release, etc.

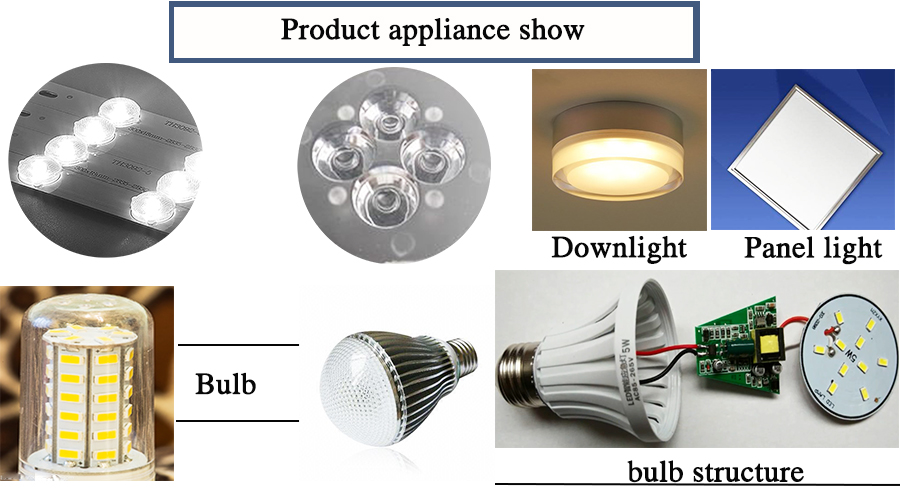

Product application
Double module 20 heads SMT mounter machine 80000 CPH
RT-2 is double module pick and place machine.It can mounter DOB,downlight,drive,bulb,street light,
circuit board and so on.
Maintenance period 1 year
One year warranty, during warranty, any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients.
