HT-F9 is dual arm four module,17 nozzles for each mounting part,part A/B/C/D can be mounter separately or synchronously.Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip. Producing with 4 types materials at the same time.with high capacity,avaible for board with any proportion of LED chip and resistor.
SMT mounter machine with LED strip lighting
Description
Machine main parameter
| Dimension | 2700*2300*1550mm |
| Total wight | 1700kg |
| PCB length width | 1200*330mm 100*100mm |
| PCB thickness | 0.5~5mm |
| mounting mode | group picking and separately placing |
| Mounting height | <=5mm |
| NO.of camera | 5PCS |
| Mounting speed | 200000~250000CPH |
| NO.of head | 68PCS |
| NO.of feeders station | 68PCS |
Dual arm LED highspeed SMT mounter machine with 68 nozzles
Product discription
HT-F9 is dual arm four module,17 nozzles for each mounting part,part A/B/C/D can be mounter separately
or synchronously.Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip. Producing with
4 types materials at the same time.with high capacity,avaible for board with any proportion of LED chip
and resistor.
Product application

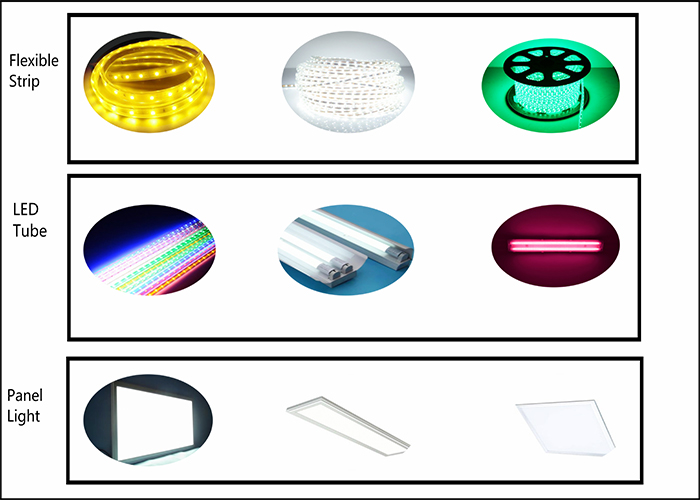

Mounted products: 0.6, 0.9, 1.2 meters hard light board, 0.5, 1 meter soft light strip, light tube, panel light, etc.
Main features
Mounting components: LED lamp beads (3014, 3020, 3528, 5050) or capacitors, resistors, bridge stacks, etc.
Mounted products: 0.6, 0.9, 1.2 meters hard light board, 0.5, 1 meter soft light strip, light tube, panel light, etc.

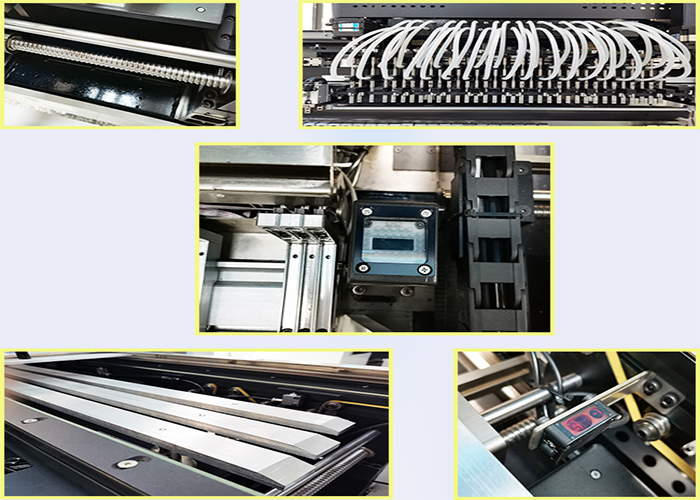

The magnetic levitation of the dual SMD heads, and the simultaneous production of 4 different materials does not affect the high production capacity.
No waiting for one-time placement under any lamp bead and resistor ratio.
Exclusive patented technology: group take group post.
Applicable PCB board size: MAX1200*330MM MIN 100*100MM
Maintenance period 1 year
One year warranty, during warranty, any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients.
