HT-E8S-1200 SMT pick and place machine has Tota12 heads
For led lights SMT pick and place machine HT-E8S-1200, the optimum mounting speed can reach 45000 CPH.
SMT mounting machine with LED flood lights
Description
Technical parameter
Parameter
|
No. of Camera |
2 sets of imported camera |
|
Vision for the flight identification, MARK correction |
|
|
Mounting Precision |
±0.04mm |
|
Mounting Height |
<15mm (Automatic Changing) |
|
Mounting Speed |
45000 CPH |
|
Components |
LED , capacitors, resistors, IC,shaped components, etc. |
|
Components Space |
0.2mm |
|
No. of Feeders Station |
28 PCS |
|
No. of nozzles |
12 PCS |
|
Power |
380AC 50HZ |
|
Power Consumption |
4 KW |
|
Operating Environment |
23℃±3℃ |
|
Conveyor transmission |
Max length :1200 mm |
|
Transmission Speed |
＞1000mm/sec |
|
Transmission Direction |
Both direction (option) |
|
Transmission Mode |
Auto online drive |
|
Air supply |
0.4-0.6mpa (4-6kgf/cm2)150N/min |
|
Electrical control |
Independent research and development by ETON |
|
X,Y,Z Axis Drive way |
High-end magnetic linear motor + Servo motor |
|
Feeding way |
Electric feeder with double motor |
Product Description
HT-E8S-1200 SMT pick and place machine has 12 suction nozzles and 28 feeders. The optimal production capacity can reach 45000CPH, which has obvious production capacity advantages in the same class of products in the market.
HT-E8S-1200 SMT pick and place machine two sets of cameras, mark correction, visual alignment.
Non-stop refueling system, saving refueling time
Powerful application function to meet all LED lamp production

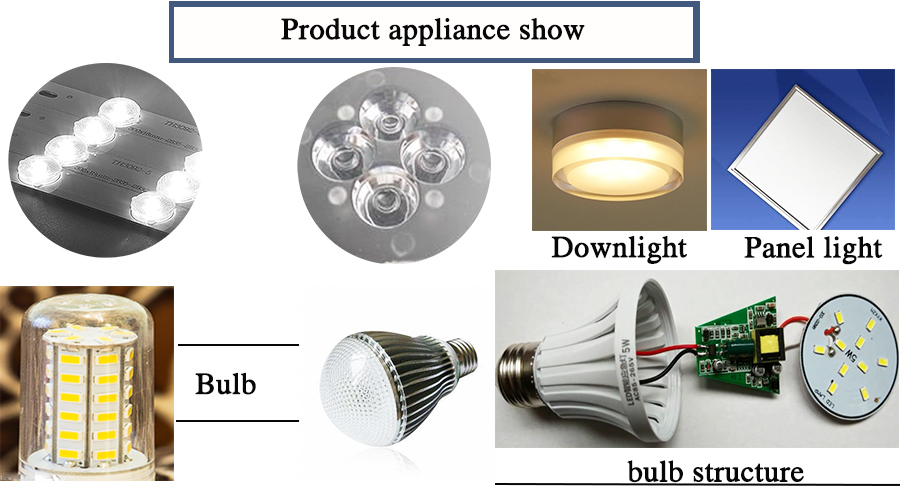

Appliance
HT-E8S-1200 SMT pick and place machine The minimum application SMD component size is 0402, the maximum is not more than 15mm, but we support customization, if there is a need, we will do our best to meet it.
HT-E8S-1200 SMT pick and place machine can not only be applied to all LED lights, but also can perfectly place drivers for home applications. ICs, resistors, capacitors, special-shaped components, etc.
Wiring
HT-E8S-1200 SMT pick and place machine can be flexibly wired, semi-automatic production line is the most common one, as well as combined wiring, production of lens lines and so on.
Maintenance period 1 year
- One year warranty, during warranty, any parts that need to be repaired and replaced will be free
Software and hardware lifetime maintenance
- Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates
Visit customers regularly and gather information
- Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time
Provide the latest information about technology and equipment
- We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
- We have some official site in India as Mumbai and New Delhi, also have site in Egypt. Turkey that can provide service timely with our engineers.
- According to your needs. dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
