- Easy operation with Windows 7 system in Chinese and English language,
very convenient to use - 2 sets the high-resolution camera for accurate vision alignment correction
- a precision electric feeder with double motors
SMT pick and place machine for high precision electric board
Description
The advantages and Feature of electric board SMT machine
Installed by vacuum sensing device, each placement has the function of independently detection
double module, each module 10 heads, total has 20 heads
the optimum placement speed reach 80000 CPH.
feeding way: docking cart, smart double head tape feeder, IC tray feeder
can mount the same large PCB at the same time, realizing flexible production
components:apply to 0201-40*40mm, improve recognition performance size up to 40*40mm, apply to BGA 0R CSP etc.
High speed and Multi modular head, no need to replace the mounting head
The Parameter of electric board SMT machine
|
Mounting speed |
80000 CPH(optimum speed) |
|
Components range |
Min 0201-40*40mm tape reel packages and IC tray feeder etc |
|
PCB size |
MAX size: 500*450mm(single PCB) 500*300MM(double PCB) MIN size: 50*50mm |
|
PCB thickness |
0.5-4.5mm |
|
No. Of feeder station |
Double side docking cart slot 32 PCS, tape reel packages : 64PCS(single side docking cart slot 16 PCS, tape reel package: 32PCS),freely switching between docking cart and IC tray feeder |
|
No. Of heads |
Double side: 20 PCS(single side: 10 PCS) |
|
Feeding way |
Intelligent double head feeder |
|
No. Of camera |
4 set (digital camera) |
|

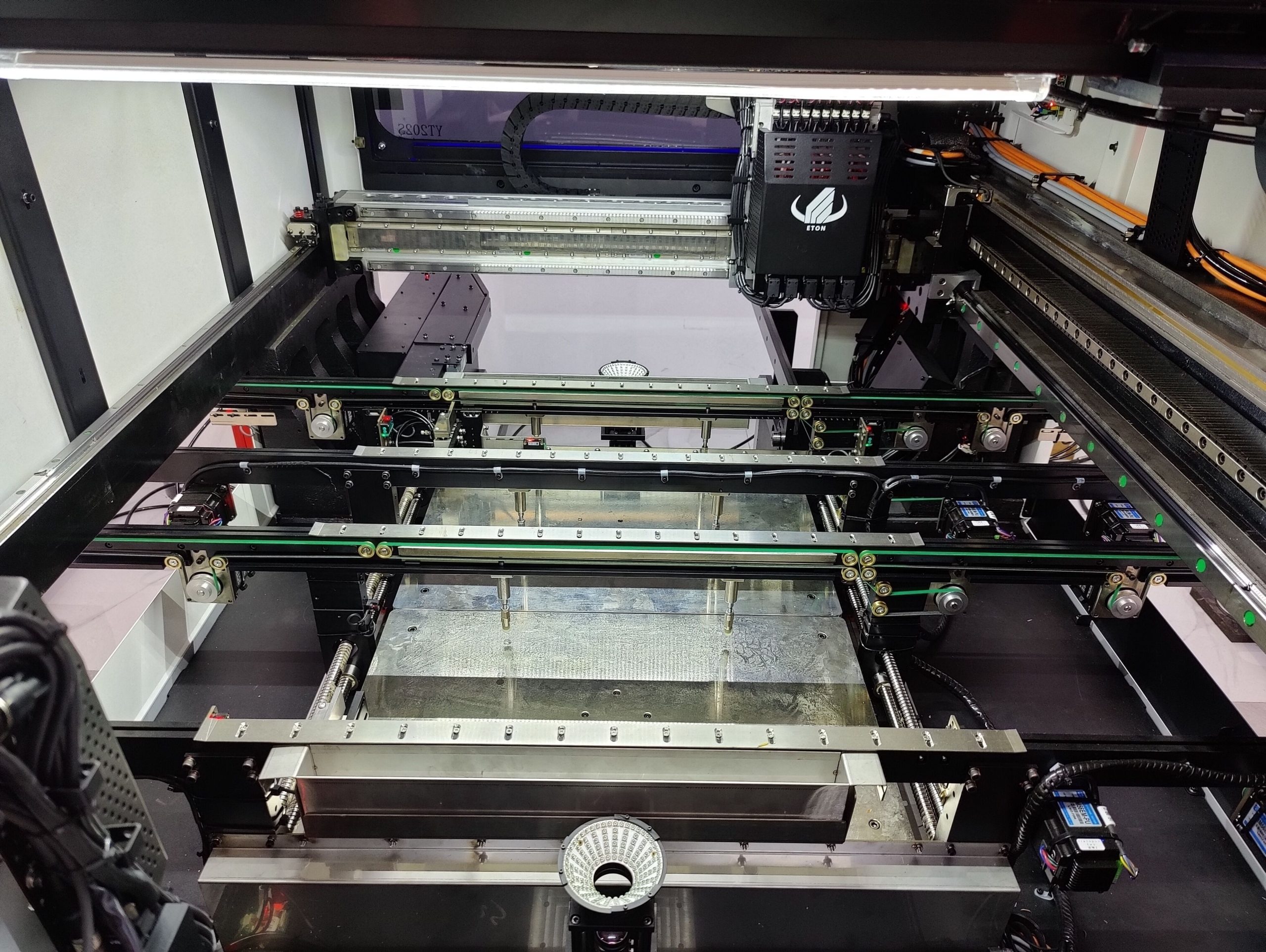

PCB clamping |
Cylinder clamping, track width adjustable |
|
system |
Windows 7 |
|
software |
R&D independently |
|
X,Y,Z Axis drive way |
High end magnetic linear motor+ servo motor |
The SMT production line of YT 202S SMT machine
For the semi-automatic line, it will be more cost saving and space,it does not need the automatic line so much equipment, in addition, the semi-automatic line is relatively flexible, and can be carried out at the same time with manual insertion.
Company introduction
we set up the Taipei R&D Center In 2007 and started the research and development of LED SMT technology and patents. Our machines are produced and manufactured by ourselves, we have strength R&D Team, the software is R&D independently by our R&D team. Moreover, in 2020, Jiangxi ETON Intelligent Park was put into use. 52000 square meters, 7 big buildings, and more than 500 staffs.
Certificates
Client’s factory shows
Maintenance period 1 year
- One year warranty, during warranty, any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
- Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
- Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
- We give professional technology suggestions to our clients. And share the updated news with our clients.
On-site service
- We have some official site in India as Mumbai and New Delhi, also have site in Egypt. Turkey that can provide service timely with our engineers.
- According to your needs. dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
