- Easy operation with Windows 7 system in Chinese and English language,
very convenient to use - 4 sets the high-resolution camera for accurate vision alignment correction
- a precision electric feeder with double motors
SMT pick and place machine for led lighting
Description
Technical parameter
Main parameter
|
PCB size |
Max size:500mm*450mm(single PCB) 500mm*300mm(double PCB) Min size: 50mm*50mm |
|
PCB thickness |
0.5-4.5mm |
|
PCB clamping |
Cylinder clamping, track width adjustable |
|
Rail |
2 Rail,2 gantries(Rail 1,4 are fixed rail |
|
Repeat precision |
± 0.02mm |
|
No. of camera |
4 sets |
|
Mounting speed |
80000CPH(Optimum speed) |
|
Components range |
Min 0201 ~40*40mm Tape reel packages and IC tray feeder etc. |

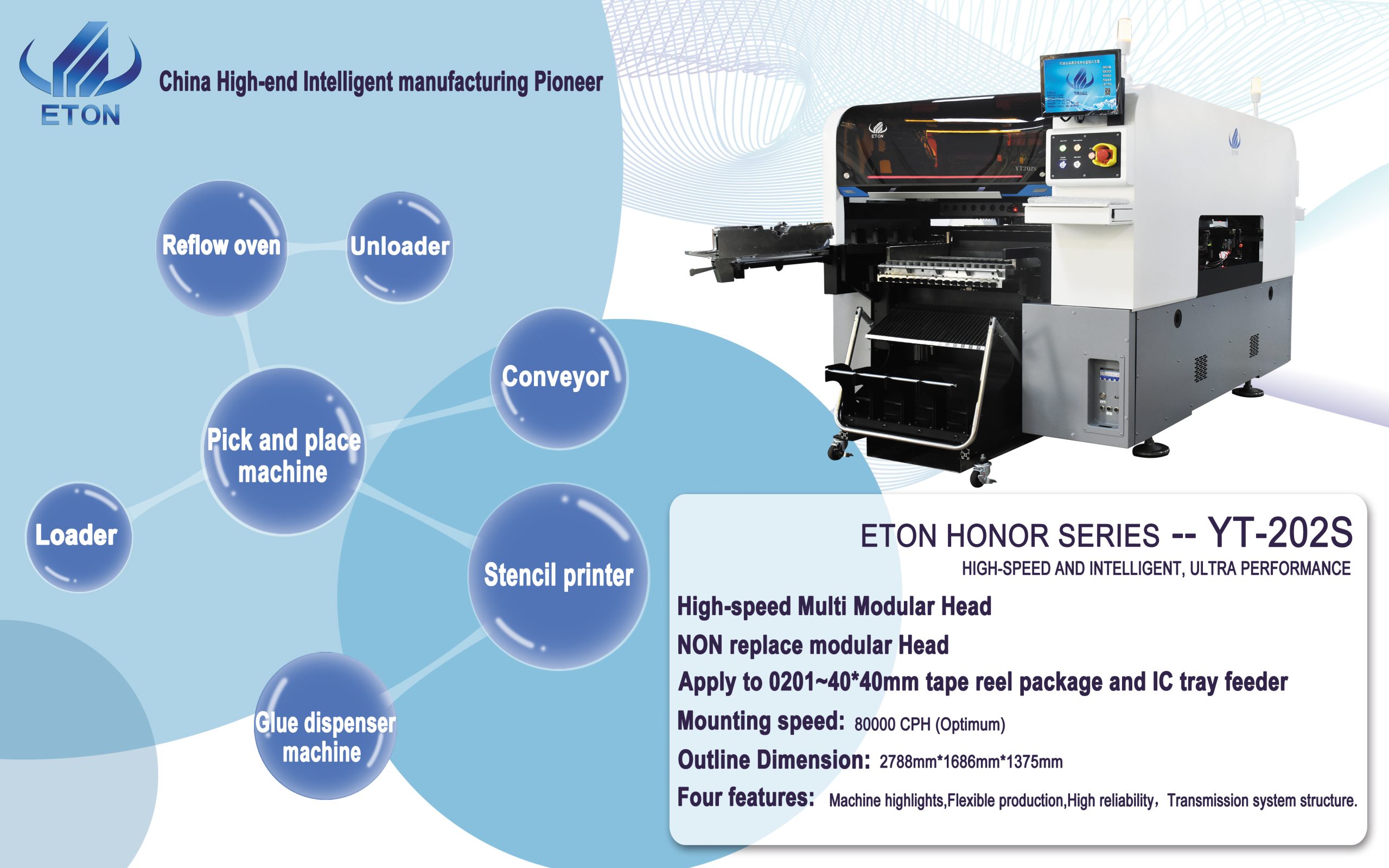

High-speed machine pick and place machine for led lighting
Production Introduction

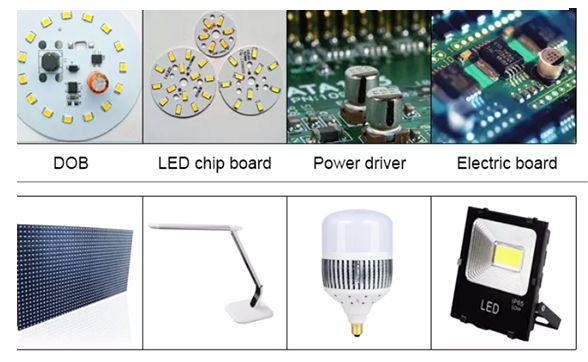

YT202S SMT pick and place machine is a 90000CPH high-speed machine placement machine, suitable for circuit boards,
displays, drivers, lenses and various lamps. The minimum mountable size is 0202mm. It has
both high speed and versatility to achieve super practicability in the same class of products.
Main features
-
it is multifacution SMT pick and place maachine that can be used to produce a variety
of products
-
Apply to high accuracy circuit boards, displays, drivers, lenses and various lamps
-
Double rail structure, can mount the same large PCB board with both arms at the same
time, realize flexible production
-
Off-line programming.save time of changeover cycle.
-
Software Al intelligent learning function and automatic optimization function.
Maintenance period 1 year
One year warranty, during warranty, any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients.
