- Easy operation with Windows 7 system in Chinese and English language,
very convenient to use - 4 sets the high-resolution camera for accurate vision alignment correction
- a precision electric feeder with double motors
SMT pick and place machine LED floodlights
Description
Technical parameter
|
PCB size |
Double rail: Max size: 450*300mm Min size: 80*80mm |
|
Single rail: Max size:450*540mm Min size: 80*80mm |
|
|
Mounting speed |
80000CPH |
|
No.of heads |
20 PCS |
|
No.of feeders station |
84 PCS |
|
PCB clamping |
pneumatic |
|
No.of camera |
4 sets |
|
Components space |
0.2mm |
450*300MM double rails 20 heads 84 feeders LED lights pick and place machine
Product description

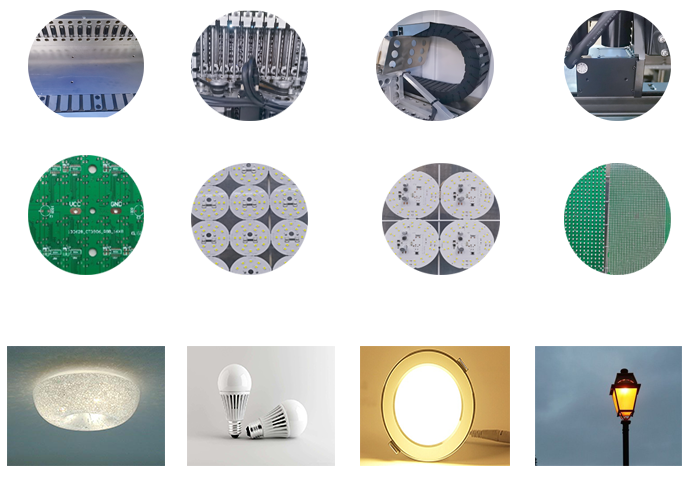

- Multifunctional is that this product can be applied to a variety of LED lamps.such as bulb, DOB, IC, drive, panel lamp, street lamp, ceiling lamp, etc; At the same time, we can also mount components of different sizes, such as lamp beads, resistors, capacitors, IC, special-shaped components, etc. the minimum range of mounting components is 0402 and the maximum height of mounting components is 15mm. If customers need it, we also have customized services to make your RT-2 mounter.
- High Capacity: RT-2, SMT pick and place machine, the fastest speed is 80000 Chip hour, In terms of making LED lamps, 80000cph production capacity is second to none among similar products in the market. For example, the ideal speed of Samsung sm471 is 75000cph, and the production capacity of sm481 482 is only 40000-43000cph. Compared with RT-1 under our company, one RT-2 is equivalent to two RT-1.
- High precision: Equipped with 4 sets of high-precision cameras, 2 sets of mark cameras and 2 sets of flight identification cameras. The mark camera adopts the latest three-color lighting recognition method of our company, which is applicable to any PCB board. It can be recognized even if the mark point of the PCB board is slightly oxidized. The flight identification camera identifies whether there is material leakage in the production process to ensure the accuracy of mounting.
Product application
Rt-2 model SMT pick and place machine is used in bulb, DOB, panel lamp, ceiling lamp and other products.
Maintenance period 1 year
One year warranty, during warranty, any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients.
