- Easy operation with Windows 7 system in Chinese and English language,
very convenient to use - 5 sets the high-resolution camera for accurate vision alignment correction
- a precision electric feeder with double motors
SMT placement machine with LED strip
Description
Technical parameter
Parameter
|
MAX PCB size |
1200*330mm |
|
PCB thickness |
0.5-5mm |
|
PCB clamping |
Adjustable pressure pneumatic |
|
Mounting speed |
150000-180000CPH |
|
Mounting height |
≤5mm |
|
Components space |
0.5mm |
|
Transmission speed |
＞500mm/sec |
|
Transmission mode |
Online drive |
Product description
|
1. This model is equipped with correction function, 34 suction nozzles and 68 feeders station. The feeding mode is double motor electronic feeder.
|
|
2. The maximum size of PCB board is 1200 * 330mm and the minimum is 100 * 100mm. The thickness of PCB board is 0.5-5mm. Multiple screw rods work together, and servo motor and angle motor ensure accuracy.
|
|
3. 180000cph can be achieved under the condition of optimal production capacity, and the components that can be installed are led3014 / 3020 / 3528 / 5050 resistors, capacitors, bridges rectifiers, etc
|
O.S
- The system is windows7, which is simple to operate and easy to use.
- The display screen is a touch screen, which is more sensitive to give or edit instructions.
Feature

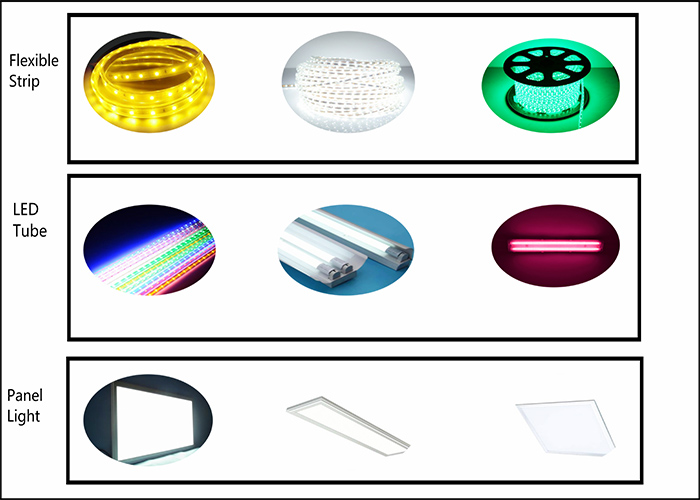

- Apply to the 0.6M to 1.2M hard PCB board, 0.5M to 1M soft led flexible strip, producing with 2-4 kinds of materials with high capacity.
- Two mounting modules, 17 nozzles for each mounting part, A/B are independent for each other.
- Can mount RGB.
- Exclusive patent technology: group to pick and group to mount.
Maintenance period 1 year
One year warranty, during warranty, any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients.
